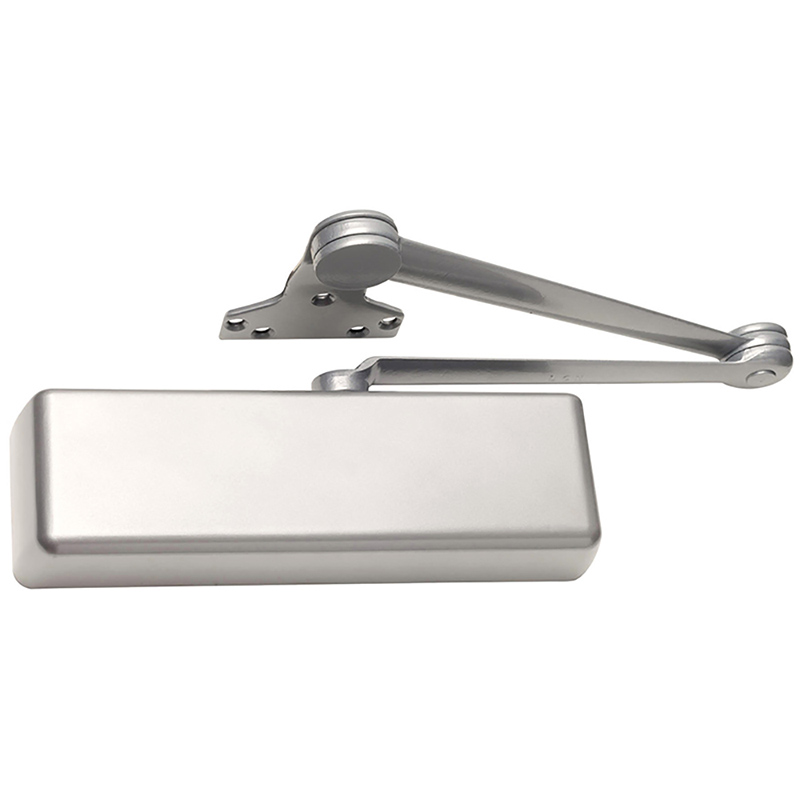

LCN 4040XP-EDA LH 689 MC TORX Heavy Duty Surface Closer ALLCN 4040XP-EDA LH 689 MC TORX Heavy Duty Surface Closer AL is engineered for high-traffic environments, offering exceptional durability and performance. This Grade 1 surface door closer features an extra-duty arm, designed for push-side mounting and capable of accommodating a 180-degree swing. With adjustable sizing from 1 to 6, it meets diverse application needs while ensuring compliance with ADA standards. Constructed with the strongest pinion ever-featuring a 3/4" journal diameter and the widest bearing at 5/8"-the LCN 4040XP is built to withstand heavy use and abuse. Its advanced V-shield™ seal extends the product's life by an impressive 20%. The closer can be installed on hinge side, top jamb, or parallel arm configurations, making it versatile for various door types. This model is equipped with self-tapping screws, a durable metal cover, and an aluminum painted finish in matte silver. It is UL and cUL listed for safety, ensuring reliability for self-closing doors without hold-open mechanisms. With a limited 30-year warranty, the LCN 4040XP sets a high standard for door hardware, making it an ideal choice for commercial applications that demand strength and reliability.
Heavy Duty Surface Closer AL
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Metal Cover, Torx Machine Screws, Aluminum Painted Finish, Left-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 180 Deg.
Delay: No
Finish: 689
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Pbs Options: 49,251,114,925,123
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12.6 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
