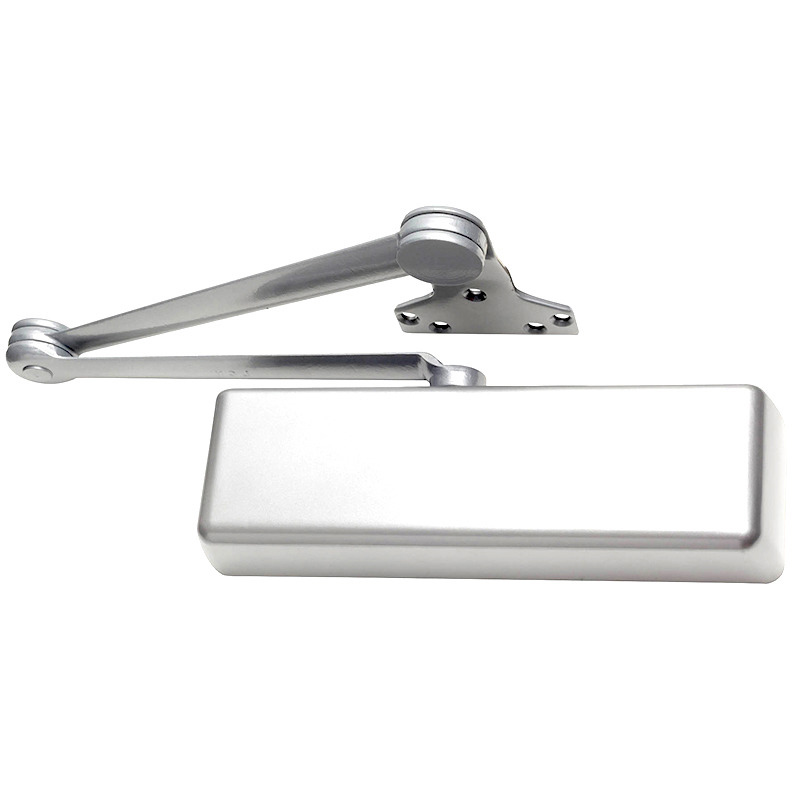

LCN 4040XP-EDA RH 651 Heavy Duty Surface Closer US26LCN 4040XP-EDA RH 651 Heavy Duty Surface Closer US26 is a Grade 1 surface door closer designed to excel in high-traffic environments, making it an ideal choice for institutional and commercial applications. With its extra duty arm and robust construction, this closer provides reliable performance and durability where it matters most. The 4040XP features a non-handed design that allows for versatile mounting options on right or left swinging doors, accommodating hinge side, top jamb, or parallel arm installations. An adjustable size range of 1-6 ensures compatibility with various door heights, while the push side mounting allows for a smooth operation with a 180-degree swing. This closer is built with a 3/4" journal diameter pinion, the strongest in its class, and an enhanced bearing load capacity, resulting in superior longevity. The innovative V-shield™ seal extends the closer's lifespan by 20%, and it operates seamlessly in all weather conditions, thanks to its all-weather fluid. UL and cUL listed for self-closing doors, the LCN 4040XP-EDA also meets ADA requirements, ensuring accessibility. Backed by a 30-year limited warranty, this closer is a smart investment for any facility seeking reliability and value.
Heavy Duty Surface Closer US26
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Metal Cover, Bright Chromium Plated Finish, Right-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 180 Deg.
Delay: No
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12.6 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
