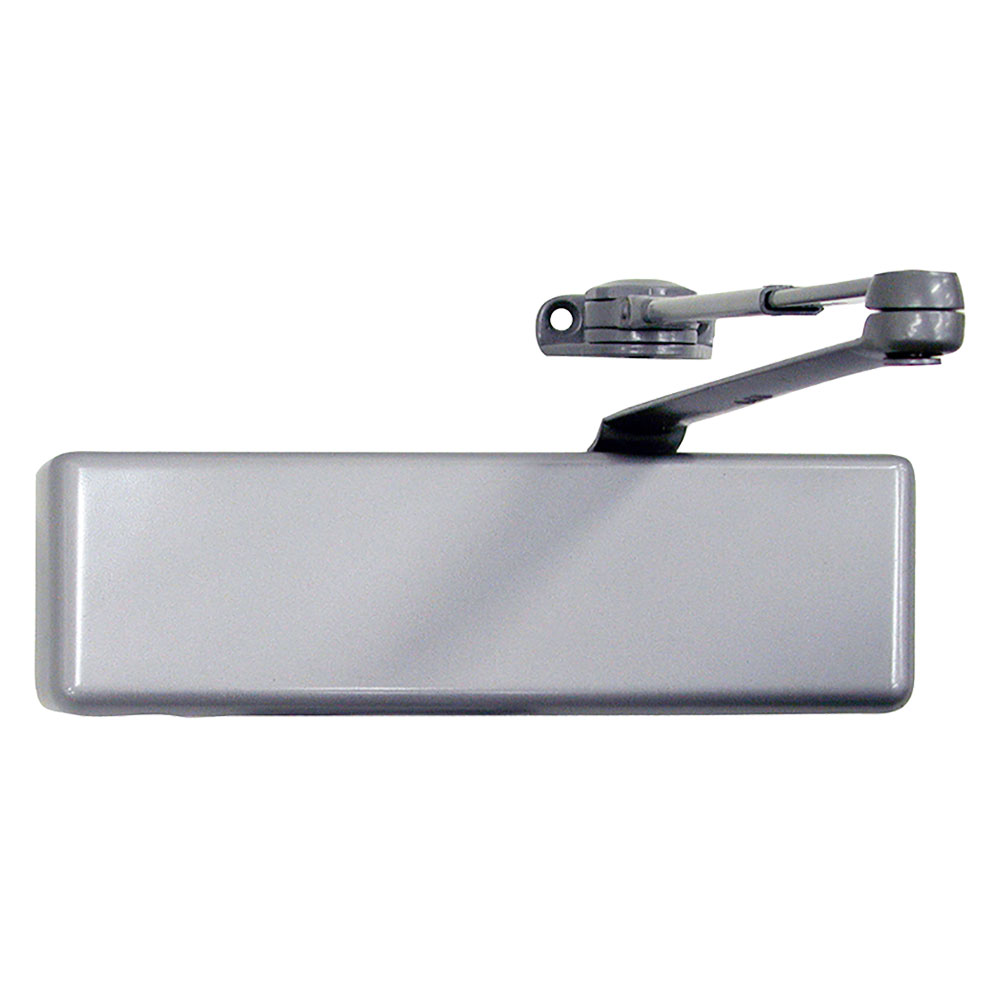

LCN 4040XP-H 689 Heavy Duty Surface Closer AL offers exceptional performance and durability, making it an ideal choice for high-traffic institutional applications. This Grade 1 surface door closer features a hold open arm and can be mounted on either the push or pull side, accommodating a generous 120-degree swing. With an adjustable size range of 1-6, it ensures versatility for various door types. Engineered for demanding environments, the LCN 4040XP boasts a robust design that exceeds industry standards. Key features include a 44% increased bearing load capacity and the strongest pinion ever produced at a 3/4" journal diameter. The innovative V-shield™ seal extends the lifespan of this closer by 20%, while all-weather fluid guarantees reliable performance in varying conditions. This non-handed closer meets ADA requirements and is UL & cUL listed, ensuring safety and compliance. Its easy installation process is enhanced by LCN® Fast™ Power Adjust technology. The durable aluminum painted finish not only provides aesthetic appeal but also long-lasting protection against wear and tear. With a 30-year limited warranty, the LCN 4040XP-H is a smart investment for any commercial door system, delivering strength, reliability, and remarkable value.
Heavy Duty Surface Closer AL
Grade 1 Surface Door Closer, Hold Open Arm, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Aluminum Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Hold Open Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Hold Open: Adjustable
Degree Swing: 120 Deg.
Delay: No
Finish: 689
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Regular
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 11.7 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Upc: 294836
