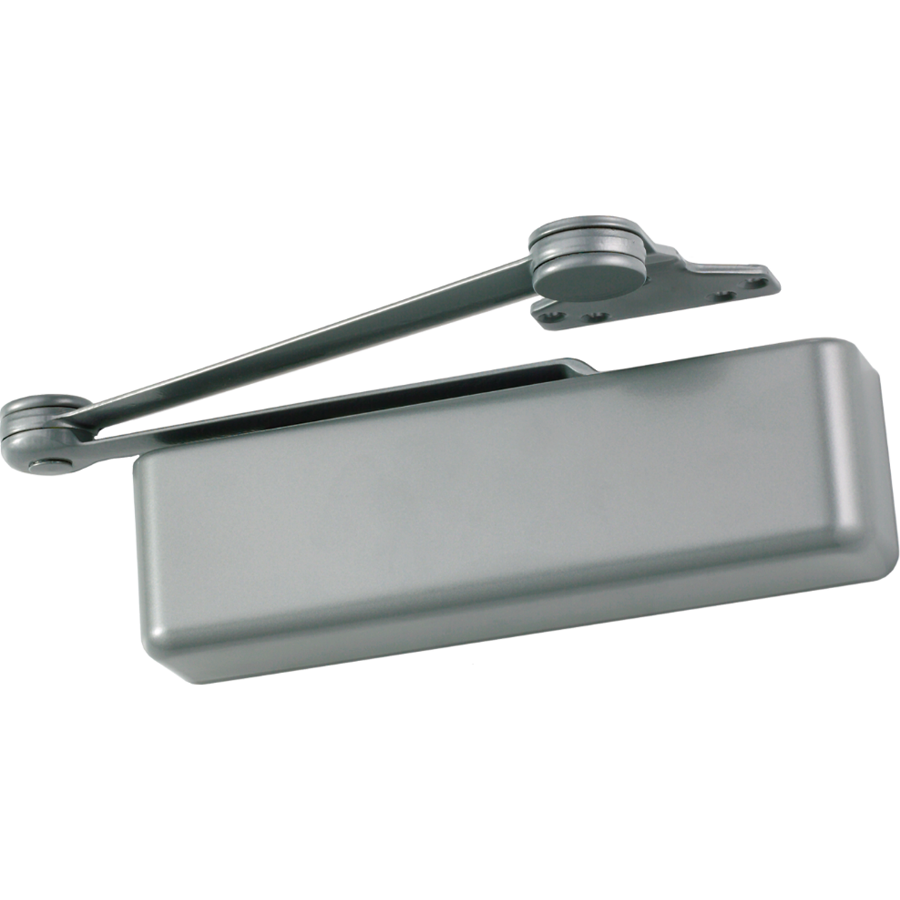

LCN 4040XP-HEDA-AL-LH Left Hand Heavy Duty Adjustable Surface Door Closer, Aluminum Finish

LCN 4040XPHEDAALLH Left Hand Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Hold Open Door Closer with Extra Duty Arms and TBSRT Thru Bolts features advanced engineering designed to perform in high-traffic environments such as schools, hospitals, and government buildings. This robust door closer is built to withstand rugged use while ensuring reliable operation. The LCN Green Dial simplifies spring power adjustments, eliminating guesswork and allowing for precise control. Constructed with solid forged steel for the main arm and forearm, it includes a spring-loaded stop in the soffit shoe for enhanced durability and functionality. The closer is adjustable to 5 feet for interior doors and 4 feet for exterior doors, making it versatile for various applications. Measuring 12-1/4" x 2-1/4" x 3-1/2" and finished in a sleek aluminum (code 689), this left-hand closer combines strength with aesthetic appeal. Designed for surface mounting, it features a 1" diagonal mounting hole pattern with 2-1/4" spacing, ensuring a secure installation. Backed by a limited 30-year warranty, the LCN 4040XPHEDAALLH is UL 10C rated, providing peace of mind in safety and security while offering a reliable solution for any commercial setting.

Left Hand Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Hold Open Door Closer with Extra Duty Arms and TBSRT Thru Bolts 689 Aluminum Finish

LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.

• 44 percent increased bearing load capacity
• Strongest pinion ever- at 3/4" journal diameter
• Widest bearing ever- at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20 percent longer life
• XP = eXtra Protection in real world applications
• Cast Iron Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Stop in the Soffit Shoe
• Solid Forged Steel Main Arm and Forearm with Spring Loaded Stop in Soffit Shoe
• For Rugged, High Traffic Applications
• LCN Green Dial to take the guesswork out of spring power adjustments
• Adjustable to 5' for Interior Doors and to 4' for Exterior Doors
