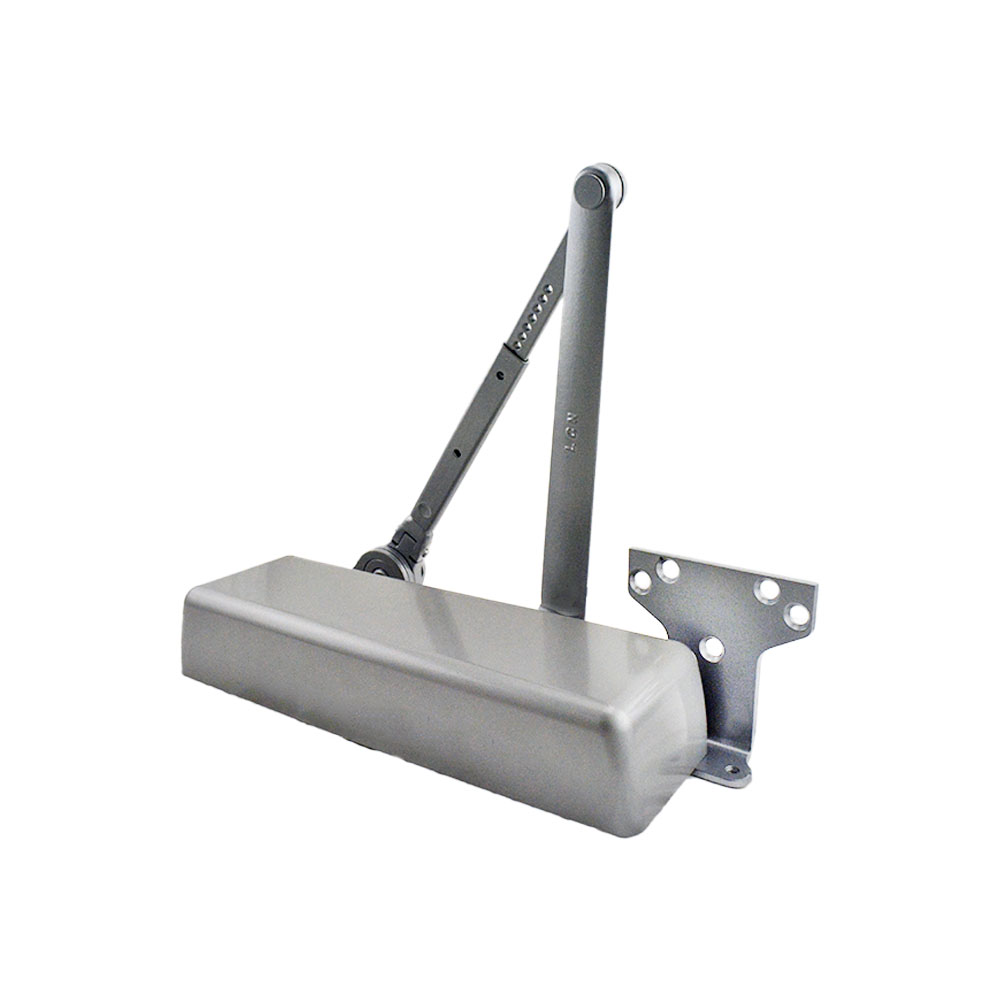

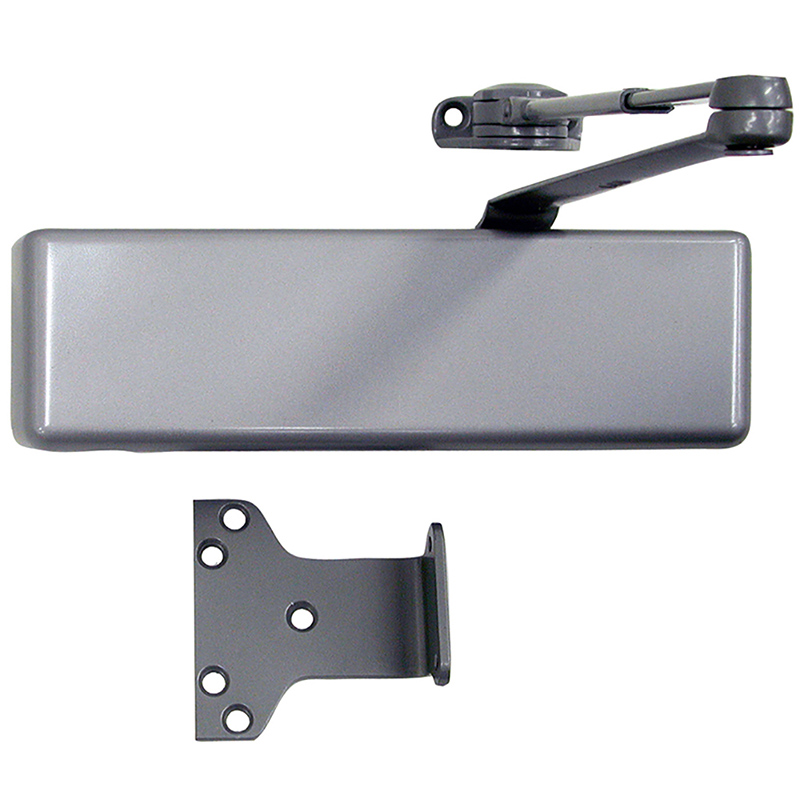

LCN 4040XPHWPAAL Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Hold Open Door Closer offers unparalleled performance for high-traffic environments. Designed specifically for rugged applications, this door closer is ideal for use in schools, hospitals, government buildings, and correctional facilities, ensuring reliable operation when it matters most. This model features the LCN Green Dial, simplifying spring power adjustments and removing the guesswork from installations. The solid forged steel main arm and forearm are equipped with a spring-loaded stop in the soffit shoe, enhancing durability and functionality. Adjustable to accommodate interior doors up to 5 feet and exterior doors up to 4 feet, the LCN 4040XPHWPAAL is versatile for various settings. With a sleek aluminum finish (Finish Code 689) and dimensions of 12-1/4" x 2-1/4" x 3-1/2", this surface-mounted closer combines aesthetic appeal with robust construction. It features a hold-open function and is UL 10C rated for safety. Backed by a limited 30-year warranty, the LCN 4040XPHWPAAL is a trusted choice for professionals seeking longevity and performance in door hardware solutions.
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
Attributes
Alternate Codes: 111532, 29484, 4040XP-HW/PA-AL, 4040XPHPAAL, 4040XPHWPAAL, 4041HPAAL, 813543, LCN4040XPHPAAL, LCN4041HPAAL
Arm Function: Hold Open
Arm Type: Regular Hold Open Arm
Baa Qualified: Yes
Back Check: Adjustable
Body Type: Cast Iron
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Clazz: LC
Closer Size: Non-Sized
Closer Type: Mechanical
Cold Weather Fluid: Yes
Color: Aluminum
Country of Origin: Usa
Cover: Plastic Cover
Cylinder Type: Standard
Degree Hold Open: Adjustable
Degree Swing: 120¼
Delay: No
Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Satin Aluminum
Finish Description: Aluminum Painted
Fire Rated: No
Function: Hold Open
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: Yes
Hold Open Type: Friction
Item Class Description: Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Hold Open Door Closer with Thru Bolts
Item Type Keyword: Closer
Limited Warranty: Limited 1 Year Warranty
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
Maximum Opening: 120°
Mounting: Hinge Side, Parallel Arm, Top Jamb
Mounting Group: Hydraulic
Mounting Hole Pattern: 1" Diagonal Mounting with 2-1/4" Spacing
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Number Of Inners: 1
Options: All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws
Order_ Qty: 1
PO date: 2024-09-18
Product Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Restrictions: None
Screw Type: Self Tapping
Series: 4040XP Series
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Spring Tension: Adjustable 1 - 6
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Through Bolts: Yes
Type: Surface
Ul Listing Type: UL 10C Rated
Upc: 043156589326
