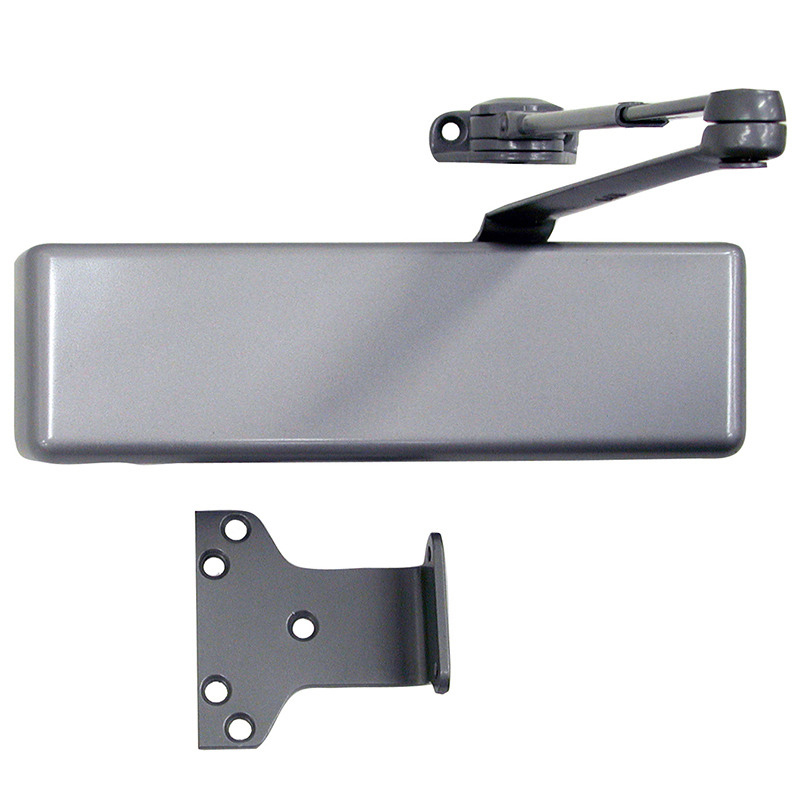

LCN 4040XP-Hw/PA LH 652 Heavy Duty Surface Closer US26D delivers a robust solution for high-traffic environments, combining strength and versatility in one exceptional design. This Grade 1 surface door closer is engineered for demanding applications, featuring a hold open arm and a PA shoe for flexible mounting on push or pull sides. With a 120-degree swing and adjustable size settings from 1 to 6, it accommodates various door types while ensuring reliable operation. Constructed with a satin chromium plated finish, the LCN 4040XP is built to withstand the rigors of heavy use. Its non-handed design allows for installation on either left or right swinging doors, and it meets ADA requirements for accessibility. The closer boasts an impressive 44% increase in bearing load capacity and features the strongest pinion ever, ensuring longevity and durability. Equipped with a new V-shield™ seal for extended life, along with all-weather fluid for performance in any condition, this closer is UL and cUL listed for self-closing doors. Backed by a 30-year limited warranty, the LCN 4040XP is your reliable partner in maintaining safety and accessibility in commercial settings.
HeavyDuty Surface Closer US26D
Grade 1 Surface Door Closer, Hold Open Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Chromium Plated Finish, Left-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 31.54
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Hold Open Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Hold Open: Adjustable
Degree Swing: 120 Deg.
Delay: No
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
