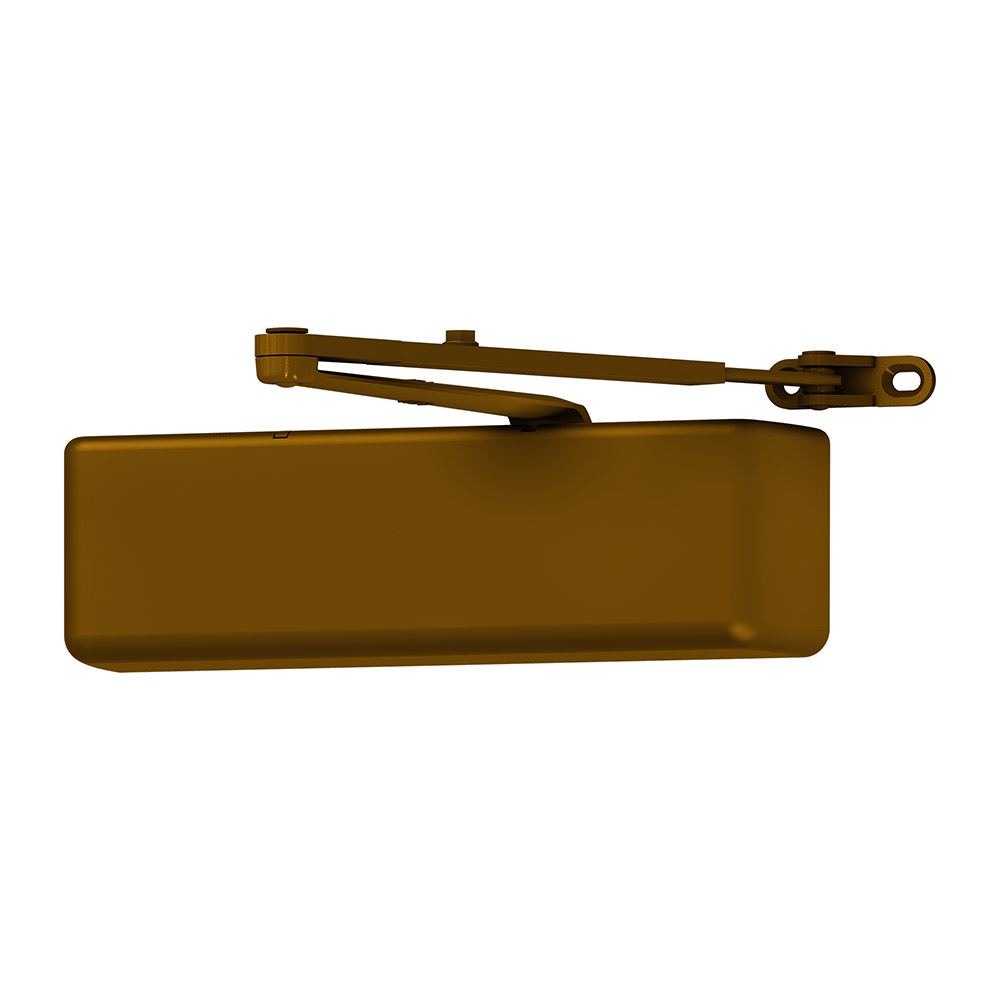

LCN 4040XP-REG 690 Heavy Duty Surface Closer STAT offers unparalleled durability and flexibility, making it the ideal choice for institutional and high-traffic environments. This Grade 1 surface door closer features a regular arm design, suitable for push or pull side mounting, and accommodates a generous 120-degree swing. With adjustable sizes ranging from 1 to 6, it ensures optimal performance across a variety of door configurations. Engineered for demanding applications, the LCN 4040XP boasts a robust design that exceeds industry standards. Highlights include an impressive 44% increased bearing load capacity, the strongest pinion ever with a 3/4" journal diameter, and a groundbreaking V-shield™ seal that offers 20% longer life. Constructed from cast iron and featuring a forged steel arm, this closer is built to withstand heavy use. The 4040XP is non-handed, allowing for versatile installation on either right or left swinging doors, and it meets ADA requirements for accessibility. With UL and cUL listings for self-closing doors without hold-open, this closer is perfect for commercial applications. Backed by a 30-year limited warranty, the LCN 4040XP-REG ensures reliability and value for years to come.
Heavy Duty Surface Closer STAT
Grade 1 Surface Door Closer, Regular Arm, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Statuary Bronze Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Swing: 120 Deg.
Delay: No
Finish: 690
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Regular
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
