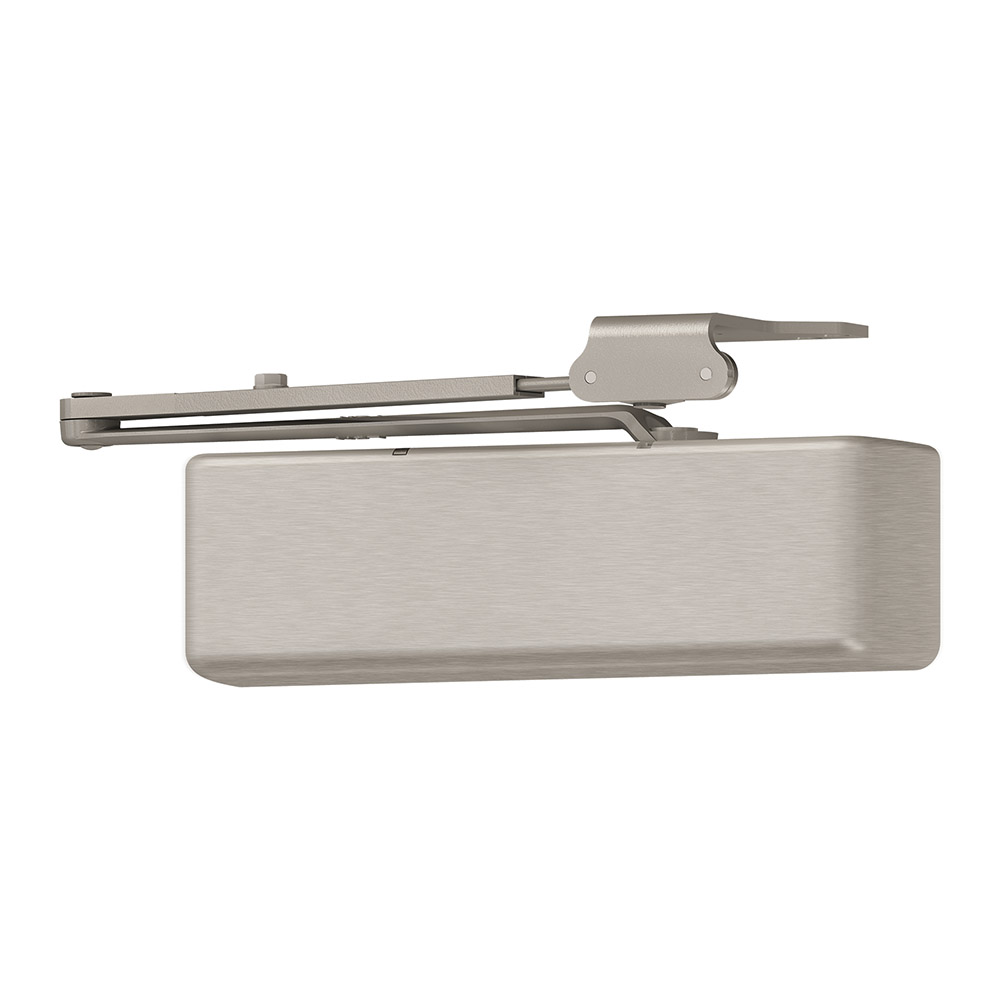

LCN 4040XP-Rw/PA LH 646 Heavy Duty Surface Closer US15 combines durability and versatility, making it an ideal choice for institutional and high-traffic environments. This Grade 1 surface door closer features a regular arm with a PA shoe, allowing for push or pull side mounting while accommodating a 120-degree swing. With adjustable sizes from 1 to 6, it ensures flexibility to meet various door specifications. Engineered for demanding applications, the LCN 4040XP showcases a robust design with a 44% increased bearing load capacity and the strongest pinion ever, featuring a 3/4" journal diameter. Its innovative V-shield™ seal extends operational life by 20%, while the non-handed design simplifies installation on either left or right swinging doors. Constructed with cast iron and forged steel, this closer is built to withstand heavy use, and its double heat-treated steel pinion enhances longevity. The all-weather fluid ensures reliable performance in diverse conditions. UL and cUL listed for self-closing doors, the LCN 4040XP meets ADA requirements and is compatible with all 4040 accessories. Available in a satin nickel-plated finish, this closer not only delivers exceptional performance but also adds a stylish touch to any commercial setting.
Heavy Duty Surface Closer US15
Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Nickel Plated Clear Coated Finish, Left-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 32.01
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 120 Deg.
Delay: No
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
