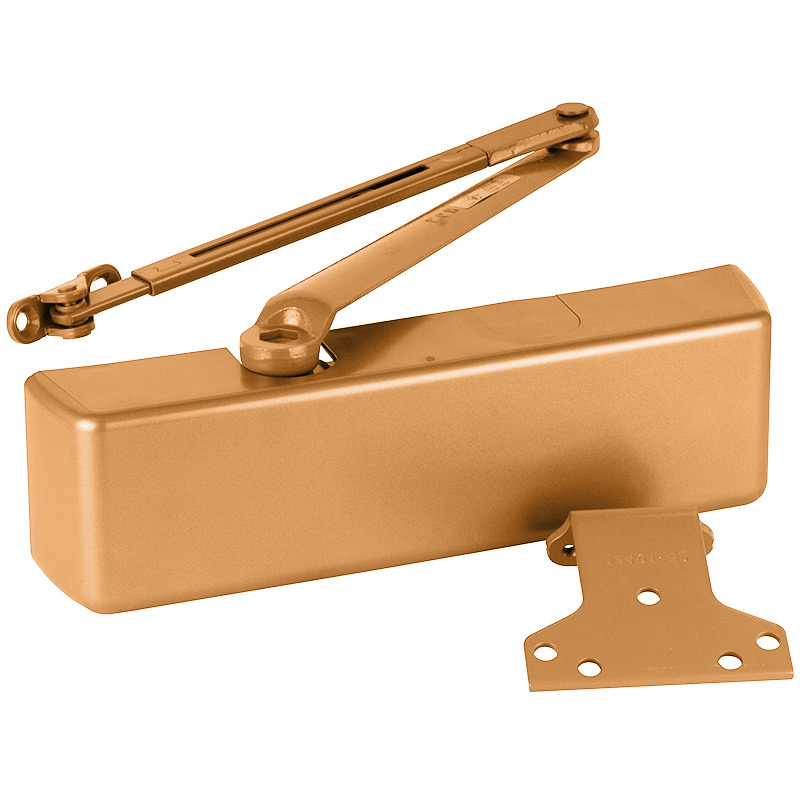

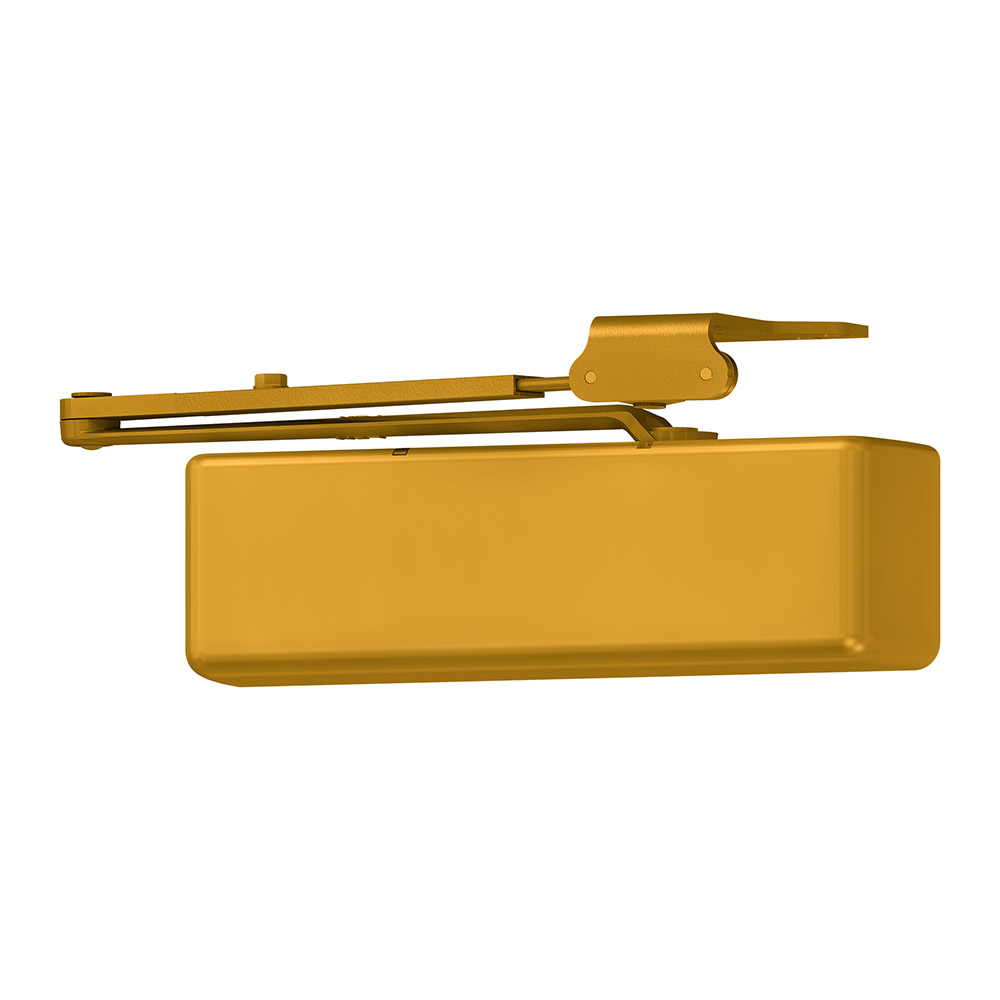

LCN 4040XPRWPALTBRZ Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Regular Door Closer with Thru Bolts 691 Light Bronze Finish
Attributes
Alternate Codes: 111537, 185632, 4040XP-RW/PA-LTBRZ, 4040XPPALBRNZ, 4040XPPALTBRNZ, 4040XPRW/PALTBRNZ, 4040XPRWPALTBRNZ, 4040XPRWPALTBRZ, 4041PALBRNZ, LCN4040XPPALBRNZ, LCN4040XPPALTBRNZ, LCN4040XPRW/PALTBRNZ, LCN4041PALBRNZ
Application: CM
Arm Function: Regular Arm w/Parallel Arm Shoe
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Body Type: Cast Iron
Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Clazz: LC
Closer Size: Non-Sized
Closer Type: Mechanical
Cold Weather Fluid: Yes
Color: Light Bronze
Country of Origin: Usa

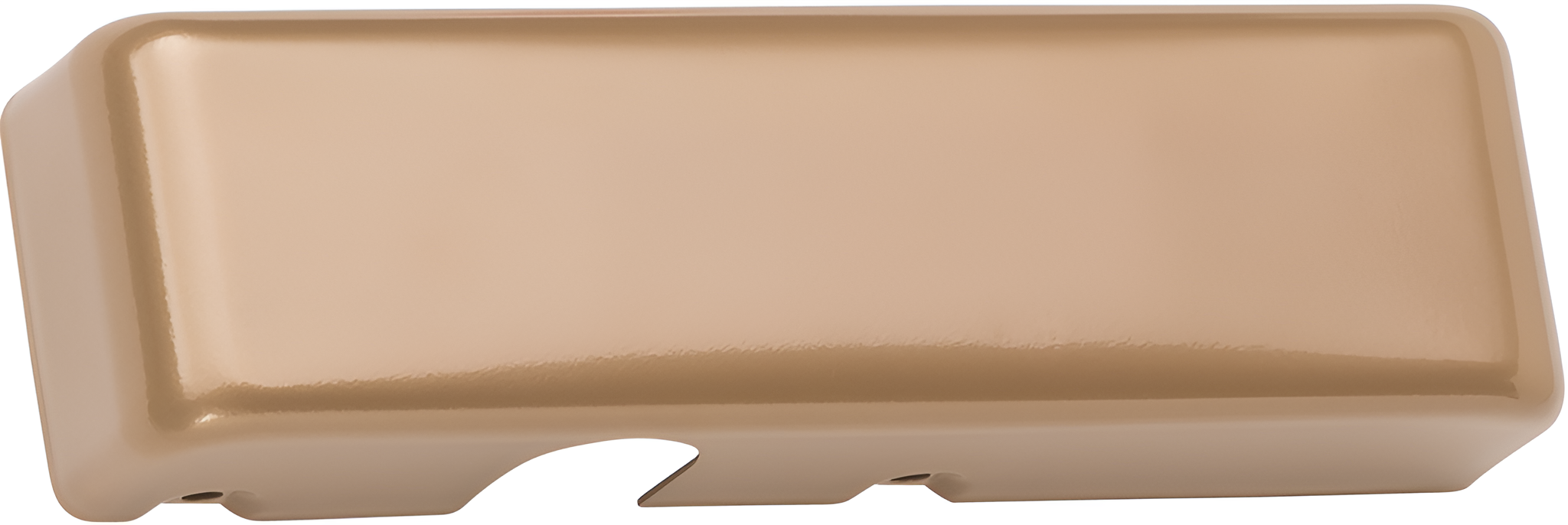

Cover: Plastic Cover
Cylinder Type: Standard
Degree Swing: 120¼
Delay: No
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Light Bronze
Finish Code: 691
Finish Color: Light Bronze
Finish Description: Light Bronze Painted
Fire Rated: 3 Hours {A}
Function: Regular
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hold Open: No
Item Class Description: Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Regular Door Closer with Thru Bolts
Item Type Keyword: Closer
Limited Warranty: Limited 1 Year Warranty
Manufacturer: LCN Closers
Material: Cast Iron, Hardened, Steel
Mounting: Hinge Side, Parallel Arm, Top Jamb
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Number Of Inners: 1
Options: All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws
Product Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Restrictions: None
Screw Type: Self Tapping
Series: 4040XP
Special Rust Inhibitor: No
Spring Size: 1-6
Spring Tension: Adjustable 1 - 6
Subtype: Surface Mount
Supplier: LCN
Through Bolts: Yes
Type: Surface
