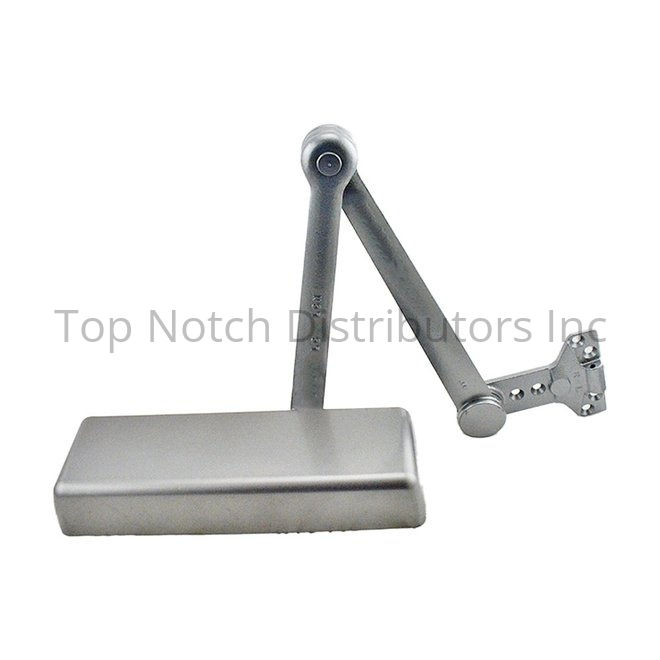

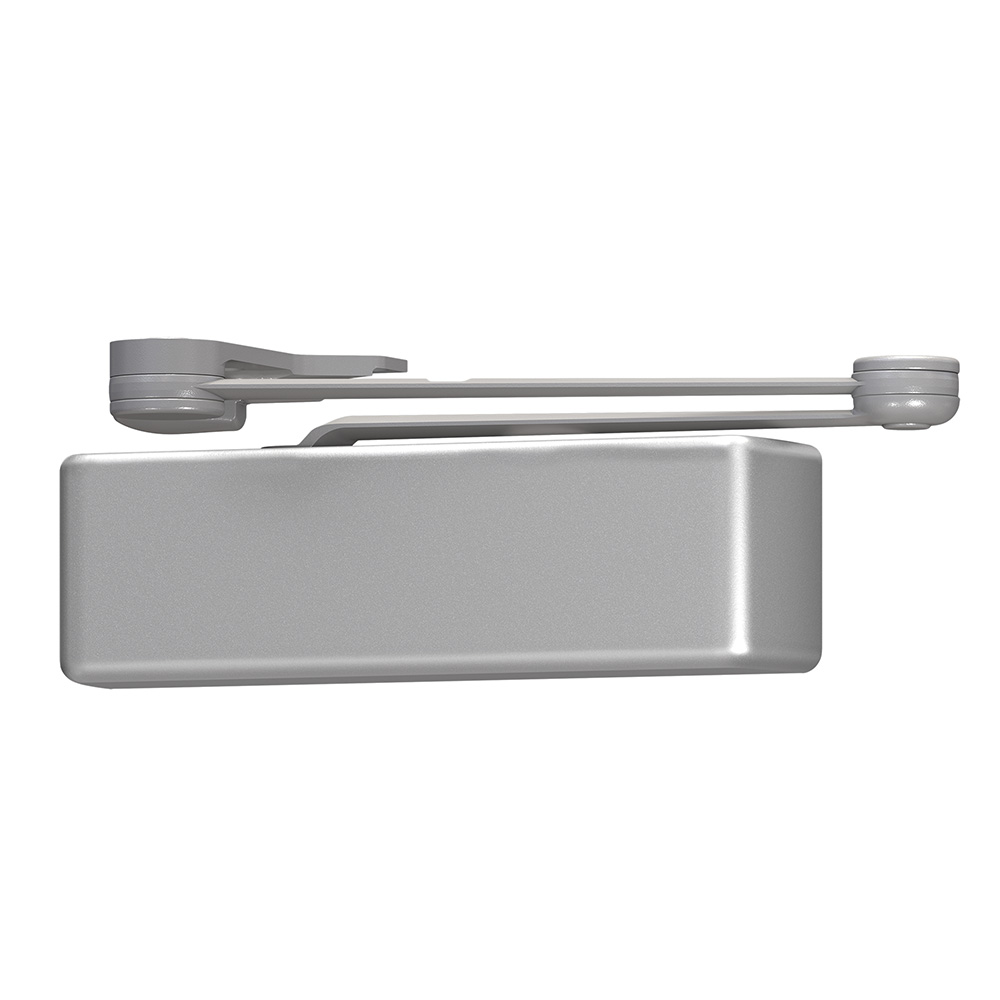

LCN 4040XPSCUSHAL Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Spring Cush Door Closer is engineered for rugged, high-traffic environments, ensuring reliability in critical moments. This door closer features the innovative LCN Green Dial, simplifying spring power adjustments for enhanced convenience and precision. Constructed with a solid forged steel main arm and forearm, it includes a spring-loaded stop in the soffit shoe, providing added durability and performance. Designed to accommodate various door sizes, the LCN 4040XPSCUSHAL is adjustable to 5 feet for interior doors and 4 feet for exterior doors, making it versatile for different applications. Its surface-mounted design allows for easy installation, while the aluminum finish (code 689) ensures a sleek and modern appearance that blends seamlessly with any décor. Measuring 12-1/4" x 2-1/4" x 3-1/2", this door closer is built to withstand the demands of busy facilities such as schools, hospitals, and government buildings. Backed by a limited 30-year warranty, the LCN 4040XPSCUSHAL is UL 10C rated, guaranteeing safety and quality. Trust LCN’s expertise to meet your door closure needs with confidence.
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
Attributes
Alternate Codes: 139777, 4040XP-SCUSH-AL, 4040XPSCUSHAL, 4041SCUSHAL, LCN4040XP-SCUSH-AL, LCN4040XP-SCUSH-AL*, LCN4040XPSCUSHAL, LCN4041SCUSHAL
Arm Function: CUSH
Arm Type: Parallel Arm Spring Stop
Baa Qualified: Yes
Back Check: Adjustable
Body Type: Cast Iron
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Clazz: LC
Closer Size: Non-Sized
Closer Type: Mechanical
Cold Weather Fluid: Yes
Color: Aluminum
Country of Origin: Usa
Cover: Plastic Cover
Cylinder Type: Standard
Degree Swing: 110¼
Delay: No
Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Satin Aluminum
Finish Description: Aluminum Painted
Fire Rated: 3 Hours {A}
Function: Cush
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Item Class Description: Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Spring Cush Door Closer with Thru Bolts
Item Type Keyword: Closer
Limited Warranty: Limited 1 Year Warranty
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
Maximum Opening: 110°
Mounting: Hinge Side, Top Jamb
Mounting Group: Hydraulic
Mounting Hole Pattern: 1" Diagonal Mounting with 2-1/4" Spacing
Mounting Location: Push Side
Mounting Style: Parallel Arm
No Of Inners: 1
Number Of Inners: 1
Options: All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws
Order_ Qty: 1
PO date: 2024-09-18
Product Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Restrictions: None
Screw Type: Self Tapping
Series: 4040XP Series
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Spring Tension: Adjustable 1 - 6
Stop: Spring Stop
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Through Bolts: No
Type: Surface
Ul Listing Type: UL 10C Rated
Upc: 043156589289
