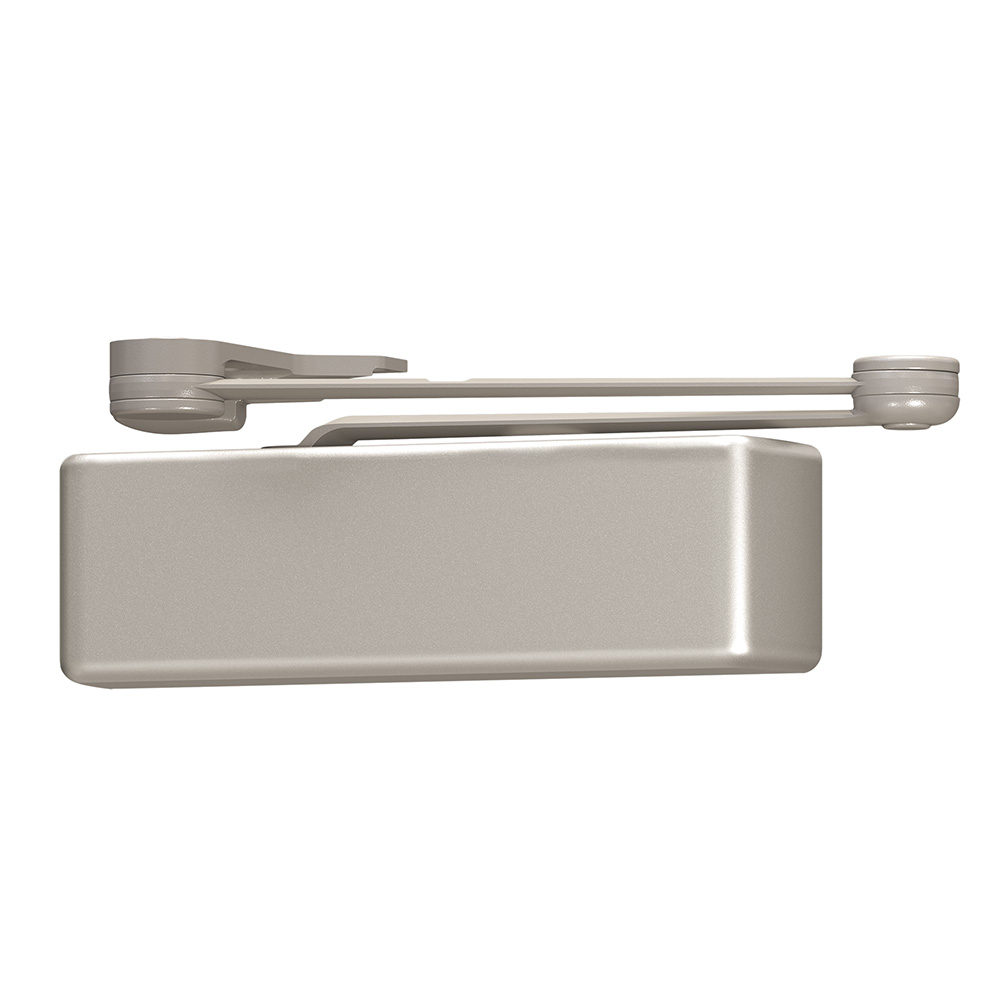

LCN 4040XP-SCUSH RH 652 Heavy Duty Surface Closer US26D is engineered for high-traffic environments, making it the optimal choice for institutional and demanding applications. This Grade 1 closer features a spring cush arm with push-side mounting and allows for a 110-degree swing, accommodating various door sizes with adjustable settings from 1 to 6. The robust construction includes a metal cover with a satin chromium plated finish, ensuring durability and aesthetic appeal. The LCN 4040XP is designed with enhanced performance in mind, boasting a 44% increased bearing load capacity and the strongest pinion available, with a 3/4" journal diameter. Its advanced V-shield™ seal offers a 20% longer lifespan, providing extra protection in real-world conditions. Installation is made easy with the LCN® Fast™ Power Adjust feature for quick and accurate setup. This non-handed closer is suitable for both interior and exterior doors, compliant with ADA standards, and UL & cUL listed for self-closing doors without hold-open functionality. The LCN 4040XP can be mounted hinge side, top jamb, or parallel arm, offering versatility to meet various architectural requirements. With a limited warranty of 30 years, this closer delivers reliability and longevity, making it a wise investment for any project.
HeavyDuty Surface Closer US26D
Grade 1 Surface Door Closer, Spring Cush Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Chromium Plated Finish, Right-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm Spring Stop
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 110 Deg.
Delay: No
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 15 lbs.
Stop: Spring Stop
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
