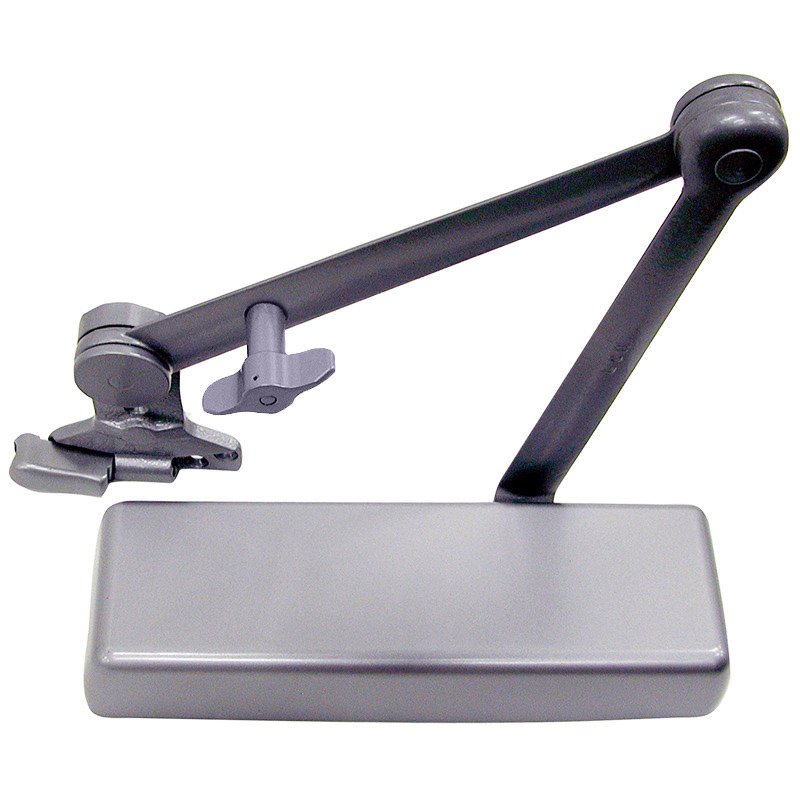

LCN 4040XP-SHCUSH LH 652 Heavy Duty Surface Closer US26D offers exceptional durability and flexibility, making it the ideal choice for institutional and high-traffic environments. This Grade 1 surface door closer features a spring cushioned hold open arm and is designed for push side mounting, accommodating up to a 110-degree swing. Adjustable from sizes 1 to 6, it boasts a robust metal cover finished in a satin chromium plating, ensuring both style and strength. Constructed with advanced LCN technology, the 4040XP is non-handed and designed to endure the most demanding applications. It showcases a remarkable 44% increased bearing load capacity and features the strongest pinion ever developed, with a 3/4" journal diameter and wider bearings for enhanced performance. The innovative V-shield™ seal ensures a 20% longer lifespan, while all-weather fluid guarantees reliable operation regardless of environmental conditions. Moreover, the LCN 4040XP can be mounted in various configurations on either right or left swinging doors, fulfilling ADA compliance requirements. With a limited warranty of 30 years and UL & cUL listings, this closer exemplifies reliability and value, making it a smart investment for any commercial setting.
HeavyDuty Surface Closer US26D
Grade 1 Surface Door Closer, Spring Cush Hold Open Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Chromium Plated Finish, Left-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm Spring and Hold Open
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Hold Open: Adjustable
Degree Swing: 110 Deg.
Delay: No
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Hold Open Type: Knob
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 15 lbs.
Stop: Spring Stop
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
