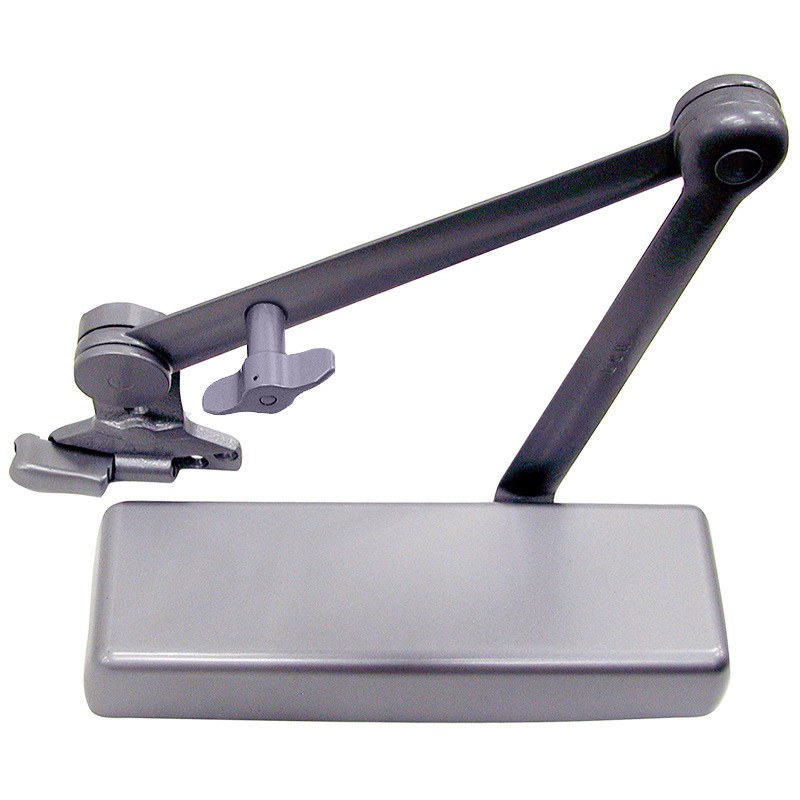

LCN 4040XP-SHCUSH LH 689 MC SRI Heavy-Duty Surface Door Closer ALLCN 4040XP-SHCUSH LH 689 MC SRI Heavy Duty Surface Closer AL is engineered for high-traffic applications, offering a robust solution that meets the demands of institutional settings. This Grade 1 surface door closer features a spring cush hold-open arm and is designed for push side mounting with a 110-degree swing. Its adjustable size range from 1 to 6 ensures versatility across various door types. Constructed with a beefy design, the LCN 4040XP boasts a 44% increased bearing load capacity and the strongest pinion ever, with a ¾" journal diameter. The wider 5/8" bearing and enhanced pinion teeth contribute to its exceptional durability. The closer includes a new V-shield™ seal, providing 20% longer life, while the special rust inhibitor and aluminum painted finish enhance its resilience in corrosive conditions. Installation is straightforward with the LCN® Fast™ Power Adjust feature, ensuring fast and accurate setup. This non-handed closer can be mounted in multiple configurations, accommodating both left and right swinging doors. UL and cUL listed for self-closing doors, the 4040XP also meets ADA requirements. With a 30-year limited warranty and exceptional performance, this closer sets a new standard for reliability and value in the industry.
Heavy Duty Surface Closer AL
Grade 1 Surface Door Closer, Spring Cush Hold Open Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Metal Cover, Special Rust Inhibitor, Aluminum Painted Finish, Left-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm Spring and Hold Open
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Hold Open: Adjustable
Degree Swing: 110 Deg.
Delay: No
Finish: 689
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Hold Open Type: Knob
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Pbs Options: 44,041,994,925,111
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 15 lbs.
Special Rust Inhibitor: Yes
Stop: Spring Stop
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
