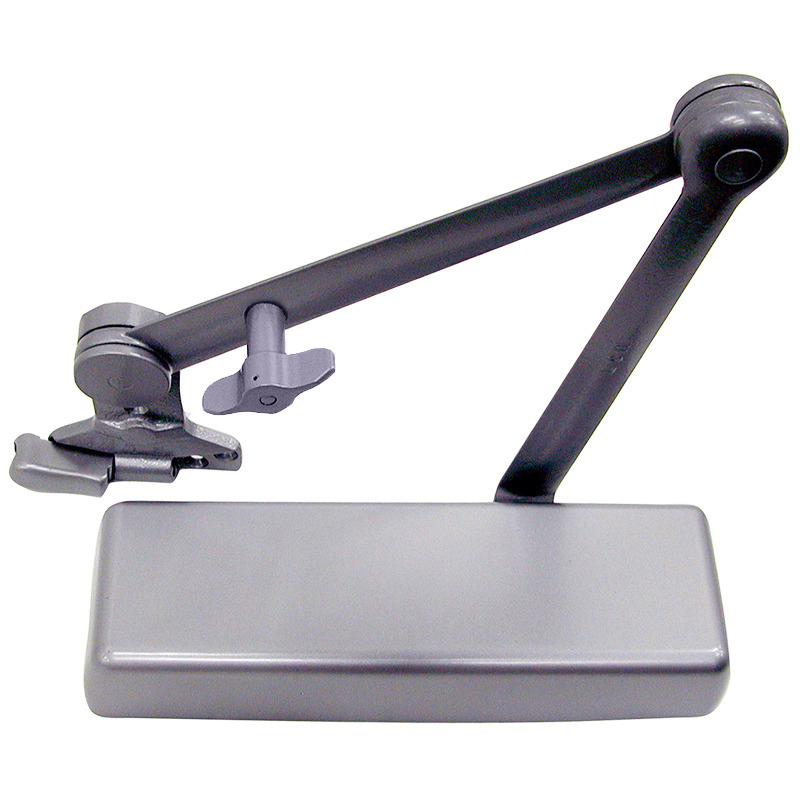

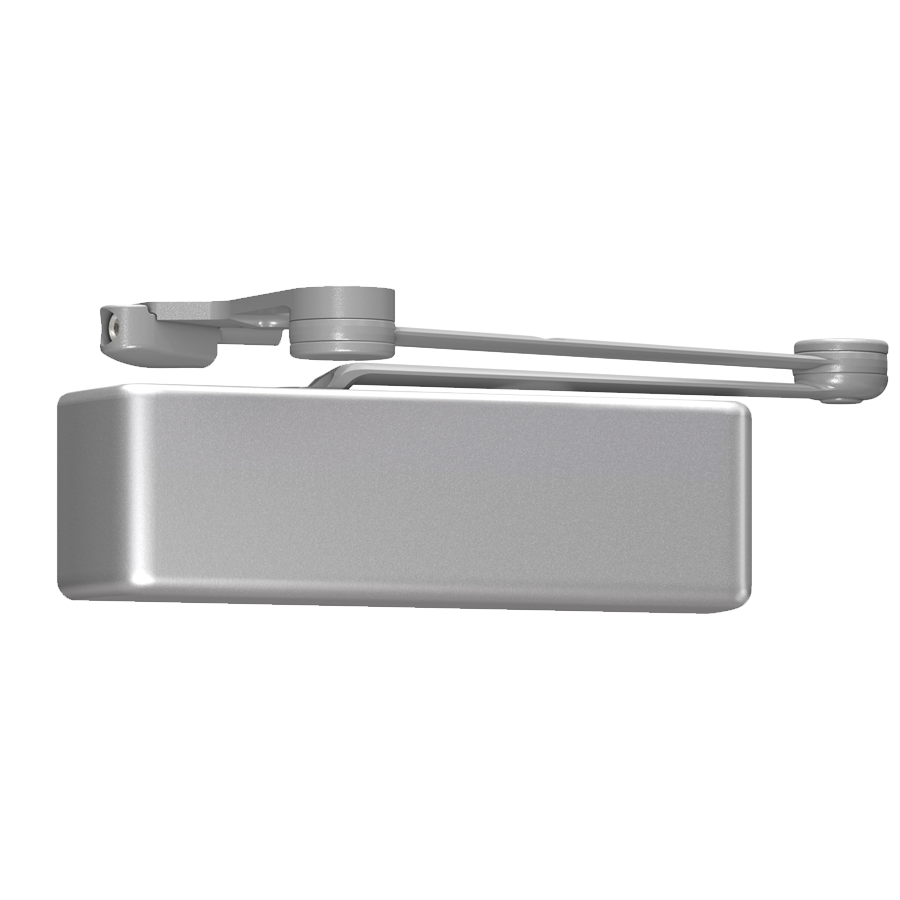

LCN 4040XPSHCUSHAL Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Hold Open Spring Cush Door Closer is engineered for rugged environments, making it an ideal choice for high-traffic facilities such as schools, hospitals, and government buildings. This door closer boasts a solid forged steel main arm and forearm with a spring-loaded stop in the soffit shoe, ensuring durability and reliable performance. The innovative LCN Green Dial simplifies spring power adjustments, allowing for precise control and eliminating guesswork. Designed for versatility, it is adjustable for interior doors up to 5 feet and exterior doors up to 4 feet, accommodating various opening sizes. With a hold-open feature, this closer provides convenient access while enhancing the safety of your facility. Measuring 12-1/4" x 2-1/4" x 3-1/2", the LCN 4040XPSHCUSHAL comes in a sleek aluminum finish (689) that complements any decor. It is UL 10C rated, ensuring compliance with safety standards. Supported by a limited 30-year warranty, this door closer represents a long-term investment in reliability and performance. Trust LCN’s expertise to meet your safety and security challenges with this exceptional door closers designed for demanding applications.
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
Attributes
Alternate Codes: 4040XP-SHCUSH AL, 4040XP-SHCUSH-AL, 4040XPSHCUSHAL, LCN4040XP-SHCUSH AL, LCN4040XP-SHCUSH-AL, LCN4040XP-SHCUSH-AL*
Application: CM
Arm Function: Compression Stop, Hold Open
Arm Type: Parallel Arm Spring and Hold Open
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Clazz: LC
Closer Size: Non-Sized
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Color: Aluminum
Country of Origin: Usa
Cover: Plastic
Cylinder Type: Standard
Degree Hold Open: Adjustable
Degree Swing: 110¼
Delay: No
Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Finish Description: Aluminum Painted
Fire Rated: No
Function: Cush Hold Open
Grade: Grade 1
Hand: Non-Handed
Hazardous Material: NO
Hold Open: Yes
Hold Open Type: Knob
Item Class Description: Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Hold Open Spring Cush Door Closer with Thru Bolts
Item Type Keyword: Closer
Limited Warranty: Limited 1 Year Warranty
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)
Mounting Group: Hydraulic
Mounting Hole Pattern: 1" Diagonal Mounting with 2-1/4" Spacing
Mounting Location: Push Side
Mounting Style: Parallel Arm
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-10
Product Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Restrictions: None
Screw Type: Self Tapping
Series: 4040XP Series
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Stop: Spring Stop
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Through Bolts: No
Type: Surface
Ul Listing Type: UL 10C Rated
