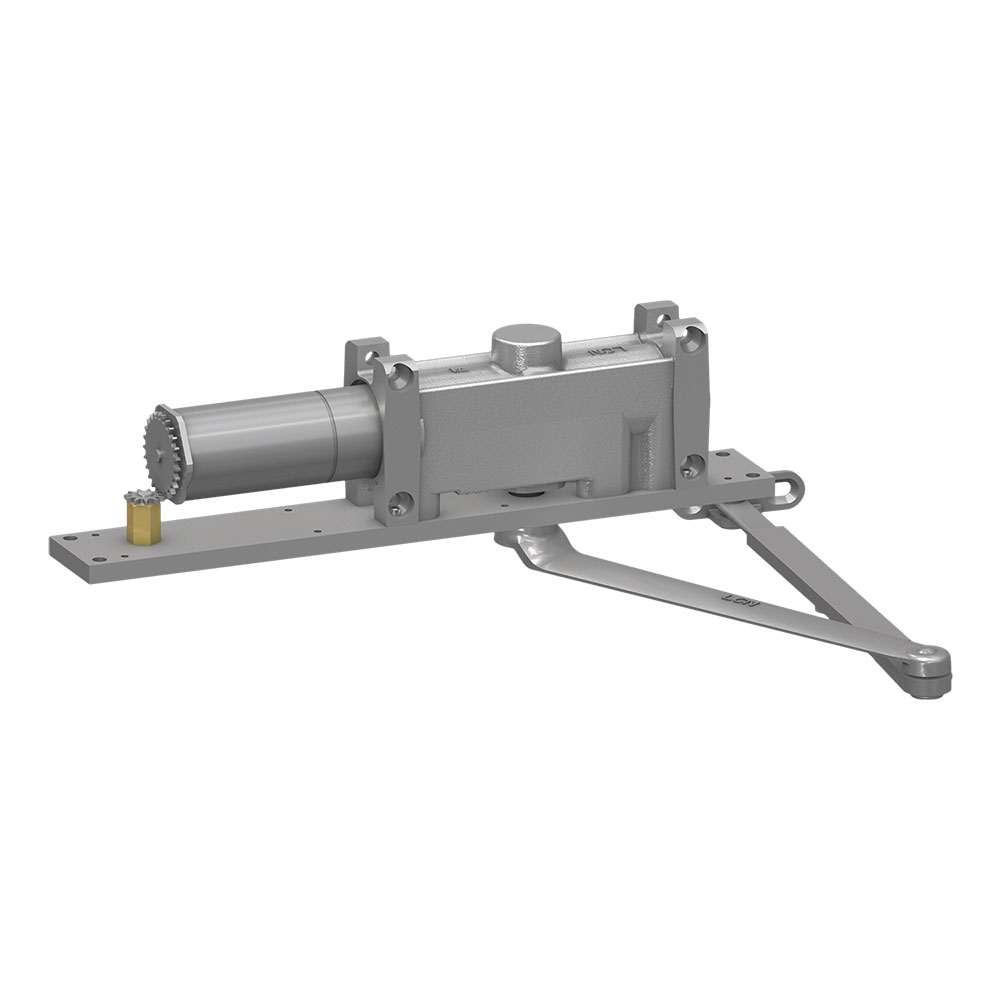

LCN 5013-REG LH 689 Concealed Overhead Door Closer AL

LCN 5013-REG LH 689 Overhead Concealed Closer AL is a reliable choice for those seeking a robust and discreet door control solution. Designed for institutional and high-traffic environments, this concealed heavy-duty closer meets the demands of applications exposed to weather and frequent use. The 5010 Series features a double lever arm that enhances door control, ensuring smooth operation while maintaining a clean aesthetic. This model is a left-handed, size 3 closer, suitable for both hollow metal and wood doors and frames. It accommodates interior doors up to 5'0" and exterior doors up to 4'0", making it versatile for various installations. The aluminum frame requires a minimum 4" x 4" tube, ensuring easy integration into existing structures. With a matte silver finish (689/US28), this closer not only blends seamlessly into its surroundings but also meets ADA requirements for accessibility. The LCN 5013-REG is designed for commercial use and includes a 15-year limited warranty, reflecting its durability and quality. Additional options, such as custom powder coat finishes and SRI primer for corrosive environments, allow for tailored solutions to suit specific needs. Trust in the LCN 5013-REG for a high-performance door closer that combines functionality with a sleek appearance.

Overhead Concealed Closer AL

Regular Arm Concealed Door Closer, Size 3, Left Hand, Aluminum

The 5010 Series is a concealed heavy duty door closer designed for institutional, high traffic or other applications exposed to weather or abuse.

The 5010 Series is a concealed heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse.

The 5010 Series features the double lever arm that provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.

• Standard 5010 series closer shipped with regular arm, metal finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Handed for right or left swinging doors
• For hollow metal or wood, door and frame
• Aluminum frame requires minimum 4” (102 mm) x 4” tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on finish plate, arm, and fasteners
• Optional SRI primer for installations in corrosive conditions
