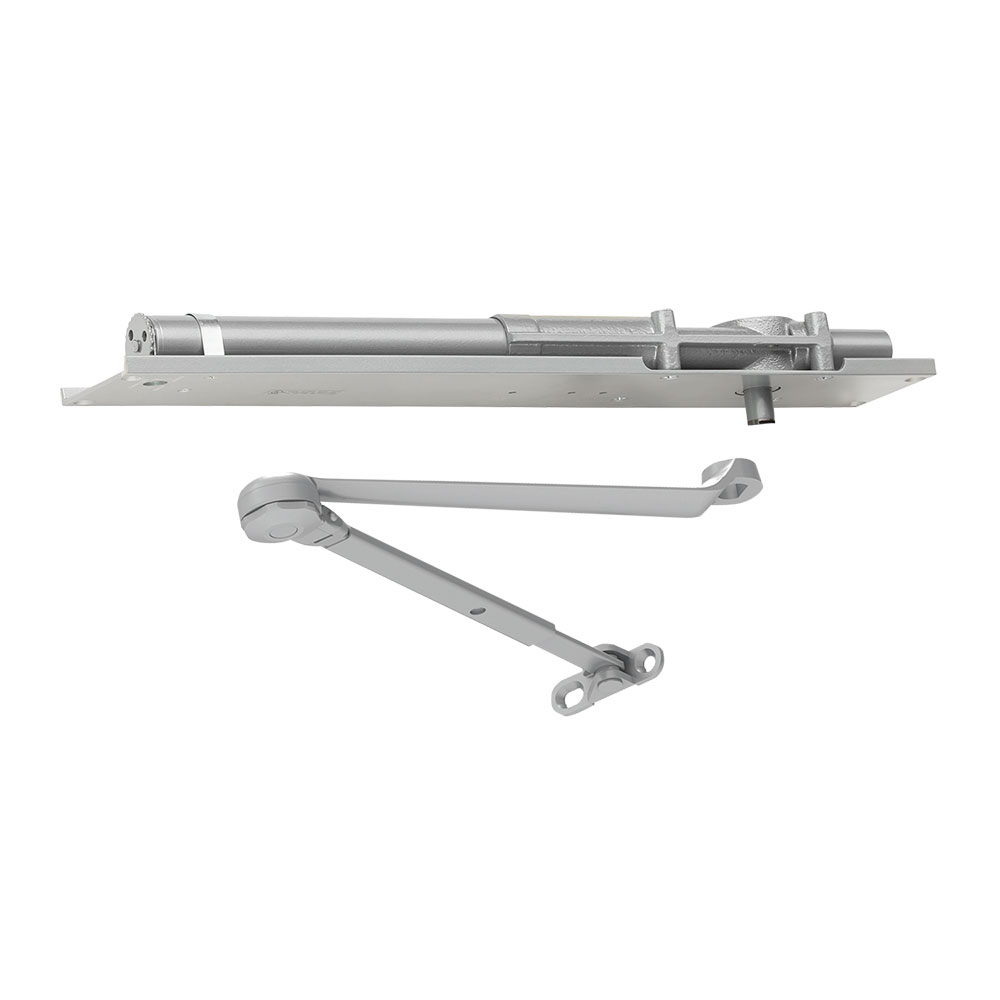

LCN 5033-H RH 689 Concealed Overhead Door Closer AL

LCN 5033-H RH 689 Overhead Concealed Closer AL is designed for superior performance in commercial settings. This hold-open arm concealed door closer is a part of the robust 5030 Series, specifically tailored to fit narrow aluminum transoms with a minimum clearance of 1-3/4 inches. Engineered for both right-handed and left-handed door applications, it accommodates interior doors up to 5 feet and exterior doors up to 4 feet. The double lever arm mechanism ensures exceptional door control, while the ability to meet ADA requirements makes it ideal for accessibility-focused environments. Available in a sleek matte silver finish (689/US28), this closer also offers custom powder coat options to suit various architectural aesthetics. Installation is straightforward with the included regular arm, mounting/finish plate, and a comprehensive screw pack. With a 100-degree hold-open feature and a hydraulic mounting group, this closer is built for durability and reliability. It comes with a 15-year limited warranty, reinforcing its commitment to quality. Whether you're upgrading existing hardware or outfitting a new commercial space, the LCN 5033-H RH 689 is a dependable choice that combines functionality with style.

Overhead Concealed Closer AL

Hold Open Arm Concealed Door Closer, Size 3, Right Hand, Aluminum

The 5030 Series Pacer is a concealed heavy duty closer designed to fit in a narrow aluminum transom with 1-3/4 In. minimum clearance.

The concealed 5030 Series is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The double lever arm of the 5030 Series provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

• Standard 5030 series closer shipped with regular arm, mounting/finish plate and wood and machine screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4 1/2” (114 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and mounting/finish plate

Resources

• 5030 Series Concealed Closers Cut Sheet
• LCN 5030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
