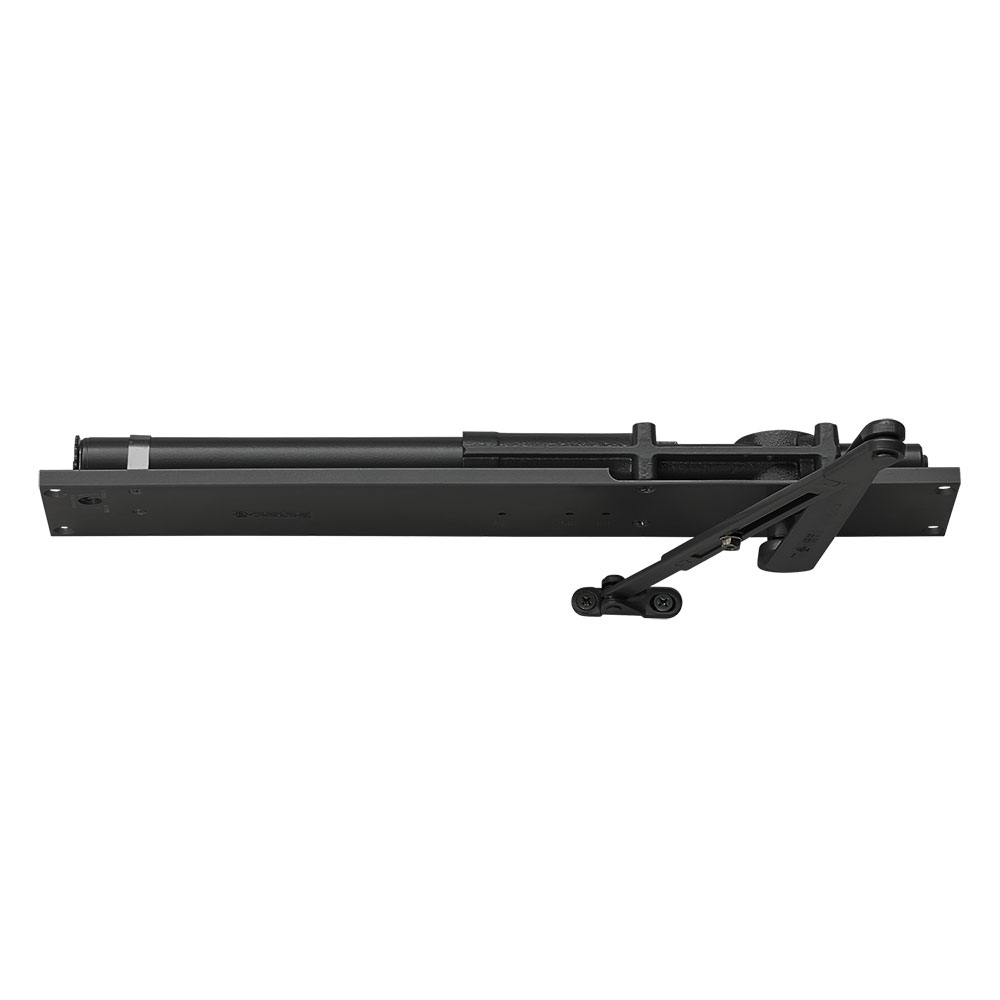

LCN 5033-REG RH 693 Overhead Concealed Closer - GLBLK

LCN 5033-REG RH 693 Overhead Conceal Closer GLBLK is a sophisticated solution for your door control needs, designed for right-hand applications. This regular arm concealed door closer from the trusted 5030 Series Pacer is built for heavy-duty performance, fitting seamlessly into narrow aluminum transoms with a minimum clearance of just 1-3/4 inches. The double lever arm design ensures exceptional door control, making it ideal for both commercial and residential installations. With a sizing capability for interior doors up to 5 feet and exterior doors up to 4 feet, this closer meets a wide range of architectural requirements. It features a sleek black finish (693) and is available with standard or optional custom powder coat finishes, ensuring it fits your aesthetic needs. Meeting ADA requirements, this Grade 1 closer is engineered for durability, backed by a 15-year limited warranty. The hydraulic mounting location at the header allows for effortless installation. With the ability to handle 180-degree swings and options for a cold-weather fluid, the LCN 5033-REG is a reliable choice for demanding environments. Suitable for various applications, this concealed overhead closer is the perfect blend of functionality and style.

Overhead Conceal Closer GLBLK

Regular Arm Concealed Door Closer, Size 3, Right Hand, Black

The 5030 Series Pacer is a concealed heavy duty closer designed to fit in a narrow aluminum transom with 1-3/4 In. minimum clearance.

The concealed 5030 Series is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The double lever arm of the 5030 Series provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

• Standard 5030 series closer shipped with regular arm, mounting/finish plate and wood and machine screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4 1/2” (114 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and mounting/finish plate

Resources

• 5030 Series Concealed Closers Cut Sheet
• LCN 5030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
