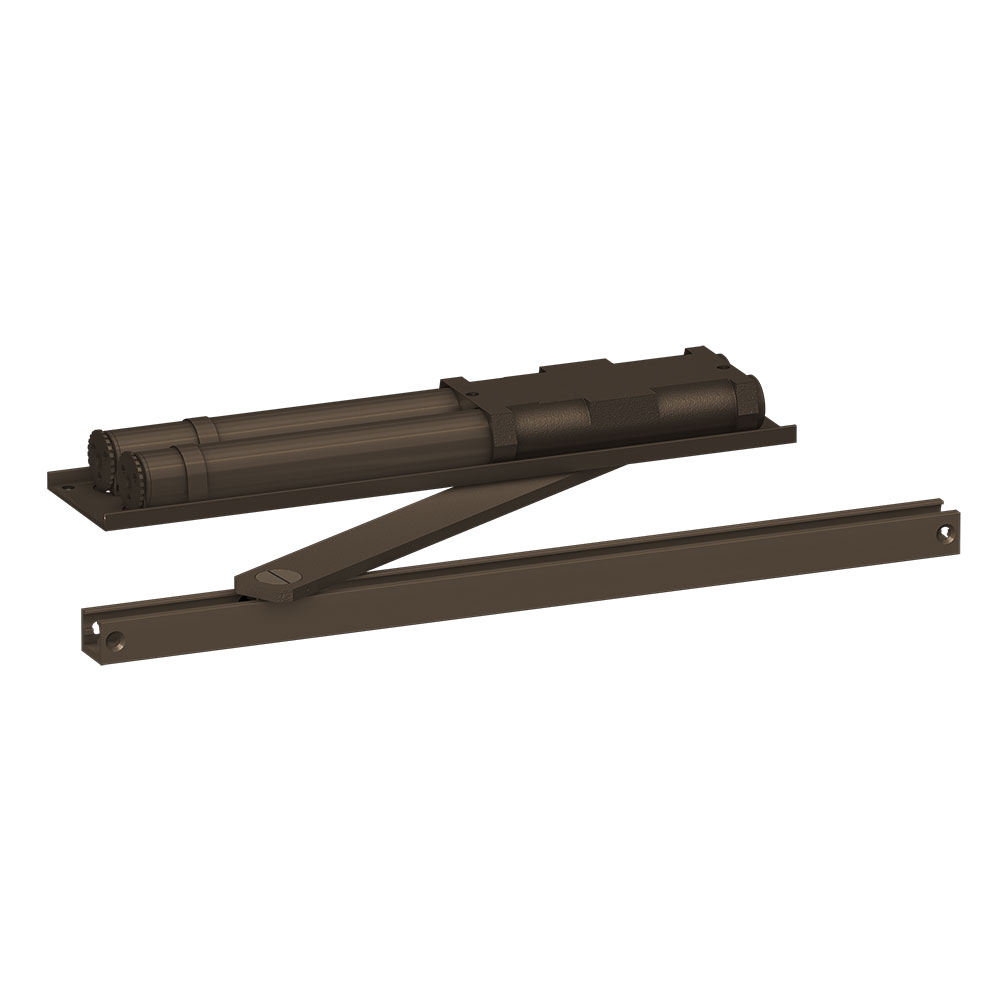

LCN 6033-H BUMPER 695 DKBRZ Overhead Concealed Closer

LCN 6033-H BUMPER 695 Overhead Concealed Closer DKBRZ is a top-tier choice for those seeking a reliable and aesthetically pleasing door control solution. Designed as part of the Grade 1 6030 Series, this heavy-duty concealed closer fits seamlessly into narrow transoms, requiring a minimum header size of 1-3/4" x 4". The double-acting design ensures smooth operation in both directions, making it ideal for high-traffic areas. This model features a single lever arm and roller assembly that delivers quiet, controlled door movement, while the adjustable spring power and latch speed allow customization for either swing. The 95-degree hold open function adds convenience, ensuring doors stay open when needed. With a dark bronze painted finish, it fits well within a range of architectural styles, and the optional custom powder coat finish offers additional aesthetic flexibility. Engineered to meet ADA requirements and ANSI A156.4 standards, the LCN 6033-H is not only functional but also compliant. The closer is suitable for both commercial and residential applications, backed by a limited 15-year warranty, ensuring peace of mind with every installation. Choose the LCN 6033-H for a perfect blend of durability, style, and performance.

Overhead Conceal Closer DKBRZ

6030 Series Grade 1 Concealed Door Closer, Track with Hold and Bumper, 95 Degree Swing, Size 3, Non-Handed, Dark Bronze Painted Finish

The concealed 6030 Series PACER is a heavy duty double acting closer designed to fit in a narrow, minimum 1-3⁄4" header. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

LCN's 6030 Series is a heavy duty, double acting closer designed to fit a narrow transom.

The single lever arm and roller assembly of the 6030 Series provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).

• Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack
• Sized, double acting cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Adjustment of spring power and latch speed independent for either swing
• Backcheck and general speed adjustment are common for both swings
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and mounting/finish plate
• Optional SRI primer for installations in corrosive conditions
