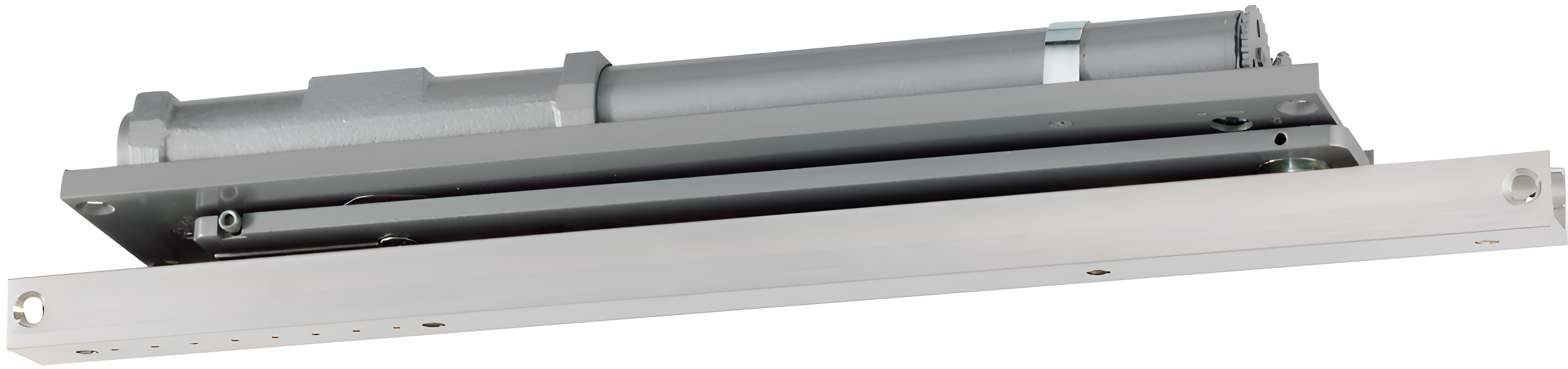

LCN 6034-BUMP-DKBRZ Narrow Concealed Heavy Duty Door Closer, Double Acting, Dark Bronze

LCN Closers 6034-BUMP-DKBRZ Narrow Overhead Concealed Heavy Duty Door Closer is an ideal solution for those seeking a robust and discreet door control mechanism. Designed to fit in a narrow minimum 1-3/4" header, this double-acting closer meets the stringent ANSI/BHMA A156.4 Grade 1 standards and complies with ADA requirements for reduced opening force. Constructed with a cast iron cylinder and a high-efficiency full-complement bearing, the 6034 model ensures smooth and quiet operation. The 1-1/8" diameter forged steel piston offers reliable performance, while the adjustable spring size 4 allows for tailored closing speeds. The concealed design enhances aesthetics without compromising functionality, making it perfect for aluminum transoms. This closer is UL and cUL listed for self-closing doors, giving you peace of mind regarding safety and compliance. With a 15-year limited warranty, you can trust in its durability. The dark bronze powder coat finish not only provides an elegant touch but also protects against wear and tear. Installation is straightforward with the included wood and machine screw pack, ensuring a secure fit. Experience the perfect blend of style and strength with the LCN Closers 6034-BUMP-DKBRZ, where engineering excellence meets design versatility.

Narrow Overhead Concealed Heavy Duty Door Closer, Double Acting, Standard Track Arm with Bumper, Designed to Fit in a Narrow Minimum 1-3/4in Header, Spring Size 4, WMS Wood and Machine Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
