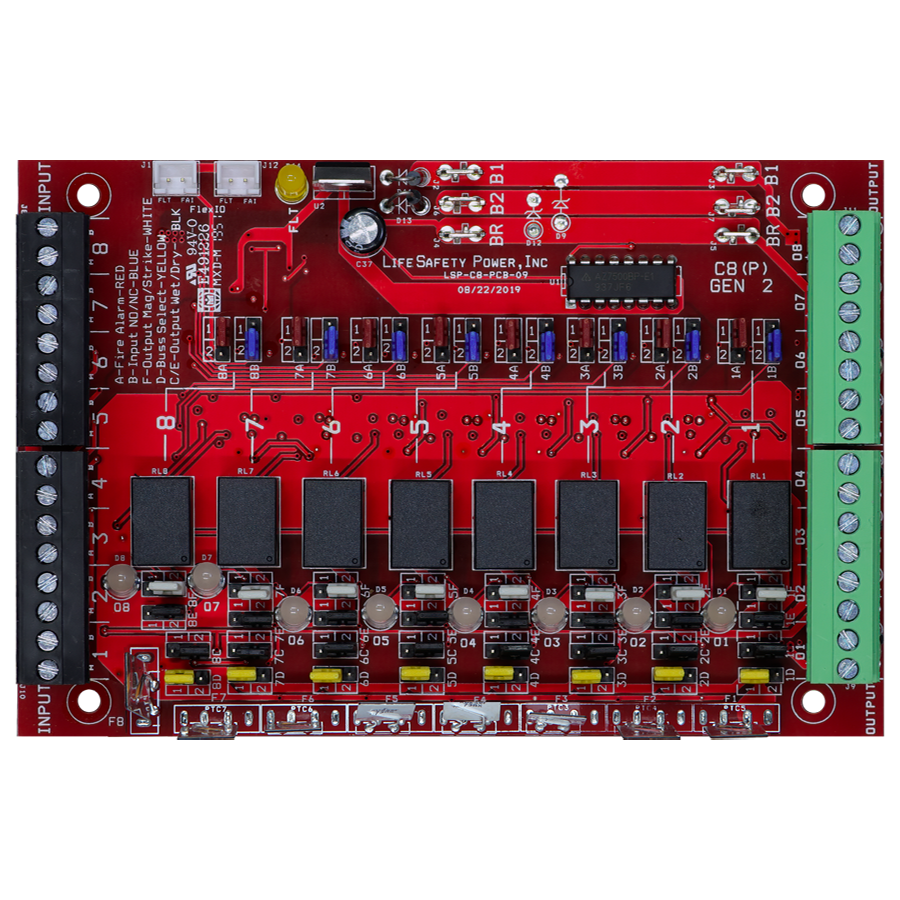

Lifesafety Power C8P-BOXED 8-Output Lock Distribution Module, Class 2 Power Limited for OR WA

Lifesafety Power Inc C8P-BOXED 8 Output Lock Distribution Module is a robust solution designed to enhance your access control systems. This Class 2 power limited module is essential for compliance with codes in Oregon and Washington, making it a reliable choice for building professionals and knowledgeable homeowners alike. The C8P-BOXED module offers eight programmable lock outputs, each capable of fail-safe, fail-secure, and dry contact operation modes. This flexibility allows for seamless integration with various locking devices and fire alarm systems, ensuring safe egress control. It features OutSmart technology, which utilizes color-changing output LEDs to easily indicate voltage levels-green for 12V and blue for 24V. This module also includes multiple trigger input zones, accommodating comprehensive access control systems while monitoring output zones for fuse integrity. Status LEDs provide real-time feedback on zone activity, enhancing operational awareness. The C8P-BOXED is designed for easy installation with snap-in mounting standoffs and fast-on connect cables, while its high-efficiency circuit reduces heat generation, prolonging service life. With lifetime warranty coverage and the ability to daisy chain multiple modules for added outputs, the Lifesafety Power Inc C8P-BOXED is a versatile and dependable choice for any security system.

8 Output Lock Distribution Module, Class 2 Power Limited, Required by Code for Oregon Washington

The Flexpower C4, C8 lock controller modules add either 4 or 8 lock control outputs to a Flexpower power supply and are typically supplied as part of a system or purchased as an expansion piece to an existing system. Each module provides either 4 or 8 access control inputs capable of voltage or dry contact activation. Each module provides either 4 or 8 lock outputs, each one programmable for fail-safe, fail-secure, dry contact, and fire alarm over ride for egress lock control. In dual voltage systems, each lock output is also programmable to either of the two voltages available when used in a Flexpower dual voltage power system. Lock modules incorporate OutSmart technology - color changing output LEDs that visually indicate voltage level (Green for 12V, Blue for 24V). Each output is supervised for voltage and/or blown fuse with the fault reported to the host power supply.

Features:

• Listed for fire alarm, intrusion, access control, CCTV and mass notification
• Provides 4 or 8 trigger input zones for interface to an access control system
• Provides 4 or 8 relay controlled output zones
• Accommodates failsafe or fail secure locking devices
• Provides fire alarm interface for egress lock control
• Monitors fuse integrity of output zones and reports fault to host power supply
• Status LEDs report zone activity
• Each output zone is fused at 3A or 2.5A for PTC circuit breakers
• PTC versions are low voltage, class 2 power limited
• Allow selection by zone from two voltage sources pre-punched cabinet layout allows expansion board additions with minimal labor
• Easily obtainable and replaceable automotive style ATM fuses

Functions:

• Flexibility:
• Multiple outputs for direct lock control and additional accessory power distribution modules
• Color coded by function configuration jumpers for ease of programming
• Configurable fail-safe, fail-secure, and dry contact modes of operation
• Fire Alarm Interface (FAI) when used with an FPO power supply
• Fault detection and reporting to host power supply
• FlexConnect dual buss architecture
• OutSmart color changing output LEDs indicate 12 or 24VDC setting
• Output Protection:
• C4/C8 ATM style fuse: 3A/per output
• C4P/C8P Solid state circuit breaker: 2.5A/per output
• Visual Indicators:
• Output status per output (locked/unlocked)
• DC voltage per output (green LED for 12VDC | blue LED for 24VDC)
• Fault (yellow LED)
• Mechanical:
• Multiple modules can be daisy chained to add additional outputs
• Snap-in style mounting standoffs with fast-on connect cables for easy field installation
• Lifetime Warranty: High efficiency circuit of greater than 90% provides less heat generation leading to a longer service life and lower MTBF
