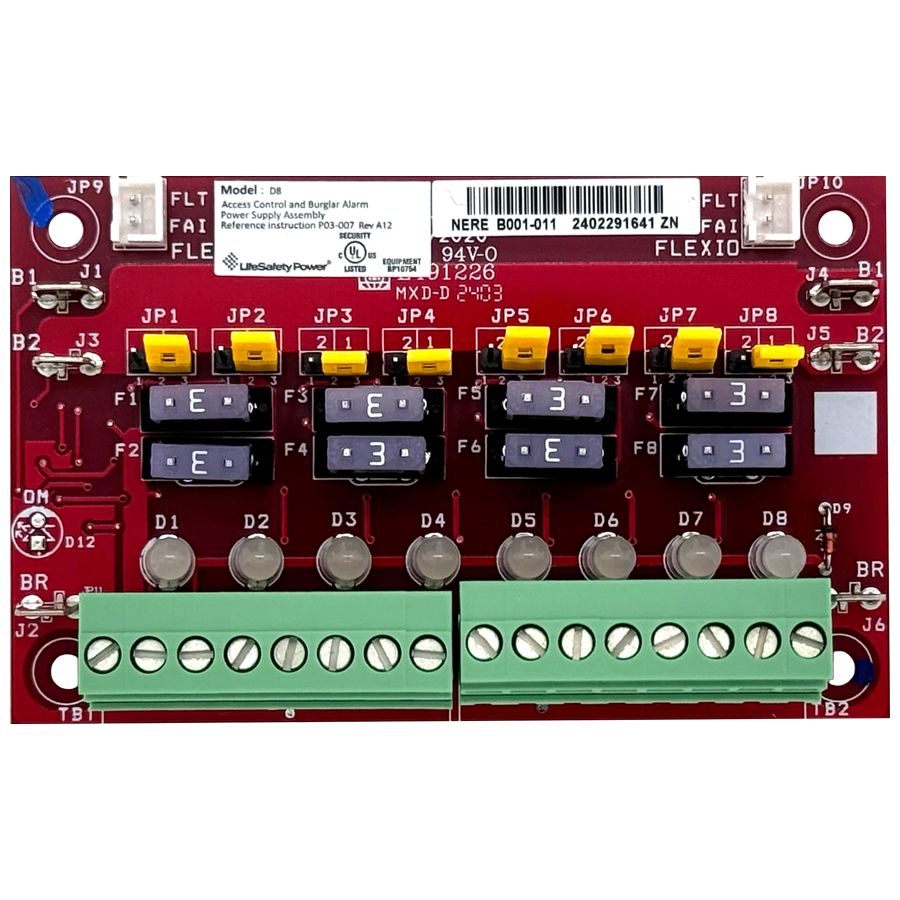

Lifesafety Power D8-BOXED 8 Output Auxiliary Distribution Module, Fused

Lifesafety Power Inc D8-BOXED 8 Output Auxiliary Distribution Module, Fused, is designed to enhance your Flexpower power supply system by providing eight auxiliary power outputs. This module is an ideal choice for expanding an existing system or integrating into new installations, ensuring that your security and access control devices receive reliable power. Each output on the D8 is individually protected with either a 3A ATM-style fuse or a 2.5A solid-state circuit breaker, ensuring maximum safety and performance. The module features FlexConnect technology, which simplifies installation by utilizing a board buss structure that minimizes interwiring. With the ability to select between 12V and 24V outputs, this module supports flexibility in application. The OutSmart technology integrated within the D8 provides visual voltage verification, with color-changing LEDs indicating the output voltage-green for 12V and blue for 24V. Its pre-punched cabinet layout facilitates easy expansion, allowing additional modules to be daisy-chained for even more outputs. With a lifetime warranty and a robust fiberglass PCB design that reduces heat generation, the D8-BOXED ensures longevity and reliability in your security systems. Whether for auxiliary power distribution or direct lock control, this distribution module is an essential addition to your security solutions.

8 Output Auxiliary Distribution Module, Fused

The D8 power distribution module adds 8 auxiliary power outputs to a Flexpower power supply and is typically supplied as part of a system, or purchased as an expansion piece to an existing system. The D8 provides 8 auxiliary power outputs, each one individually protected by a fuse (D8) or solid state circuit breaker (D8P). Each output is programmable to either of the two voltages available when used in a Flexpower dual voltage power system, or to the continuous output or the resettable output of the power supply when used in a single voltage system. D8 incorporates OutSmart technology - color changing output LEDs that visually indicate voltage level (green for 12V, blue for 24V).

Features:

• D8 DC Auxiliary power distribution
• F8 FAI Power distribution
• Fused or power limited versions
• Per zone voltage selection
• OutSmart visual voltage verification
• F8 also allows selection of constant, enable on FAI, or disable on FAI
• Simple field selectable switch sets output voltage.
• FlexConnect system minimizes installation labor by using board buss structure to eliminate accessory board interwiring
• Expand number of voltage outputs in increments of eight
• Add FAI functionality on a per zone basis
• Add simultaneous fail safe/fail secure voltage outputs
• Pre-punched cabinet layout allows expansion board additions with minimal labor

Functions:

• Flexibility:
• FlexConnect dual buss architecture for field selectable Buss 1 or Buss 2 output
• Fire alarm interface (FAI) for egress lock control when used with an FPO power supply in single voltage applications (via DC2 output)
• Multiple outputs for auxiliary power distribution or direct lock control and additional accessory power distribution modules
• Output Protection:
• D8 ATM style fuse: 3A/per output
• D8P Solid state circuit breaker: 2.5A/per output
• Visual Indicators: DC Out (dual color LED per output - green/12V or blue/24V)
• Mechanical:
• Multiple modules can be daisy chained to add additional outputs
• Snap-in style mounting standoffs with fast-on connect cables for easy field installation
• Lifetime Warranty: Fiberglass PCB and high efficiency circuit provides less heat generation leading to a longer service life and lower MTBF

Specifications:

• Power Outputs: 8
• Input Voltage: 12 and/or 24 VDC
• Output Voltage (Jumper Select): 12/24 VDC
• Output Current/D8: Fused at 3A per output
• Output Current/D8P: Class II at 2.5A per output
• Supports follow on modules: Yes
• Fire Alarm Interface: Per output (single voltage only)
