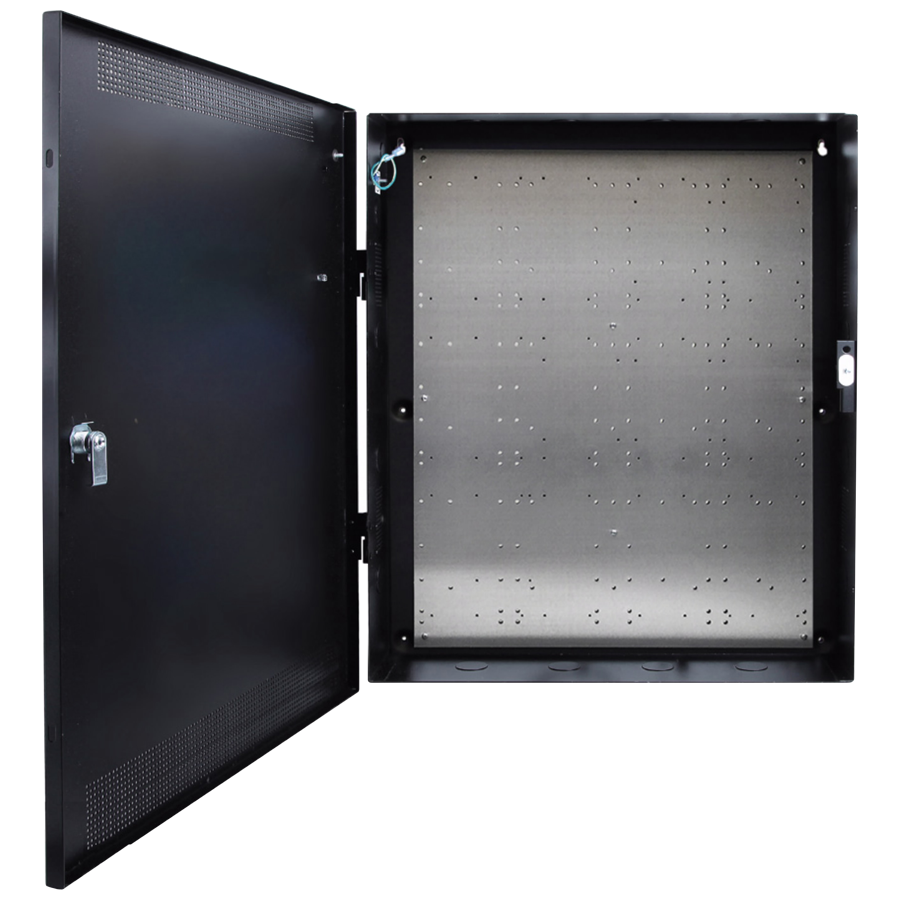

Lifesafety Power E4M-BOXED Up to 8-Doors, E4 Enclosure with Mercury-Compatible Backplate

Lifesafety Power Inc E4M-BOXED Up to 8-Doors, E4 Enclosure with Mercury-Compatible Backplate offers a robust solution for low voltage power applications, accommodating up to eight doors with ease. Constructed from high-grade steel, this enclosure combines durability with functionality, featuring an ample depth of 6.5 inches to fit 12Ah batteries, ensuring reliable power for your access control systems. Designed with flexibility in mind, the E4M-BOXED includes pre-punched holes for the convenient mounting of Flexpower AC and DC power supplies, as well as accessory boards. Its removable aluminum backplate allows for easy installation of Mercury access control panels in both single and dual voltage configurations. The quick-disconnect cover ground strap facilitates hassle-free door removal for maintenance, while the included lockset and tamper switch enhance security. This enclosure also boasts rear stand-offs for field upgrades without the need to detach it from the wall, and ample knockouts for improved wiring management. With dimensions of 24.00" x 20.00" x 6.50" (61 x 51 x 16.5 cm), the E4M-BOXED is an ideal choice for professionals seeking a reliable and efficient power management solution in access control systems.

Up to 8-Doors, E4 Enclosure with Mercury-Compatible Backplate

E Series standard enclosures are painted, steel, locking enclosures with integral battery space for low voltage power applications. E series mounts Flexpower AC, DC power supplies and distribution modules in multiple configurations for maximum flexibility. Prewired for standard grounding, a tamper switch is provided with the cabinet. Expansion enclosures provide additional horizontal or vertical space for use as a wiring gutter, additional battery space, or mounting of additional access control modules. Battery enclosures provide additional space for backup battery sets. Prebuilt enclosures are available in two different sizes with multiple shelf configurations for flexibility in battery options. Unified power access enclosures are specifically engineered to mount Flexpower system modules along side access panels in one integrated access power management system. The E4M aluminum backplate is removable and mounts Mercury access control panels and Flexpower modules in both single and dual voltage configurations. Flexpower power supply(s) and distribution boards mount in pre-drilled locations. Mercury panel mounts on supplied threaded standoffs. 6.5" enclosure depth accommodates 8AH batteries.

Features:

• High grade steel design
• Quick-Disconnect cover ground strap for easy door removal
• Included lockset and tamper switch
• Pre-punched holes to mount PS and accessory boards to accommodate AC or DC power supplies and accessory boards in multiple configurations
• Rear stand-offs allow field upgrading without removing cabinet from wall
• Ample knockouts
• Removable door for easier servicing
• Cabinets have large depth to fit 12Ah batteries
• Prewired with standard grounding
• Lock, tamper switch and (2) two keys standard
• Color Black: LSP enclosure standard
• Color Red: Option available for fire (E1R, E2R only)
• Enclosure Dimensions (H x W x D): 24.00" x 20.00" x 6.50" (61 x 51 x 16.5 cm)
