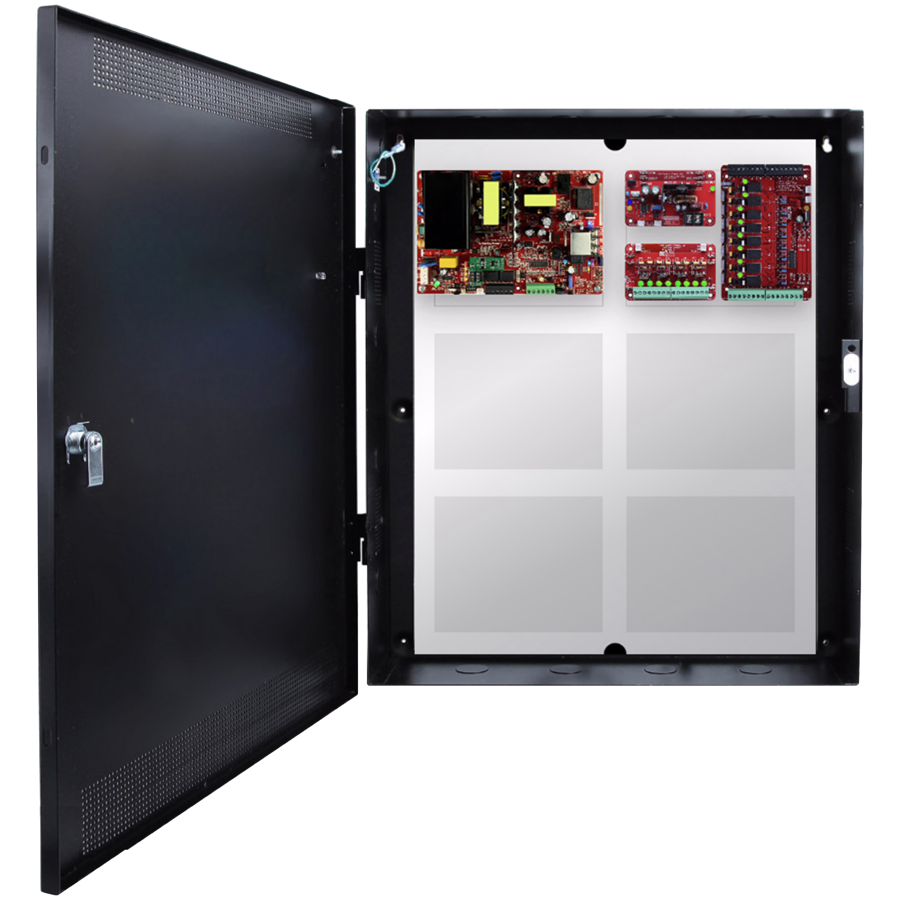

Lifesafety Power FPO150-B100C8D8PE4M 8-Door E4 Enclosure, Mercury-Compatible, 150W Dual Voltage Power Supply Modules

Lifesafety Power Inc FPO150-B100C8D8PE4M is a versatile and robust access power system designed to meet the demands of modern security solutions. This dual-voltage power supply operates at both 12V and 24V DC, ensuring compatibility with a variety of access control systems. It features an E4 enclosure that houses a Mercury-compatible backplate, allowing seamless integration with existing security hardware. The FPO150-B100C8D8PE4M supports up to eight doors with its C8 lock control module, offering programmable outputs for failsafe or fail secure operation. The unit includes an auxiliary distribution module with eight class II outputs, each fused for optimal protection. Built-in features such as overload and short circuit protection, fire alarm interface, and an independent 2A battery charger ensure reliable performance. Designed for ease of installation, the pre-wired power section and removable backplate simplify setup, while the tamper switch, lock, and dual key set enhance security. With an enclosure depth of 6.5 inches, it accommodates battery sets and includes mounting hardware for access boards. With a maximum output power of 150W, the system operates efficiently, making it an ideal choice for building professionals and knowledgeable homeowners looking to enhance their security infrastructure.

Up to 8-Doors, E4 Enclosure, Mercury-Compatible Backplate, 150W Dual Voltage Power Supply, 8 Output Lock Module - Fused, 8 Output Auxiliary Distribution Module - Class 2 Power Limited

MCLASS Unified power systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL Listed solution. This unit is a 12V and 24V DC dual voltage access power system. C8 lock control module provide eight access control inputs capable of voltage or dry contact activation, and outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. D8 module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Eight auxiliary - fused at 2.5A each
• Eight lock control - fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Removeable backplate simplifies installs
• Pre-defined hole pattern for power section
• Access panels mount on threaded standoffs - no drilling required
• Additional benefits:
• Wire management room
• 6.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 170 Watts (1.41 Amps)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 4A@12V and 4A@24V DC, 150W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 8 auxiliary outputs, fused at 3A each
• 8 control outputs, fused at 3A each
• 120 mV output voltage ripple
• System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
• Battery Charging:
• Independent built-in 2A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 12 or 24 V battery sets
• Charges up to 80Ah battery sets within UL limit
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• B100: DC input/output and fault
• C8: DC output and fault
• D8P: DC outputs
• Enclosure Dimensions: Size: 24.00H x 20.00W x 6.50D in. (61.00 x 50.00 x 16.50 cm) | Weight: 25 lbs.
