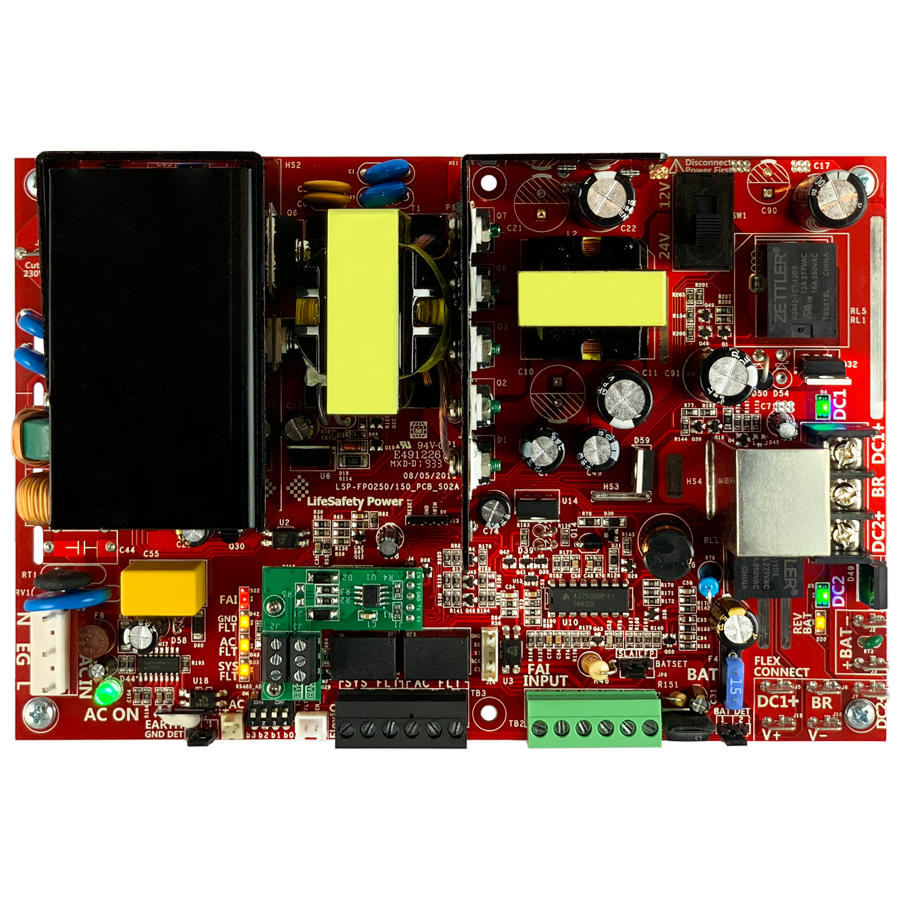

Lifesafety Power FPO150-BOXED 150W Power Supply Board 12A/12V 6A/24V

Lifesafety Power Inc FPO150-BOXED 150W Power Supply Board delivers reliable power solutions with exceptional versatility. Designed for both 12V and 24V applications, this power supply features the innovative VSelect technology, allowing users to configure the output voltage effortlessly with a single switch. The TruWatt capability ensures consistent output power, accommodating the same number of locking devices at either voltage setting without compromising performance. Equipped with a microprocessor-controlled SureCharge feature, the FPO150-BOXED guarantees optimal charging for sealed lead-acid or lithium iron phosphate batteries, ensuring a quick charge time while protecting battery integrity. Its FlexConnect design simplifies installation and service, utilizing common mounting footprints, snap-in standoffs, and pluggable wires for hassle-free connectivity. The FPO150-BOXED also includes advanced supervision capabilities to monitor vital functions such as AC and battery status, while LED indicators provide clear visual feedback on system faults and fire alarm activations. With built-in overload and short-circuit protection, this power supply ensures safety and reliability for your access control systems. Engineered to meet stringent energy efficiency standards, the Lifesafety Power Inc FPO150-BOXED is an indispensable component for any security infrastructure, promising performance and peace of mind.

150W Power Supply Board 12A/12V 6A/24V

Power supply modules are used to supply the system’s power to the other modules and connected devices. The FPO series is LifeSafety Power's flagship line of power supplies. Full-featured with US & International regulatory listings, the FPO series is applicable in most applications.

Features:

• VSelect - One single switch for configuring the output between 12 and 24VDC eliminates field errors and allows for the reduction and simplification of service inventory by eliminating the necessity of stocking units in each voltage.
• TruWatt - Output power capability of the power supply remains constant regardless of the output voltage setting. For example, a Flexpower 250 watt supply will provide 10 amps at 24VDC and 20 amps at 12VDC, allowing the same number of locking devices to be used at either the 12 or 24V setting.
• SureCharge - The microprocessor controlled constant current charging process used by the FPO power supply guarantees proper charging current for the battery and the fastest charge time without stress or damage to the battery.
• FlexConnect - Power supply and accessory board interconnection system uses common mounting footprints, predrilled mounting holes, snap-in standoffs, pluggable wires, and a dual buss distribution architecture to simplify installation and service.
• Datalink - Key power functions are monitored and reported through PC or browser interface with the PowerCom management software.
• GreenSmart - Flexpower systems are RoHs compliant, lead-free, and meet the latest state, federal and European requirements for energy efficiency.

Specifications:

• Input: FPO75, FPO150, FPO250 : 110VAC ±10%, 50/60Hz
• Outputs:
• DC1 output continuous
• DC2 output switched on FAI Input
• Overload & short circuit protection with auto-restart
• Battery Backup:
• Built-in microprocessor controlled smart charger
• Charges Sealed Lead Acid (SLA) or Lithium Iron Phosphate
• Auto switchover to battery with zero transfer time
• Integrated low battery cutoff
• Supervision:
• AC fail, Battery fail, System fault (form "C")
• Low power shutdown when battery voltage too low
• Fire Alarm Disconnect Activation:
• DC voltage: 9 to 33VDC, 3 to 15mA
• Dry contact NO/NC
• Optional Fire Alarm latching
• LED Visual Indicators: AC input, DC output, system faults, fire alarm activation
