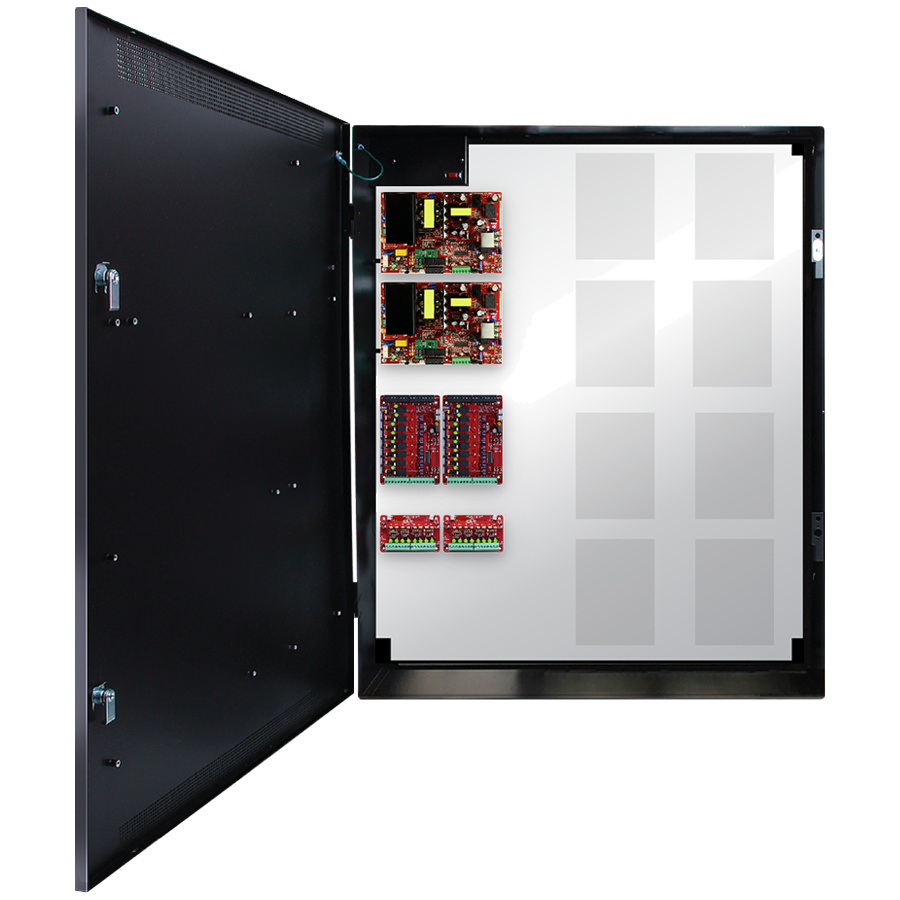

Lifesafety Power FPO150/250-2C82D8PE8M2 16 Doors E8 Enclosure, Mercury-Compatible Backplate, Dual Voltage Power Supply

Lifesafety Power Inc FPO150/250-2C82D8PE8M2 is a robust dual voltage power supply designed to enhance your access control systems with reliability and efficiency. With the capability to support up to 16 doors, this unit features an E8 enclosure and is compatible with Mercury Security hardware, ensuring a seamless integration within your security framework. This power supply offers dual voltage options of 12V/12A or 24V/6A for the FPO150 variant, and 12V/20A or 24V/10A for the FPO250 variant, providing a total output of 150W or 250W respectively. The integrated fire alarm interface ensures safety and compliance, while the continuous and resettable DC outputs allow for flexible operational setups. Key features include sixteen controlled outputs, each fused at 3A, and sixteen auxiliary outputs limited to class II power at 2.5A. The durable painted steel enclosure simplifies installation with pre-wired power sections and pre-punched knockouts, enhancing labor efficiency. With added benefits like a built-in 2A charger for sealed lead acid batteries, automatic switchover to battery backup during AC failures, and comprehensive visual indicators for system faults, the FPO150/250-2C82D8PE8M2 is designed to deliver dependable performance for demanding security environments.

16 Doors, E8 Enclosure, Mercury-Compatible Backplate, 150W and 250W Dual Voltage Power Supply, 2 x 8 Output Lock Module - Fused, 2 x 8 Output Auxiliary Distribution Module - Class 2 Power Limited

Mercury unified power systems combine system power, lock power and distribution alongside Mercury Security LP series access hardware in one compact and secure UL listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed. MCLASS unified power systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL listed solution. This unit is a 12V and 24V DC dual voltage access power system. Dual C8 lock control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Dual D8 modules provides sixteen auxiliary class II outputs and each output is configurable for 12 or 24VDC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Sixteen auxiliary, class II power limited at 2.5A each
• Sixteen controlled, fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Removeable backplate simplifies installs
• Pre-defined hole pattern for power section
• Access panels mount on threaded standoffs - no drilling required
• Additional benefits:
• Wire management room
• 6.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 452 Watts
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• FPO150: 12V/12A or 24V/6A | 150 Watts
• FPO250: 12V/20A or 24V/10A | 250 Watts
• Outputs: Continuous (DC1) Resettable (DC2)
• 16 control outputs, fused at 3A each
• 16 auxiliary outputs, class II power limited at 2.5A each
• 120 mV output voltage ripple
• System Efficiency: 87% | System BTU Rating: 175 BTU/Hr
• Battery Charging:
• Independent built-in 2A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 12 or 24 V battery sets
• Charges up to 80Ah battery sets within UL limit
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• C8: DC input/output and fault
• D8P: DC outputs
• Enclosure Dimensions: Size: 36.00H x 30.00W x 6.50D in. (91.00 x 76.00 x 16.50 cm) | Weight: 80 lbs.
