Lifesafety Power FPO75-B100C4PE1M E1 Enclosure, Mercury-Compatible Backplate, 75W Dual Voltage Power Supply, 4 Output Module

Lifesafety Power Inc FPO75-B100C4PE1M is a robust dual voltage power supply designed for secure access control applications, accommodating two doors with an E1 enclosure. This unit features a 75W power supply that operates on both 12V and 24V DC, ensuring versatile performance tailored to your specific security needs. The integrated C4P lock control module enhances functionality with four access control inputs and outputs, easily programmable for failsafe or fail secure operation. A standout feature of the FPO75-B100C4PE1M is its onboard fire alarm interface, which complies with the safety codes required in Oregon and Washington. The enclosure, crafted from painted steel, includes a tamper switch, lock, and two keys for added security. Installation is simplified with pre-wired sections and pre-punched knockouts, while the flexible backplate mounting ensures a hassle-free setup. Additional benefits include a built-in 1A battery charger for sealed lead acid or gel-type batteries and automatic switchover to battery backup during AC failures, ensuring continuous operation. With visual indicators for AC input and system faults, you can easily monitor the system's status. The compact dimensions of 14.00H x 12.00W x 4.50D inches make it an ideal choice for efficient security management.

2 Doors, E1 Enclosure, Mercury-Compatible Backplate, 75W Dual Voltage Power Supply, 4 Output Lock Distribution Module - Class 2 Power Limited, Required by Code for Oregon Washington

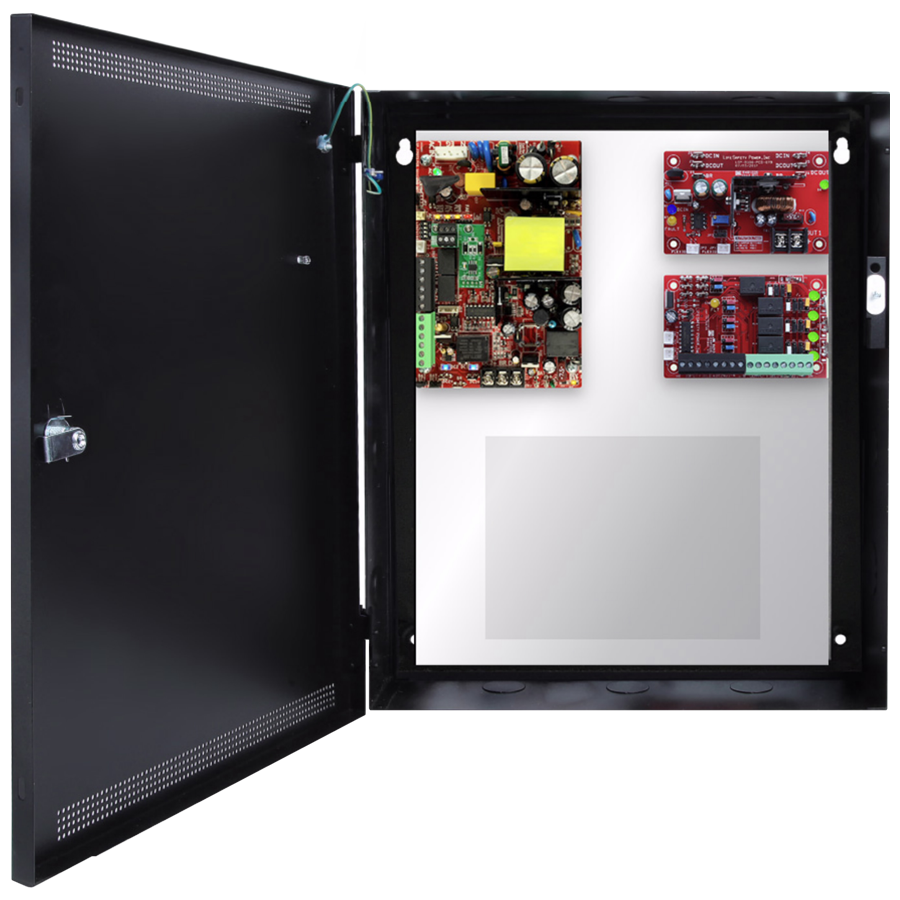

Mercury Unified Power systems combine system power, lock power and distribution alongside Mercury Security LP Series access hardware in one compact and secure UL Listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed. MCLASS Unified Power Systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL Listed solution. This unit is a 12V and 24V DC dual voltage access power system. The C4P lock control module provides four access control inputs capable of voltage or dry contact activation, and four outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed output module: Four, controlled class II power limited at 2.5A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Preinstalled brackets hold two Salto controllers
• Flexible backplate mounting locations
• Access panels mount on threaded studs - no drilling required
• Additional benefits:
• Wire management room
• 4.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 83 Watts (0.69A)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 2A@12V and 2A@24V DC, 75W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 4 controlled outputs, fused at 3A each
• 120 mV output voltage ripple
• System Efficiency: 83% | System BTU Rating: 33 BTU/Hr
• Battery Charging:
• Independent built-in 1A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 24 V battery sets
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts) System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire Alarm Input activated
• B100: DC input, output and fault
• C4P: DC output and fault
• Enclosure Dimensions: Size: 14.00H x 12.00W x 4.50D in. (35.00 x 31.00 x 11.50 cm) | Weight: 14 lbs
