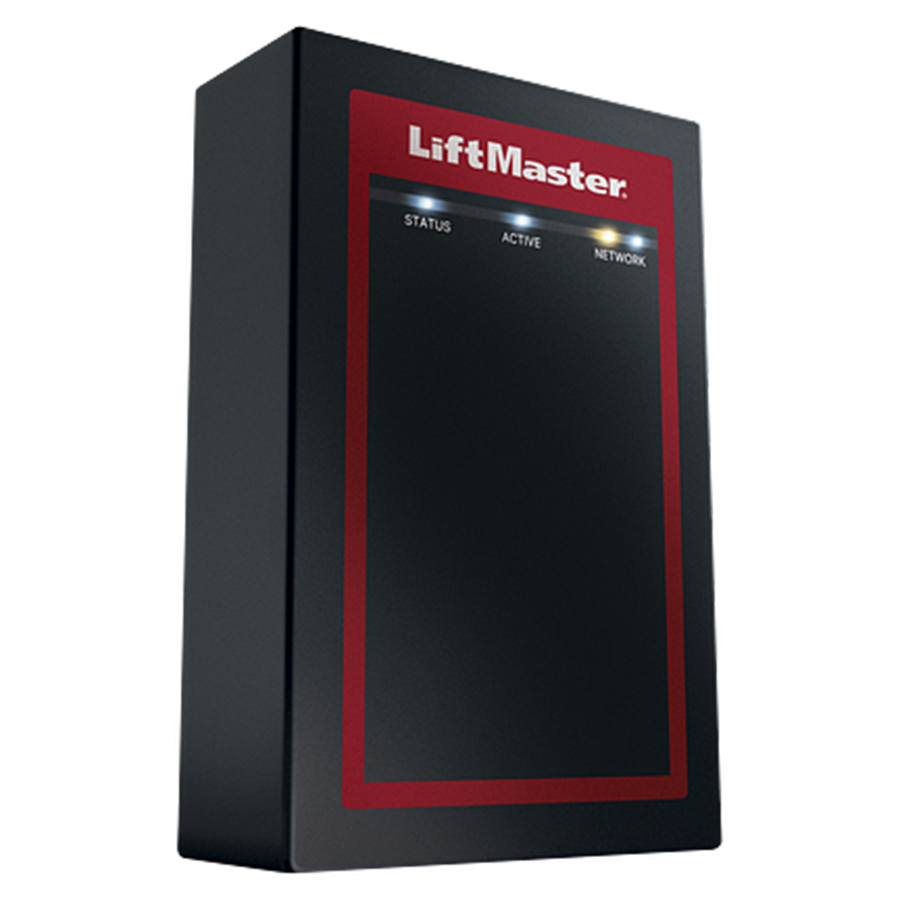

Liftmaster CAP2D Smart Access 2-Door Controller, 25000 Users, Audit Trail, PoE, UL

LiftMaster CAP2D Smart Access is a robust 2-Door/Gate Controller designed to streamline access management for both residential and community amenity points. With the ability to handle up to 25,000 active credentials, this controller ensures that residents have seamless entry even during internet outages. Its cloud-based architecture, paired with myQ Community, allows for real-time activity tracking, remote programming, and comprehensive monitoring. The CAP2D eliminates the need for extensive wiring between multiple access points, making installation straightforward in both new and existing properties. Featuring universal compatibility with various Wiegand input formats, including 26, 30, and 37-bit, it integrates effortlessly with existing security systems. The compact design allows it to be mounted on a standard single electrical-gang box or within a NEMA enclosure, while built-in LED indicator lights communicate system status. With Power over Ethernet (PoE) capabilities, you can place devices flexibly, and the backup lithium battery ensures data preservation during power outages. The system also comes with over 75 customizable email alerts, enhancing security by notifying you of events like door ajar or forced entry. Operating effectively in extreme temperatures ranging from -31°F to 150°F, the LiftMaster CAP2D is UL 294 listed, making it a reliable choice for any access control needs.

Smart Access, 2-Door/Gate Controller with Enclosure, 25000 User, Audit Trail, Wiegand, 4 Relay, Elevator Access, PoE, 12VDC, UL

A behind the scenes powerhouse, the CAP2D provides a scalable cloud-based solution to easily manage and control access independently or as part of a complete system for resident only and community amenity access points.

Features:

• Multiple-Entrance Control: With myQ community.
• Eliminates Wiring: Between controllers in multiple-entrance applications with myQ Community.
• Universal Compatibility: With 26-, 30- and 37-bit Wiegand compatible readers, receivers and readers.
• Expansive Capacity: For 25,000 active credentials stored locally so residents can enter even when the Internet is down.
• Remote Programming: And activity monitoring using myQ Community.
• Easy to Install: In new or existing properties.
• Backed-up Storage: myQ Community ensures that databases are never lost and a backup lithium battery preserves the system’s data during primary power outages.
• Power over Ethernet (PoE): Allows for flexibility of device placement.
• Email Alerts: Over 75 alerts available including door ajar, door closed, door forced open, gate ajar and too many invalid pins.
• Real-time Activity Tracking: With myQ Community.
• Cloud-based Security: Keeps data protected and safeguards resident information.

Specifications:

• 2 controlled gates/doors
• 25,000 local resident capacity
• 6,000 local event history (FIFO) offline from host
• Multiple, holiday and hold-open scheduling
• Compatible Wiegand Input formats: 26 Bit, 30 Bit, 37 Bit (HID) and 32 Bit (MiFare)
• No facility code limitations (1–256 for 26-Bit); feature available to ignore facility code
• Compact size mounts on standard single electrical-gang box or in a NEMA enclosure
• LED indicator lights communicate status
• Operating Temperatures: -31°F to 150°F (-35°C to 66°C)
• 12VDC, min. 1.5 amps (transformer not included)
• PoE (802.3af) enabled network devices, 13 watts max.
• UL 294 Listed
• Backup lithium battery preserves the system’s data during primary power outages

Resources

• Spec Sheet
