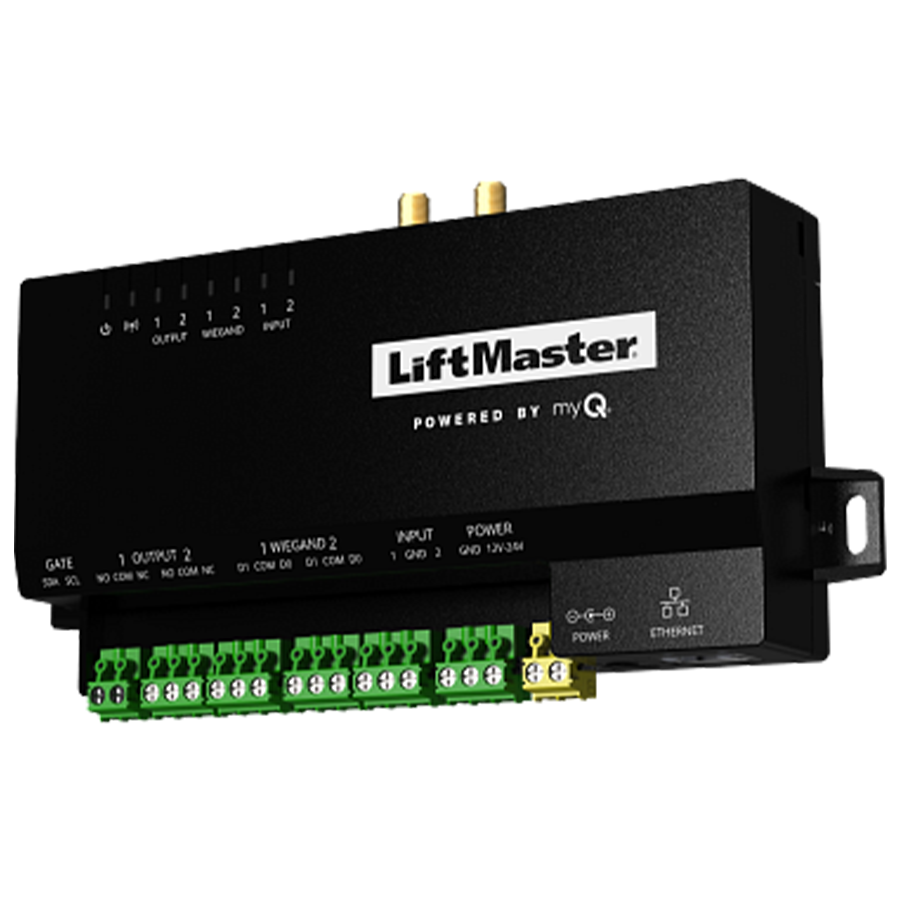

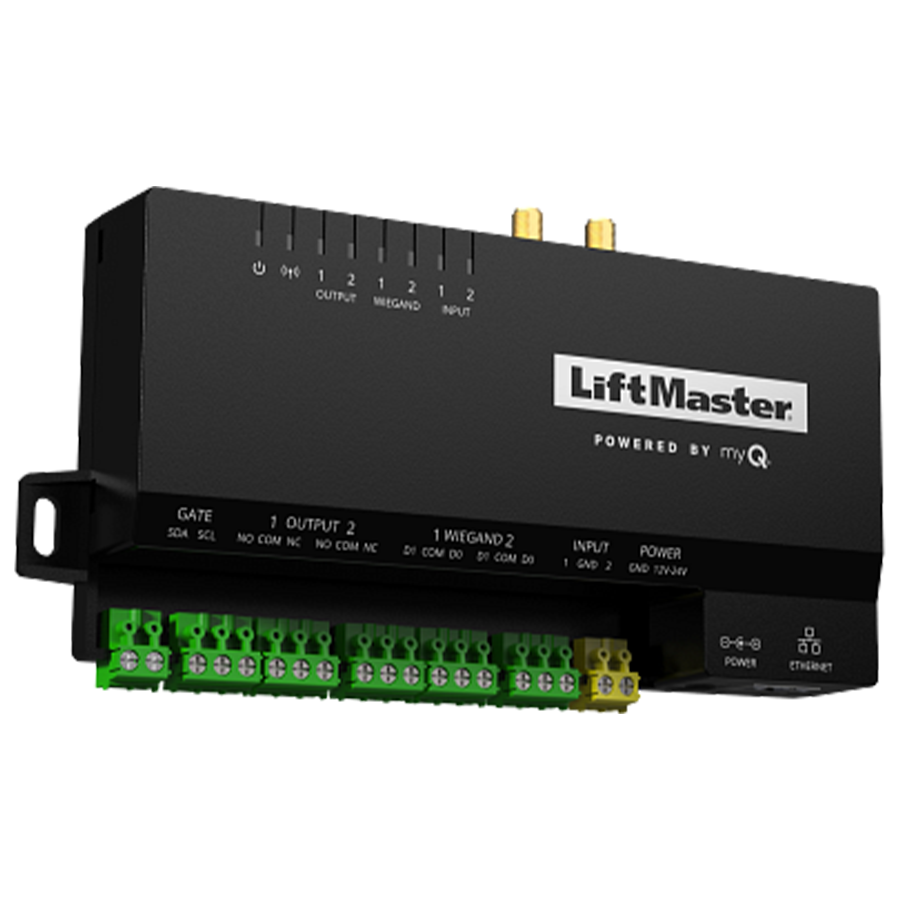

Liftmaster CAPAC Smart Access Hub, 4 Door Controller, 50000 Users, 4G LTE, Black

LiftMaster CAPAC Surface Mount Smart Access Hub offers a seamless, cloud-based solution for monitoring and controlling access points without the need for a complete system upgrade. Designed for communities, this smart access hub allows for the management of up to four gates and doors, ensuring easy and secure access for both residents and their guests. With a robust local user capacity of 50,000, the CAPAC supports flexible connectivity options, including Ethernet, Wi-Fi, and cellular, making it versatile for various setups. The myQ Community app enhances the user experience, allowing residents to unlock entrances directly from their smartphones, either for themselves or through virtual guest passes. This durable hub, housed in an ABS plastic enclosure, operates efficiently across a wide temperature range from -20°F to 130°F. It features two primary relay outputs and supports various Wiegand output data formats, including 26-bit and 32-bit MiFare. Enhanced security protocols, including two-factor authentication, safeguard residents’ information while meeting ISO/IEC 27001:2013 standards. Dimensions of 7.4"W x 3.9"H x 1.3"D make installation straightforward, while its professional design fits seamlessly into any environment. The LiftMaster CAPAC Smart Access Hub is the perfect blend of convenience, security, and advanced technology for modern access control needs.

Surface Mount, Smart Access Hub with ABS Plastic Enclosure, 4 Door/Gate Controller, 50000 User, Audit Trail, 4G LTE, 125khz, 13.56 MHz, Wiegand, 6-24VDC, UL, Black

The CAPAC smart access hub provides communities an affordable cloud-based option to monitor and control access points without needing to upgrade the entire system. Adding the myQ Community app to the monthly subscription lets residents unlock access points for themselves and their guests, giving them easy access, sophisticated security and reliable service.

Features:

• Provides communities an affordable cloud-based option to monitor and control access points without needing to upgrade the entire system.
• myQ Community web platform lets you conveniently manage and control multiple access points across all communities in your portfolio from a single dashboard.
• Adding myQ Community app licenses to the monthly subscriptions lets residents unlock access points for themselves and their guests, or send virtual guest passes giving them easy access, sophisticated security and reliable service.
• Flexible connectivity options – Ethernet, Wi-Fi and Cellular
• Monitor and Control up to 4 gates and/or doors.
• Flexible connection options to monitor and control up to 4 access points (vehicle, pedestrian, amenity gates, door strike, or maglock).
• Cloud-Based Security: Two factor authentication protects and safeguards residents’ information and conforms with the requirements of ISO/IEC 27001:2013.
• Residents can unlock any authorized entrance from their smartphone at any time.

Specifications:

• Mounting Base: Surface mount
• Local User Capacity: 50000
• Max Number Of Gates/Doors of control (Each): 4
• Connectivity: Wi-Fi/Cellular/Ethernet
• Dimensions: 7.4"W x 3.9" H x 1.3" D
• Wiegand Output Data Format: 26-bit, 30-bit, 32-bit MiFare, 37-bit
• Power Supply: 6-24VDC - power supply not included
• Smartphone Control: myQ Community app
• Event History: 50000
• Relay Output: 2 primary
• Software: myQ Community
• Operating Temperature: -20 ˚F to 130 ˚F (-29 ˚C to 54 ˚C)
