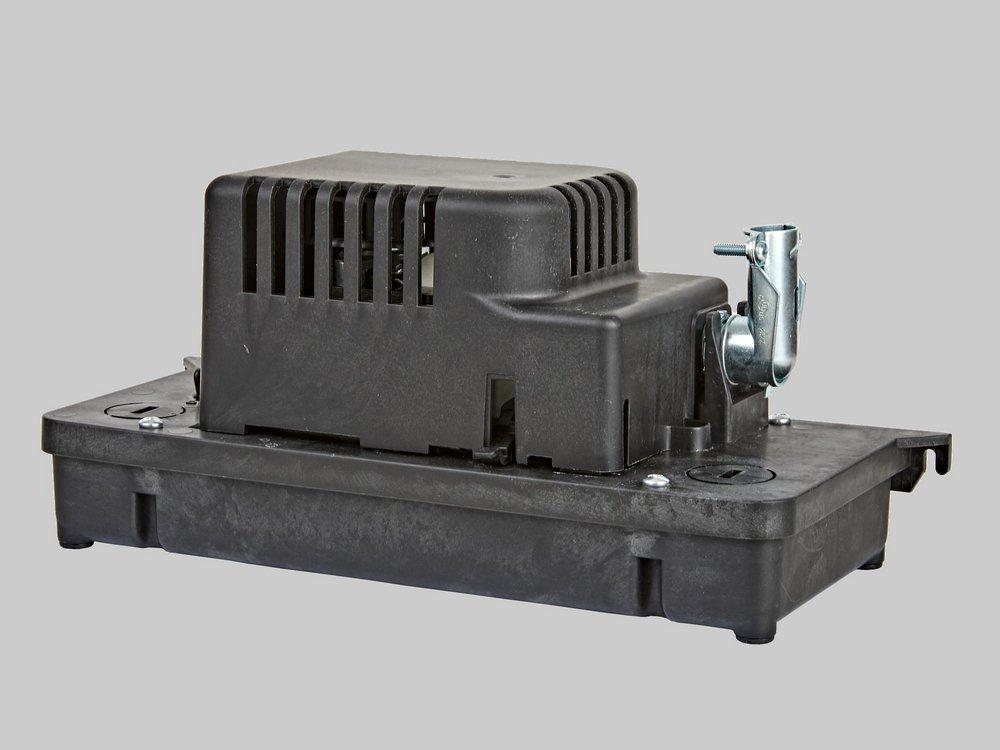

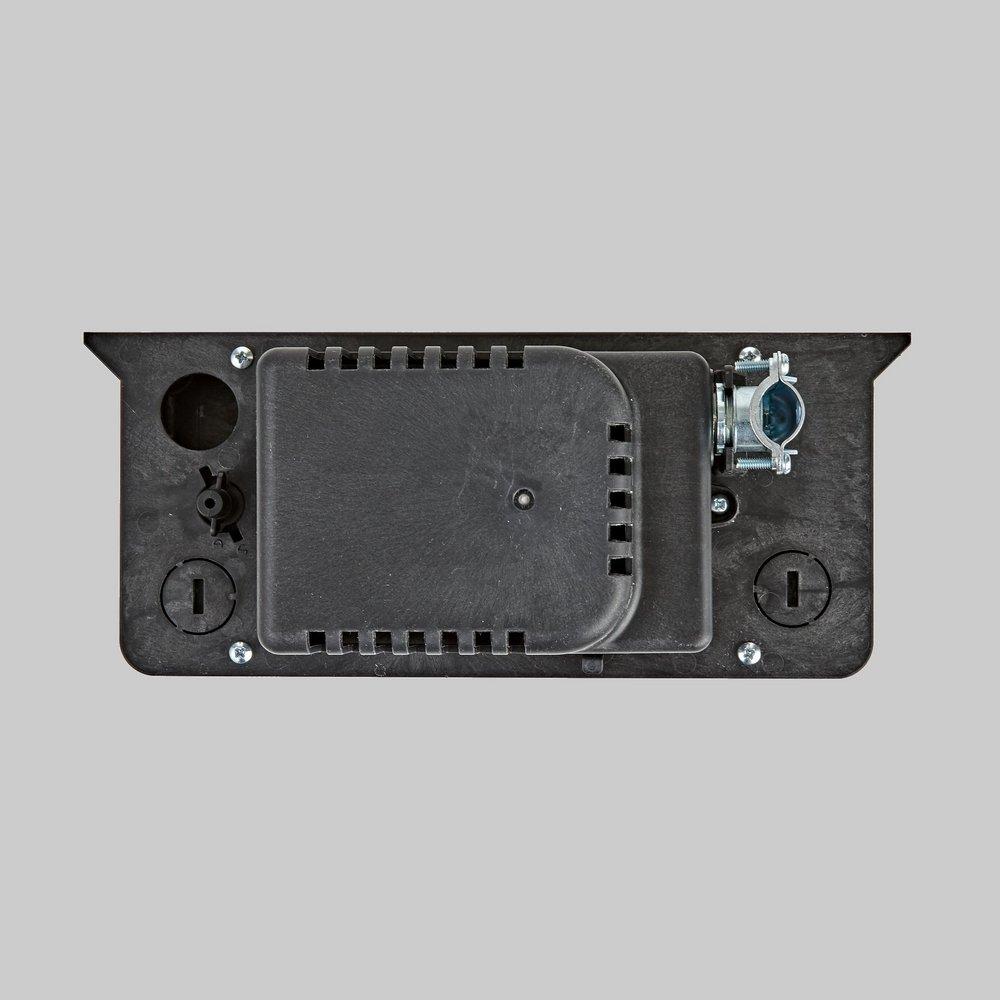

Little Giant 554221101 115V Condensate Removal Pump is engineered to tackle the demands of both residential and commercial environments with efficiency and reliability. With a powerful 1/30 hp motor, this pump is designed for plenum applications, adhering to UL 2043 standards for safety and performance. The pump boasts a low-profile tank height of just 1-3/4 inches, making it an ideal solution for tight spaces where conventional pumps may not fit. Its vertical centrifugal design enhances its ability to effectively remove condensate, while the 1.2-quart (1.1 liters) capacity tank enables continuous operation. Featuring an automatic start and stop switch, users can enjoy hassle-free operation, as the pump activates when needed and shuts off when not in use. Equipped with a 3/8-inch O.D. barbed discharge adapter that includes a built-in check valve, the Little Giant pump ensures efficient discharge and prevents backflow. The float-activated auxiliary high-level switch provides an added layer of protection, alerting users to potential issues. With a maximum flow rate of 80 gallons per hour and a maximum head of 20 feet, this pump is capable of managing various condensate removal tasks effectively. Constructed from durable polypropylene, the pump's motor is thermally protected and fan-cooled, ensuring longevity and dependable performance. Easy to install with a 6-foot cord length, the Little Giant 554221101 is a trusted choice for those seeking a reliable and efficient condensate removal solution. Ideal for both builders and knowledgeable homeowners, this pump seamlessly integrates into any system, enhancing overall efficiency in kitchens and bathrooms.
115V Condensate Removal Pump
Ship via: No UPS - Common Carrier Only
AMP: 1.5
Automatic Shut- Off: Yes
CSA Certified: Yes
Capacity: 0.3 gal
Collection: VCC-20-P Series
Cord Length: 6 ft
Depth: 5-6/25 in
Discharge: 3/8 in
End Connection 1: Barbed
End Connection 2: Barbed
End Connections: Barbed
Flow Rate: 80 gph
Frequency: 60
Height: 5-6/25 in
Horsepower: 1/30 hp
Impeller: Polypropylene
Length: 11.9900 in
Material: Plastic
Material Type: Polypropylene
Maximum Feet of Head: 20
Maximum Temperature: 140
Origin: Global
Power Source: Electric
Pump Body Material: Plastic
Pump Mounting: Vertical
Pump Phase: 1
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
UL Listed: UL 2043
Upc: 029753005834
Volts: 115V
Watts: 93 W
Width: 5-3/100 in
