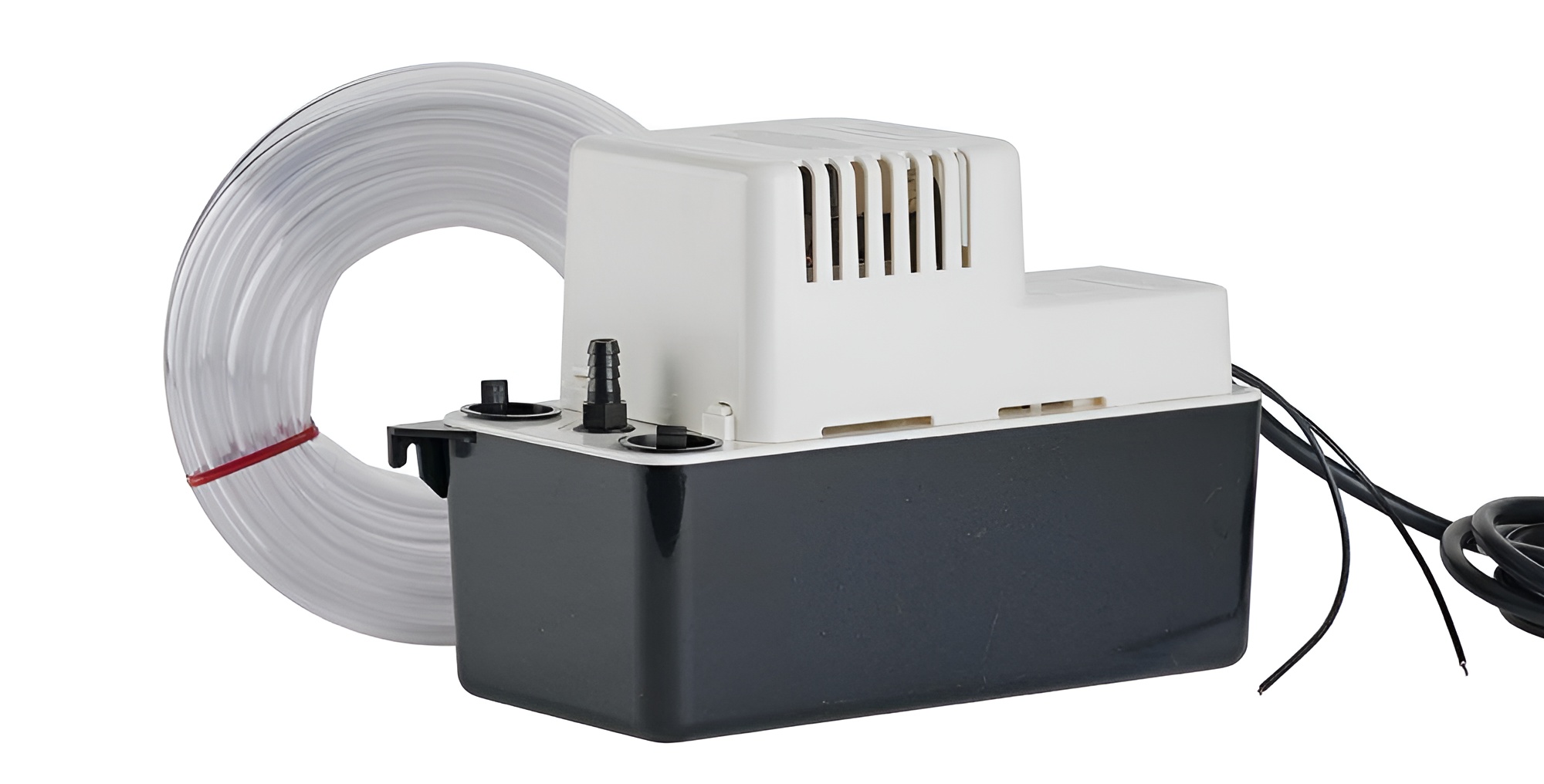

Little Giant 554415 115V Condensate Removal Pump with Safety Switch Tubing
Images may not represent actual product and finish

Little Giant 554415 115V Condensate Removal Pump with Safety Switch Tubing

Your Price: $62.88
Retail Price:$135.000
Your Savings:$72.12(53%)
The Little Giant 554415 Condensate Removal Pump efficiently removes wastewater in tight spaces, featuring automatic operation, a safety switch, and durable construction for reliable performance.
Part Number : LGT_554415
Availability: 10 In Stock
Little Giant 554415 115V Condensate Removal Pump with Safety Switch Tubing

Little Giant 554415 115V Condensate Removal Pump with Safety Switch Tubing efficiently removes condensate and wastewater from areas where gravity drainage is not feasible. Designed for high-efficiency furnace condensation applications, this pump features a thermally protected, fan-cooled motor that ensures reliable operation and longevity. The stainless steel shaft enhances durability while the polypropylene impeller contributes to optimal performance, providing a flow rate of 65 gallons per hour. Automatic operation is facilitated through a float switch, which activates the pump when needed, ensuring that your space remains free from excess water. Additionally, the safety switch models can be wired to trigger an alarm or shut down the air conditioner, preventing potential overflow and protecting your property from water damage. The compact design of the pump measures just 10.3 inches in length and 7 inches in height, making it easy to install in tight spaces. With a discharge pressure of 6.5 psi and a maximum head of 15 feet, it’s well-suited for various applications, including water treatment. The pump's ABS plastic construction ensures it can handle the rigors of daily use. Equipped with a 6-foot power cord and barbed end connections, this unit is versatile and straightforward to integrate into your existing plumbing system. The Little Giant 554415 is not only a practical solution for managing condensate but also a product that underscores quality and innovation in plumbing technology.

115V Condensate Removal Pump with Safety Switch Tubing

AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers THERMALLY PROTECTED MOTOR: 1/50 HP, 1 Amp, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA listed in the USA and Canada BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards INCLUDES SAFETY SWITCH and 20-FT VINYL TUBING: safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8-inch OD barbed discharge, 65 GPH at 1-foot head, 15-foot shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, safety switch and 20-ft. tubing included Safety switch models can be wired to sound alarm or shut down air conditioner to prevent overflow Pump enclosure/mounting bracket

Attributes

AMP: 1

Collection: VCMA-15 Series

Connection Type: Barbed

Cord Length: 6 ft

Discharge: 3/8 in

Discharge Pressure: 6.5

End Connection 1: Barbed

End Connections: Barbed

Flow Rate: 65 gph

Frequency: 60

Height: 7 in

Horsepower: 1/50 hp

Impeller: Polypropylene

Length: 11 in

Material: Plastic

Material Type: ABS

Maximum Feet of Head: 15

Power Source: AC

Proposition 65: WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov

Pump Application: Water Treatment

Pump Body Material: Plastic

Upc: 010121544154

Volts: 115V

Watts: 60 W

Width: 5 in
