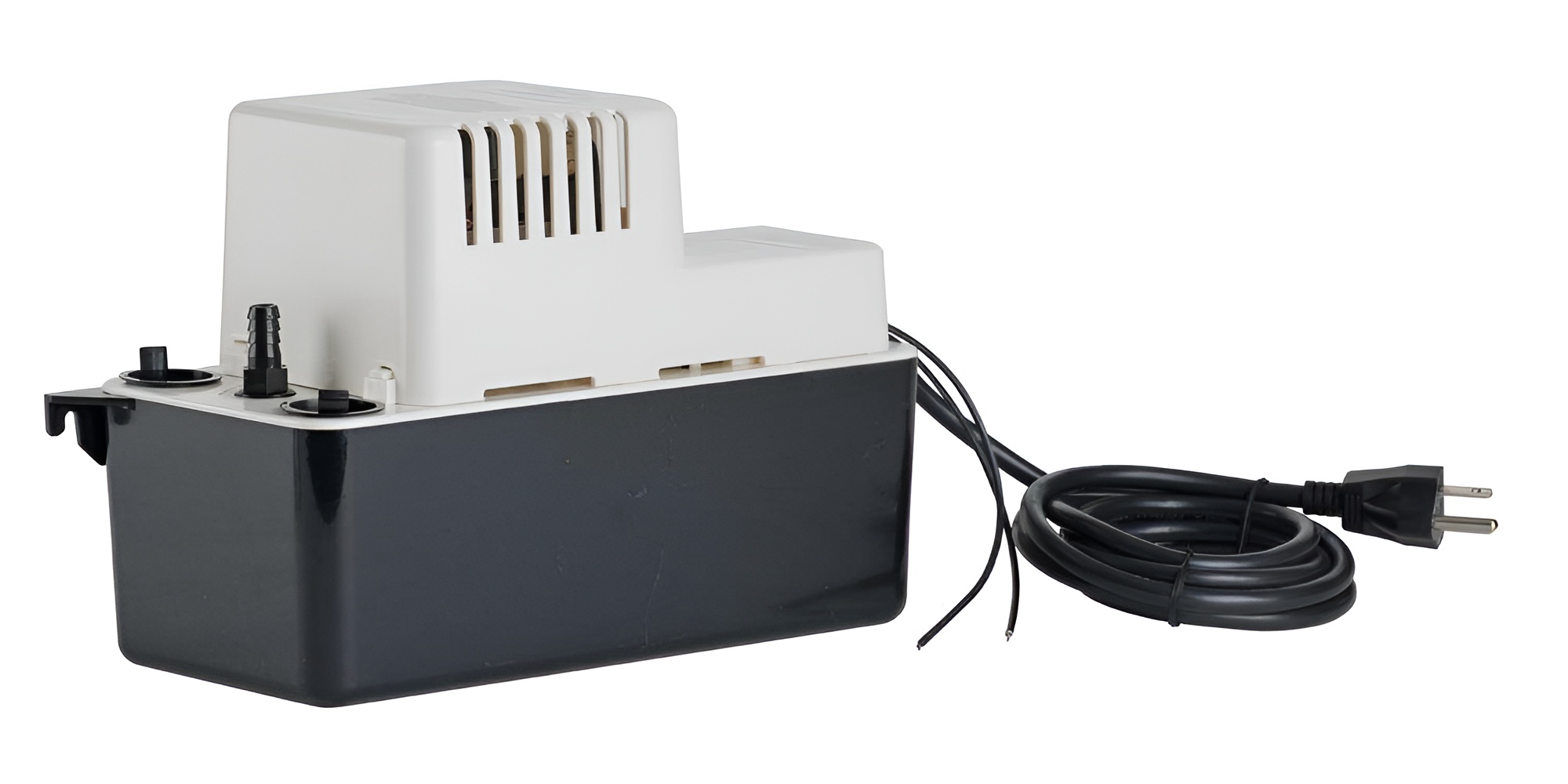

Little Giant 554425 115V Condensate Removal Pump with Safety Switch
Images may not represent actual product and finish

Little Giant 554425 115V Condensate Removal Pump with Safety Switch

Your Price: $67.20
Retail Price:$149.000
Your Savings:$81.80(55%)
The Little Giant 554425 Condensate Removal Pump efficiently removes wastewater with automatic operation, safety switch, and durable construction for reliable performance in tight spaces.
Part Number : LGT_554425
Availability: 242 In Stock
Little Giant 554425 115V Condensate Removal Pump with Safety Switch

Little Giant 554425 115V Condensate Removal Pump with Safety Switch effectively removes condensate and wastewater from spaces where gravity drainage is not feasible. This pump is equipped with a thermally protected, fan-cooled motor that ensures reliable performance while preventing overheating. Designed with a backflow-preventing check valve and three inlet drain holes, it provides versatile installation options and optimal functionality. Automatic operation is facilitated by a float switch, allowing the pump to activate as needed without manual intervention. This feature is particularly beneficial in high-efficiency furnace applications, where excess condensation can lead to water damage if not properly managed. The safety switch model can be wired to trigger an alarm or shut down the air conditioning system, preventing overflow and safeguarding your property. With a maximum discharge pressure of 8.6 feet and a flow rate of 80 gallons per hour, this pump delivers impressive performance. It operates on standard 115V power and consumes only 93 watts, making it an energy-efficient choice for managing wastewater. The compact design, measuring 10.3 inches in length, 5 inches in width, and 7 inches in height, allows for easy installation in tight spaces, while the 6-foot cord length provides flexibility in positioning. Constructed from durable ABS plastic, the pump is built to withstand the rigors of daily use, ensuring long-lasting reliability. Whether in residential or commercial settings, the Little Giant 554425 Condensate Removal Pump offers an ideal solution for efficient moisture management, ensuring your environment remains safe and dry.

115V Condensate Removal Pump with Safety Switch

AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers HIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and Canada BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards PUMP WITH SAFETY SWITCH: can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow SPECIFICATIONS: 3/8-inch OD barbed discharge, 80 GPH at 1-foot head, 20-foot shut-off, up to 8.7 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, equipped with safety switch Suitable for high-efficiency furnace condensation Safety switch models can be wired to sound alarm or shut down air conditioner to prevent overflow

Attributes

AMP: 1.5

Connection Type: Barbed

Cord Length: 6 ft

Depth: 11 in

Discharge: 3/8 in

Discharge Pressure: 8.6

End Connection 1: Barbed

End Connections: Barbed

Flow Rate: 80 gph

Frequency: 60

Height: 7 in

Horsepower: 1/3 hp

Impeller: Polypropylene

Length: 11 in

Material: Plastic

Material Type: ABS

Maximum Feet of Head: 20

Power Source: AC

Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov

Pump Application: Water Treatment

Pump Body Material: Plastic

Upc: 010121544253

Volts: 115V

Watts: 93 W

Width: 5 in
