Locknetics MDS100-32D Electric Strike for Mortise Lock Installation Guide

Locknetics MDS100-32D Mortise Lock Electric Strike offers a robust solution for securing commercial entrances with its heavy-duty design. This electric strike is tailored for use with both heavy-duty mortise and cylindrical lock sets, ensuring versatility in various applications. The MDS100 features a low-profile design and comes with five interchangeable faceplates, allowing for flexible installation in either wood or metal frames. Engineered for durability and reliability, the MDS100 operates on 12/24 VDC, drawing a modest .3A at 12V or .15A at 24V, making it an efficient choice for modern security systems. Its fail-safe/fail-secure functionality ensures that you can choose the security level that best fits your needs. This electric strike is part of Locknetics’ comprehensive range of electric strikes, including the CS, MS100, and RS series, each designed to meet specific installation requirements. The MDS100 is finished in a sleek matte silver (630/US32D), enhancing both aesthetics and functionality. Weighing only 2 lbs., it’s easy to handle and install. Trust Locknetics to deliver a secure, adaptable, and reliable solution for your door hardware needs.

Mortise Lock Electric Strike

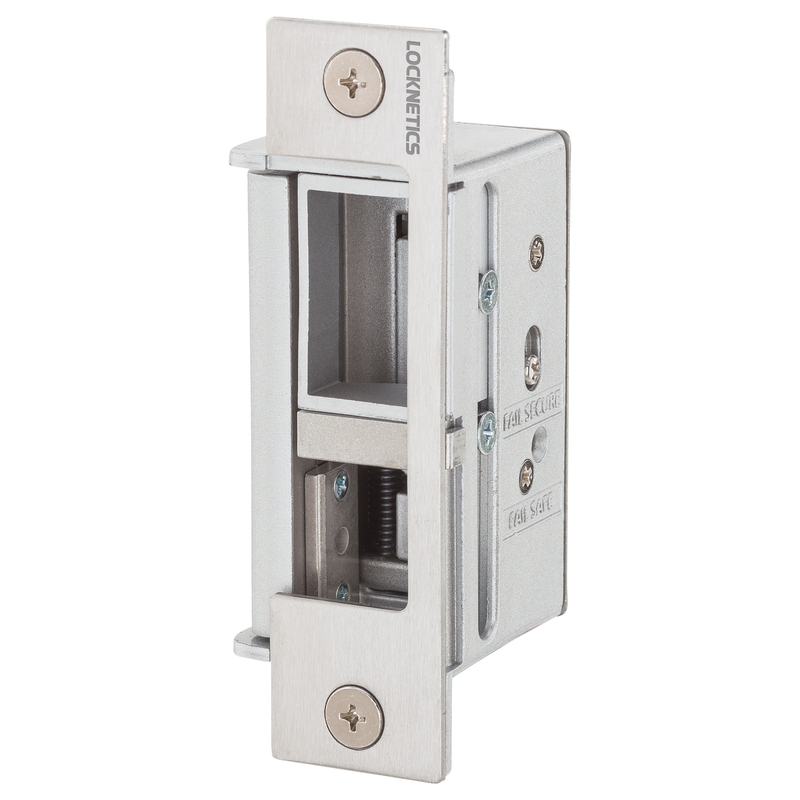

MDS Series 100 Model Electric Strike, 1 Inch Deep, 5 Faceplates, Satin Stainless Steel

The MDS100 Series electric strike is designed for use with heavy duty mortise lock sets and cylindrical lock sets. Five different face plates included for optional flexibility of installation in wood or metal frames.

Designed for a variety of lock sets, Locknetics offers electric strikes designed with endurance and adaptability in mind.

Locknetics Electric Strikes come in a number of series designed for various lock sets and exit devices, including the CS, MS100 and RS series of electric strikes.

Details on the individual series include:

• The low, versatile profile CS Series of electric strikes are designed for use with cylindrical lock sets and select mortise lock sets without deadbolt for both metal and wood door frames.
• The MS100 Series electric strike is designed for use with heavy duty mortise lock sets and cylindrical lock sets. Five different faceplates included for optional flexibility of installation in wood or metal frames.
• The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1⁄2" or 3⁄4" throw pullman latchbolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.
