Locknetics MDS100-F-32D Electric Strike for Mortise Lock Installation Guide

Locknetics MDS100-F-32D Mortise Lock Electric Strike offers a robust solution for securing entrances with heavy-duty mortise and cylindrical lock sets. This electric strike features a 1-inch deep design and comes with five interchangeable faceplates, allowing for versatile installation in both wood and metal frames. Its satin stainless steel finish not only enhances aesthetic appeal but also adds to its durability, making it suitable for commercial applications. Engineered for reliability and longevity, the MDS100 is fire-rated, ensuring safety in emergency situations. It supports both fail-safe and fail-secure functionalities, giving you flexibility in security setups. With an operating voltage of 12/24 VDC and an amp draw of .3A at 12V or .15A at 24V, this electric strike is efficient and easy to integrate into existing systems. The MDS100 is part of the Locknetics Electric Strikes series, which includes various options specifically designed for different lock sets and exit devices. Whether you're upgrading an existing setup or implementing new security measures, the MDS100 Electric Strike stands out for its quality, adaptability, and performance, making it an ideal choice for building professionals and knowledgeable homeowners alike.

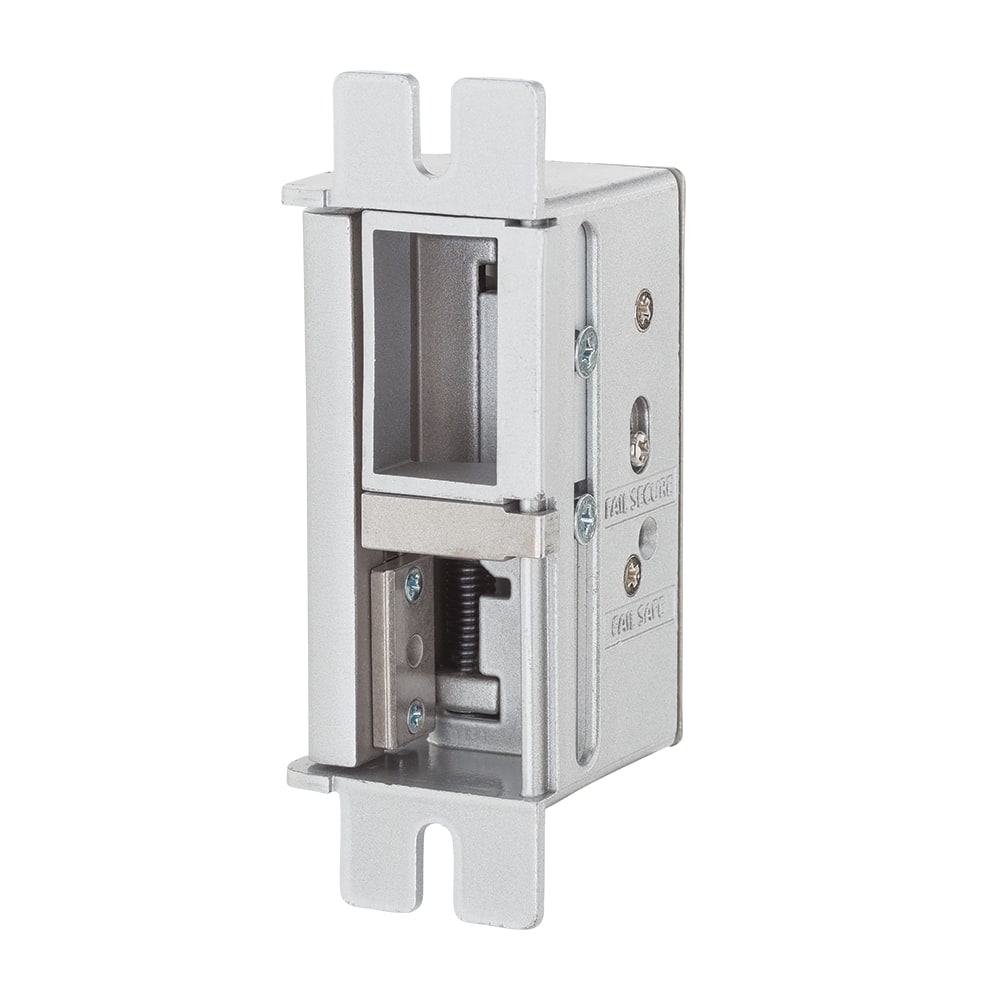

Mortise Lock Electric Strike

MDS Series 100 Model Electric Strike, 1 Inch Deep, 5 Faceplates, Fire Rated, Satin Stainless Steel

The MDS100 Series electric strike is designed for use with heavy duty mortise lock sets and cylindrical lock sets. Five different face plates included for optional flexibility of installation in wood or metal frames.

Designed for a variety of lock sets, Locknetics offers electric strikes designed with endurance and adaptability in mind.

Locknetics Electric Strikes come in a number of series designed for various lock sets and exit devices, including the CS, MS100 and RS series of electric strikes.

Details on the individual series include:

• The low, versatile profile CS Series of electric strikes are designed for use with cylindrical lock sets and select mortise lock sets without deadbolt for both metal and wood door frames.
• The MS100 Series electric strike is designed for use with heavy duty mortise lock sets and cylindrical lock sets. Five different faceplates included for optional flexibility of installation in wood or metal frames.
• The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1⁄2" or 3⁄4" throw pullman latchbolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.
