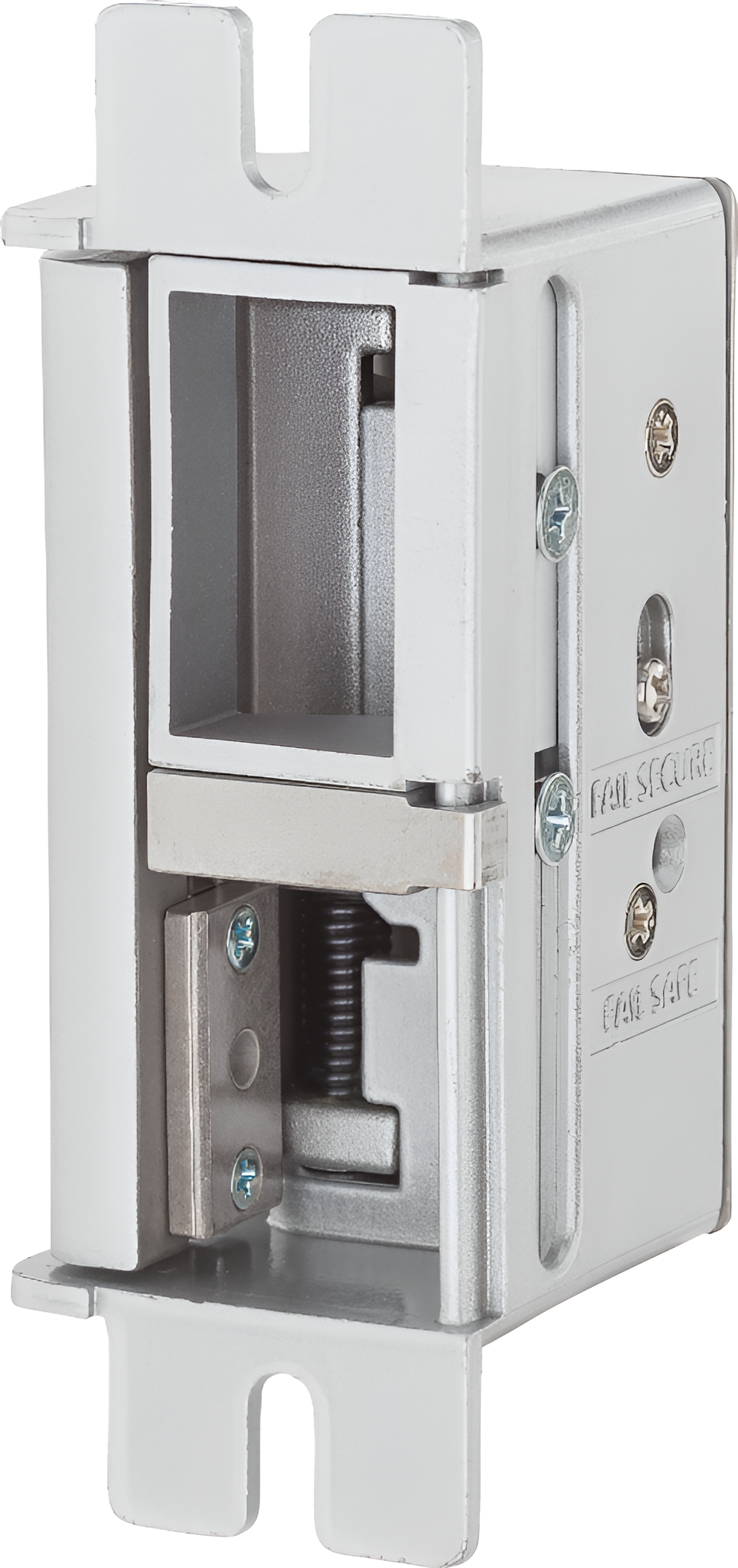

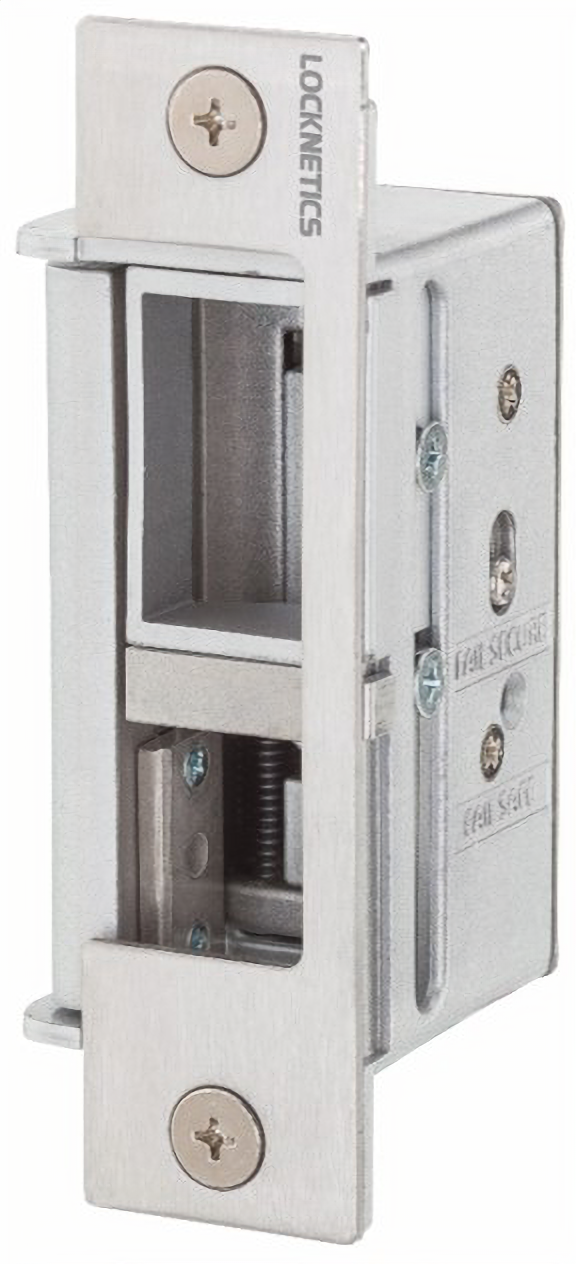

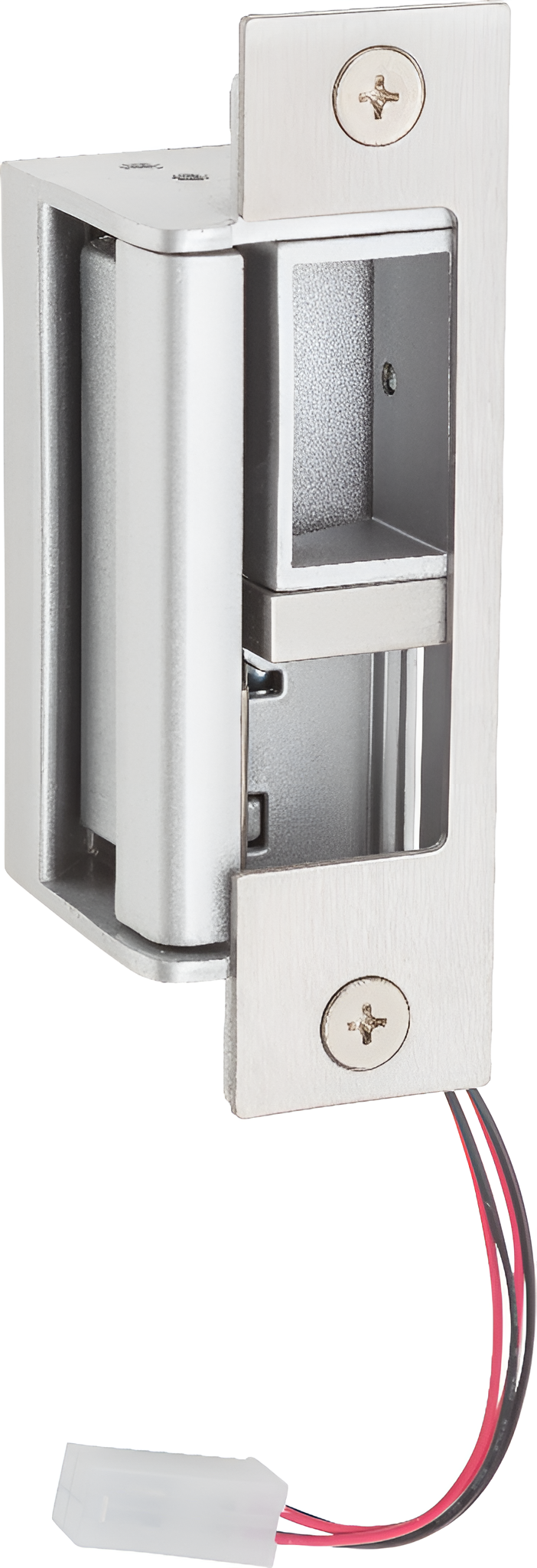

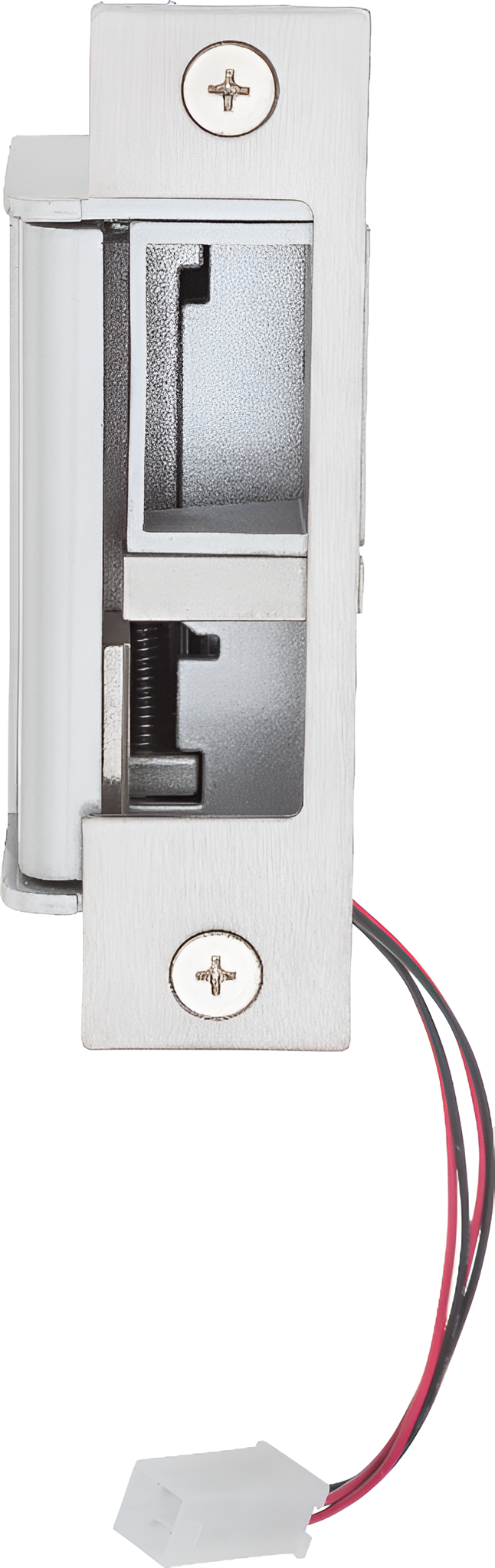

Locknetics MDS100 US32D Mortise E-Strike 1in Deep 12/24VDC is engineered for seamless integration with heavy-duty mortise and cylindrical lock sets. This robust electric strike offers five interchangeable stainless steel face plates, allowing for flexible installation in both wood and metal frames, ensuring versatility across various applications. Designed with durability in mind, the MDS100 features vertical adjustments that accommodate different installation needs. Its field-selectable fail-safe and fail-secure settings (with fail-secure as the default) provide further adaptability, while the included trim piece enhances the overall appearance of the installation. For added convenience, mounting tabs are provided for aluminum frame installations in non-fire rated applications. This electric strike meets stringent safety standards, boasting UL1034 burglary-resistant certification and UL294 indoor listing. With a static strength rating of 1500 lbs and a dynamic load rating of 70 ft-lbs, the MDS100 is built to withstand significant force. It supports dual-voltage options of 12 VDC at .3A and 24 VDC at .15A, and includes a built-in voltage spike suppressor for added protection. With an impressive endurance of 250,000 cycles, this strike is a reliable choice for professionals seeking security solutions.

Mortise E-Strike 1in Deep 12/24VDC

The MDS100 series electric strike is designed for use with heavy duty mortise lock sets and cylindrical lock sets. Five different face plates included for optional flexibility of installation in wood or metal frames.

Features:

• Heavy duty design with vertical adjustments for flexibility
• Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw reversal on non-fire rated models
• Included trim piece for installation flexibility and improved appearance
• Mounting tabs included for aluminum frame installation on non-fire rated doors in non-fire rated applications

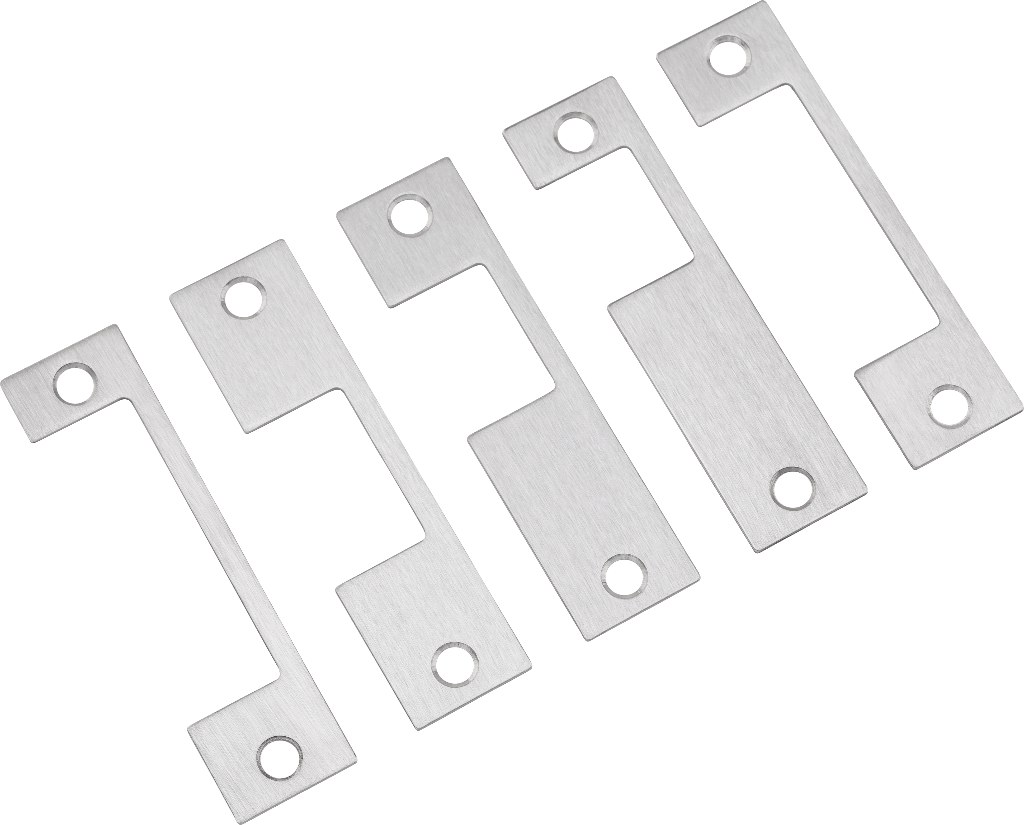

• Five stainless steel face plates included for optional flexibility (4-7⁄8" x 1-1⁄4" with differing cutouts)
• Field selectable 12/24 VDC
• Built-in voltage spike suppressor included

Specifications:

• UL1034 burglary-resistant electric locking mechanisms, listed
• UL294 (indoor), listed
• Static strength of 1500 lb. static load, UL certified
• Dynamic strength of 70ft.-lb. dynamic load, UL certified
• UL10C Fire rated, listed - MDS100-F models only
• 250,000 cycles endurance, UL certified
• Dual-voltage: 12 VDC @ .3A/24 VDC @ .15A
