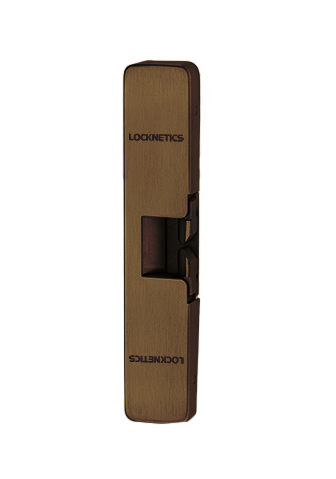

Locknetics RS310-F US10B Rim E-Strike 3/4in Deep Fire offers an exceptional combination of durability and adaptability for your access control needs. This surface-mounted electric rim strike is specifically designed to accommodate rim exit devices with a 3/4" throw pullman latch bolt, making it an ideal choice for various installations. The unit features slotted mounting holes that provide increased adjustment flexibility, ensuring a secure fit in any environment. With a sleek cover case design, the RS310-F not only performs well but also maintains a visually appealing profile. Its field-selectable fail-safe and fail-secure options allow for easy adjustments, while the built-in voltage spike suppressor enhances reliability. This model is UL listed for burglary resistance and is fire-rated for up to 90 minutes, making it a robust choice for safety-conscious installations. The strike boasts impressive specifications, including a static strength of 1500 lb. and a dynamic strength of 70 ft.-lb., both certified by UL. With a remarkable endurance of 250,000 cycles, it promises long-lasting performance. Available in both 630/US32D and 613/US10B finishes, the Locknetics RS310-F is a versatile addition to any security system, emphasizing both functionality and aesthetic elegance.
Rim E-Strike 3/4in Deep Fire
The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1⁄2" or 3⁄4" throw pullman latch bolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.
Features:
Specifications:
Options:
Ship via: Can Ship UPS
Alternate Codes: RS310-F US10B, RS310FUS10B
Category: Access Control, Electric Strikes
