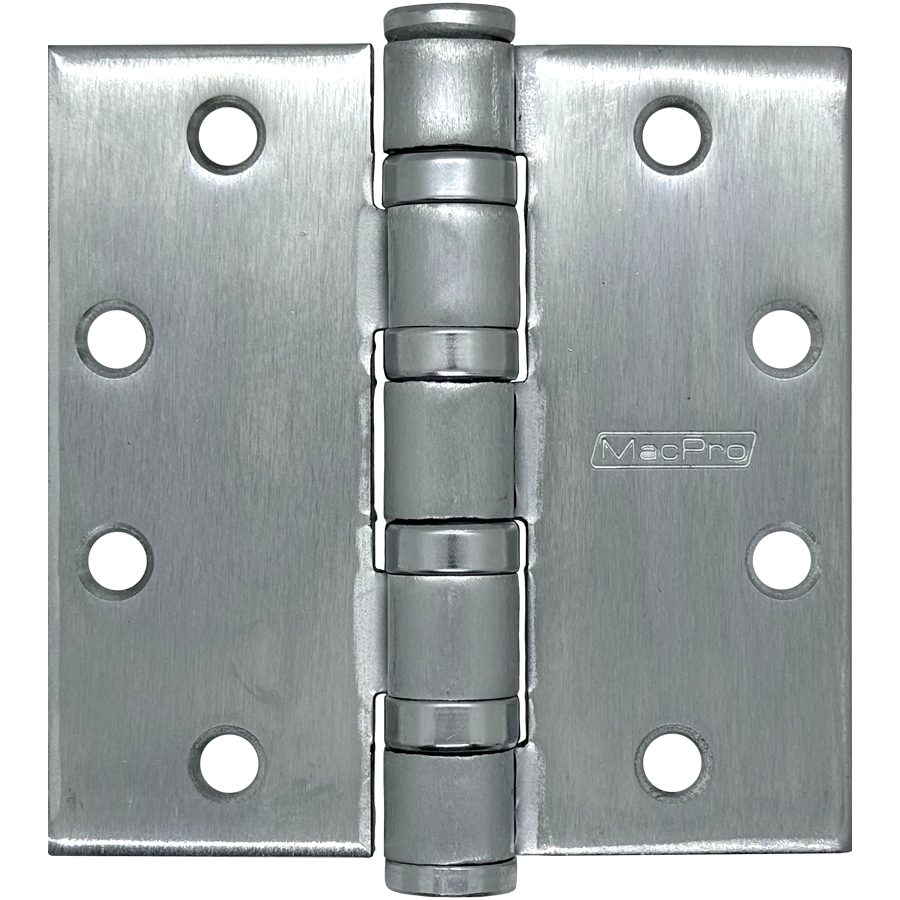

McKinney MPB68 4.5 X 4.5 US26D MacPro 5-Knuckle Heavy Weight Full Mortise Hinge 4.5x4.5in Satin Chrome

Mckinney Products Company MPB68 4.5 X 4.5 US26D MacPro 5-Knuckle Hinge is a top-tier solution for those seeking dependable performance in heavy-duty applications. Designed for full mortise installations, this contractor-grade hinge is ideal for both metal and wood doors, ensuring longevity and stability in high-traffic environments. Its robust steel construction and ball bearing design allow for smooth operation, even on extra heavy or high-frequency doors. This hinge conforms to ANSI/BHMA standards 156.1 and 156.7, reflecting its quality and reliability. The non-removable pin (NRP) option enhances security, making it an excellent choice for doors equipped with closing devices. The MPB68 hinge features a square corner shape and is non-handed, offering versatility for various installation needs. With a satin chrome finish (652/US26D), the hinge not only delivers exceptional durability but also an attractive appearance that seamlessly integrates with modern fixtures. It includes eight mounting holes for easy installation, making it a practical choice for contractors and homeowners alike. Whether you're outfitting a commercial space or upgrading your residential doors, the Mckinney Products Company MPB68 hinge stands out as an extraordinary value in security hardware.

MacPro 5-Knuckle Hinge, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 652/US26D Satin Chrome

Our contractor grade MacPRO heavy weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges.

Features:

• For doors with a closing device, a bearing hinge must be used
• For doors with a closing device, select a MPB68
• For use on all extra heavy and/or high frequency doors
• Conforms to ANSI/BHMA 156.1, 156.7
• Contractor grade
• NRP available
• Extraordinary value
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Ball bearing

Models:

• MPB68:
• Description: MacPro heavy weight full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy Weight
• MPB99:
• Description: MacPro heavy weight full mortise five knuckle hinge
• ANSI No: A5111
• Base Material: Stainless steel
• Weight: Heavy Weight

Finishes:

• 646/US15 - Satin nickel plated, clear coated
• 652/US26D - Satin chromium plated over nickel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat

Resources

• Cut Sheet
