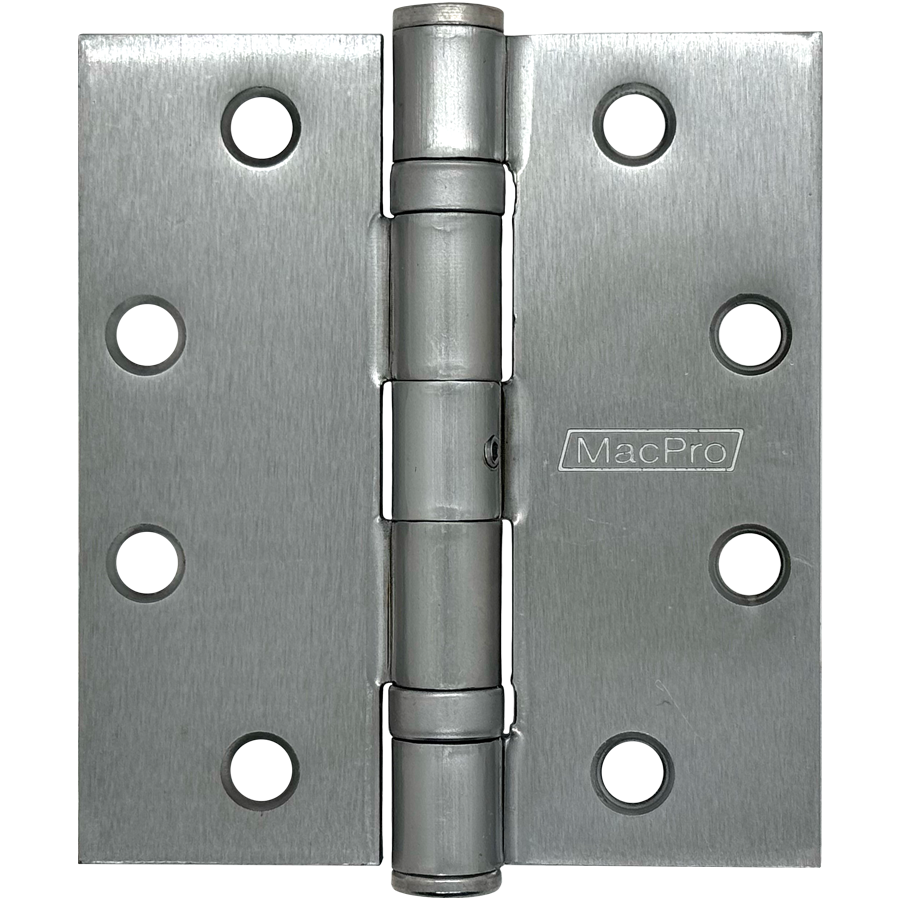

McKinney MPB79 4.5 X 4.0 US26D NRP MacPro 5-Knuckle Hinge, 4.5"x4", Steel, NRP, Satin Chrome, Standard Weight

Mckinney Products Company MPB79 4.5 X 4.0 US26D NRP MacPro 5-Knuckle Hinge is designed for those seeking a reliable and robust solution for standard weight doors. This full mortise hinge features a non-removable pin (NRP), ensuring enhanced security by preventing the hinge from being removed while the door is closed. Crafted from high-quality steel, the MPB79 measures 4.5 inches by 4.0 inches and boasts a satin chrome finish that not only adds an elegant touch but also enhances durability. Engineered to conform to ANSI/BHMA standards 156.1 and 156.7, this hinge is suitable for both metal and wood doors, making it a versatile addition to any building project. With its contractor-grade quality, it's an outstanding choice when bulk quantities are needed for large jobs. The MPB79 is also approved for NFPA 80 fire-rated openings, offering peace of mind in safety-critical applications. Compatible with hinge pin door stops, this hinge helps protect against damage to doors and walls. With eight mounting holes for easy installation, the Mckinney MPB79 4.5 X 4.0 hinge is an excellent investment for professionals looking for quality and performance in their hardware solutions.

MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.0in (4540), Steel Base, (NRP) Non-Removable Pin, 652/US26D Satin Chrome

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat

Resources

• Cut Sheet
