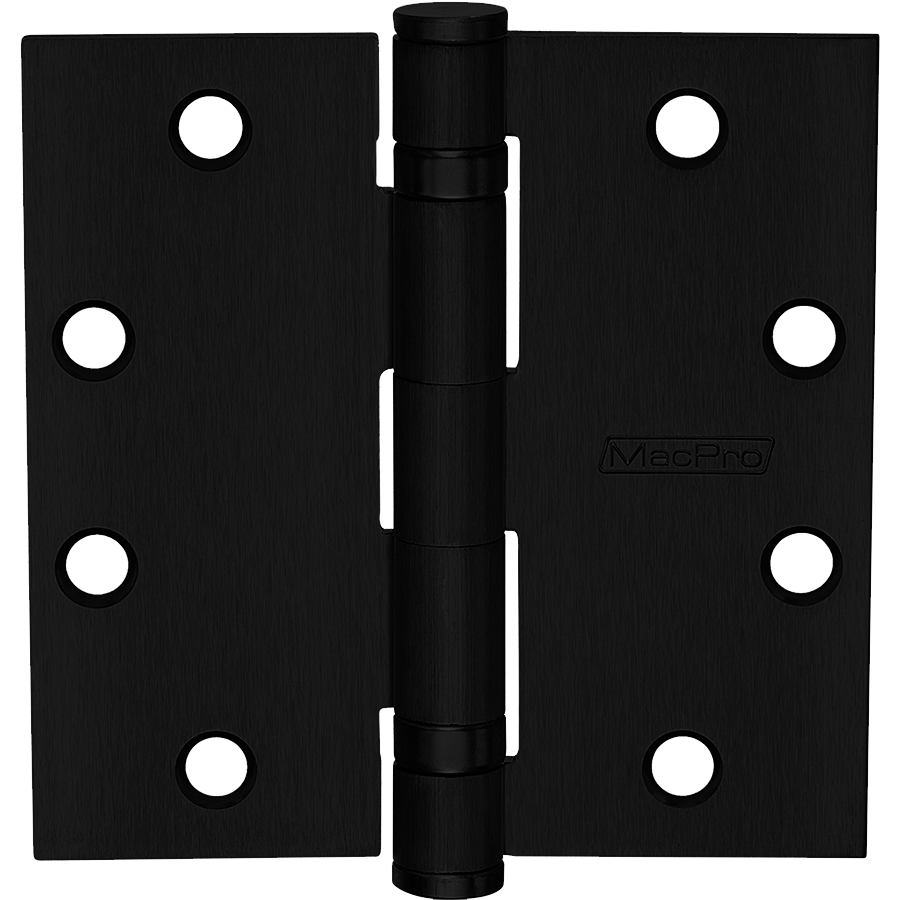

McKinney MPB79 4.5 X 4.5 BSP MacPro 5-Knuckle Hinge, 4.5in x 4.5in, Steel, Black Suede Powder Coat

Mckinney Products Company MPB79 4.5 X 4.5 BSP MacPro 5-Knuckle Hinge is an exceptional choice for those seeking a reliable and durable hinge solution. Designed for standard weight doors, this full mortise hinge features a robust steel base, ensuring long-lasting performance. The black suede powder coat finish not only enhances its aesthetic appeal but also provides additional protection against wear and tear. This hinge conforms to ANSI/BHMA standards 156.1 and 156.7, making it a dependable option for various applications. The non-removable pin (NRP) option adds an extra layer of security, preventing removal when the door is closed, which is particularly beneficial for fire-rated openings approved by NFPA 80. Additionally, the MPB79 is compatible with hinge pin door stops (models 76305 and 76307), safeguarding both doors and walls from damage. With a square corner shape and non-handed design, installation is straightforward and versatile. The MPB79 hinge is perfect for contractors needing large quantities of hinges without compromising on quality. Elevate your projects with the Mckinney Products Company MPB79 4.5 X 4.5 BSP MacPro 5-Knuckle Hinge, where durability meets exceptional value in commercial applications.

MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 622/BSP Black Suede Powder Coat

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat
