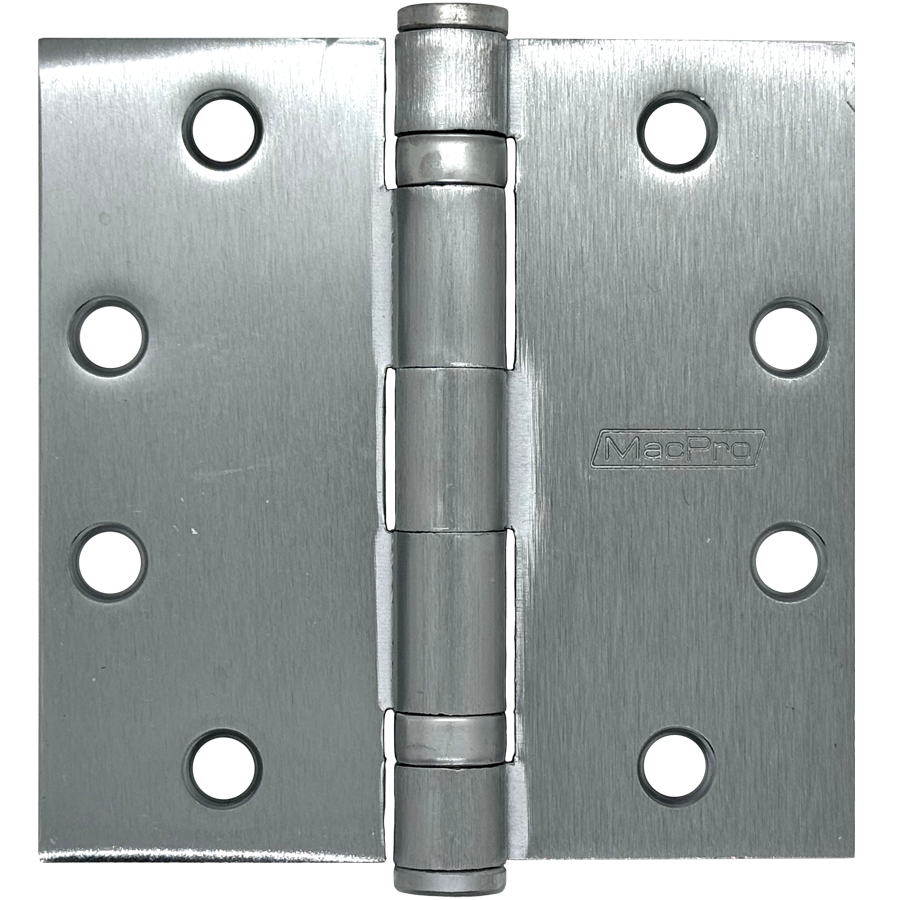

McKinney MPB79 4.5 X 4.5 US26D MacPro 5-Knuckle Hinge, Full Mortise, 4.5"x4.5", Satin Chrome, Steel Base

Mckinney Products Company MPB79 4.5 X 4.5 US26D MacPro 5-Knuckle Hinge is a reliable choice for those seeking exceptional performance in standard weight applications. Designed as a full mortise hinge, this product boasts a robust steel base and a sleek satin chrome finish that enhances both durability and aesthetic appeal. With dimensions of 4.5 inches by 4.5 inches, it is appropriately sized for a variety of metal and wood doors. The MPB79 hinge features a five-knuckle design and is equipped with ball bearings, ensuring smooth operation even in high-traffic settings. It conforms to ANSI/BHMA standards 156.1 and 156.7, providing peace of mind in terms of quality and reliability. This hinge is also approved for use in NFPA 80 fire-rated openings, making it a suitable option for safety-conscious environments. An added benefit of the MPB79 is its compatibility with 76305 and 76307 hinge pin door stops, which protect against damage to both doors and walls. Additionally, the non-removable pin (NRP) option secures the hinge in place, preventing removal when the door is closed. Ideal for contractors and builders, this hinge delivers extraordinary value, especially when large quantities are required.

MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 652/US26D Satin Chrome

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat

Resources

• Cut Sheet
