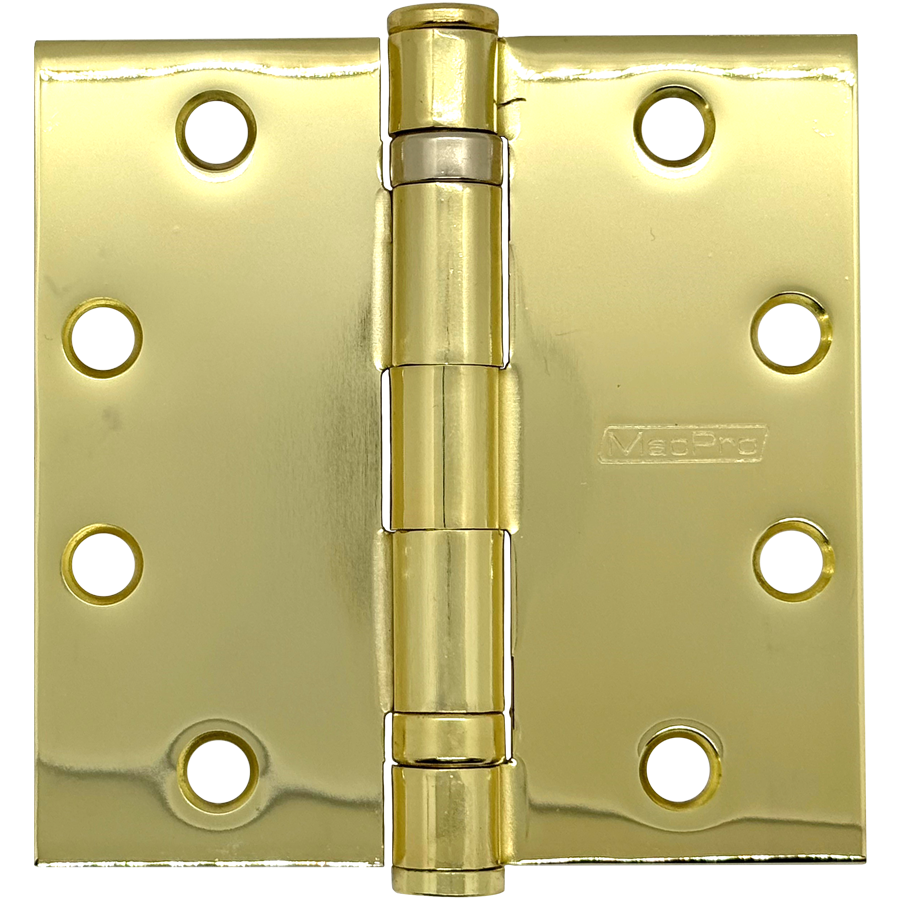

Mckinney Products Company MPB79 4.5 x 4.5 US3 MacPro 5-Knuckle Hinge offers a robust solution for both metal and wood doors, designed to meet the demanding needs of contractors and professionals alike. This standard weight, full mortise hinge features a durable steel base and is plated in bright brass for a polished finish that enhances any door's aesthetic. Conforming to ANSI/BHMA standards 156.1 and 156.7, the MPB79 is suitable for standard weight doors, making it ideal for high-traffic areas. Its non-removable pin (NRP) option ensures added security, preventing removal when the door is closed, while the hinge is also approved for NFPA 80 fire-rated openings, adding to its versatility and reliability in various applications. The hinge is designed with eight mounting holes for secure installation and boasts a square corner shape with non-handed functionality, allowing for flexible use. Compatible with hinge pin door stops like the 76305 and 76307, the MPB79 helps protect both doors and walls from damage. This hinge not only provides extraordinary value when purchasing in bulk but also guarantees the quality and performance you expect from Mckinney Products Company.

MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 632/US3 Bright Brass

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat

Resources

• Cut Sheet
