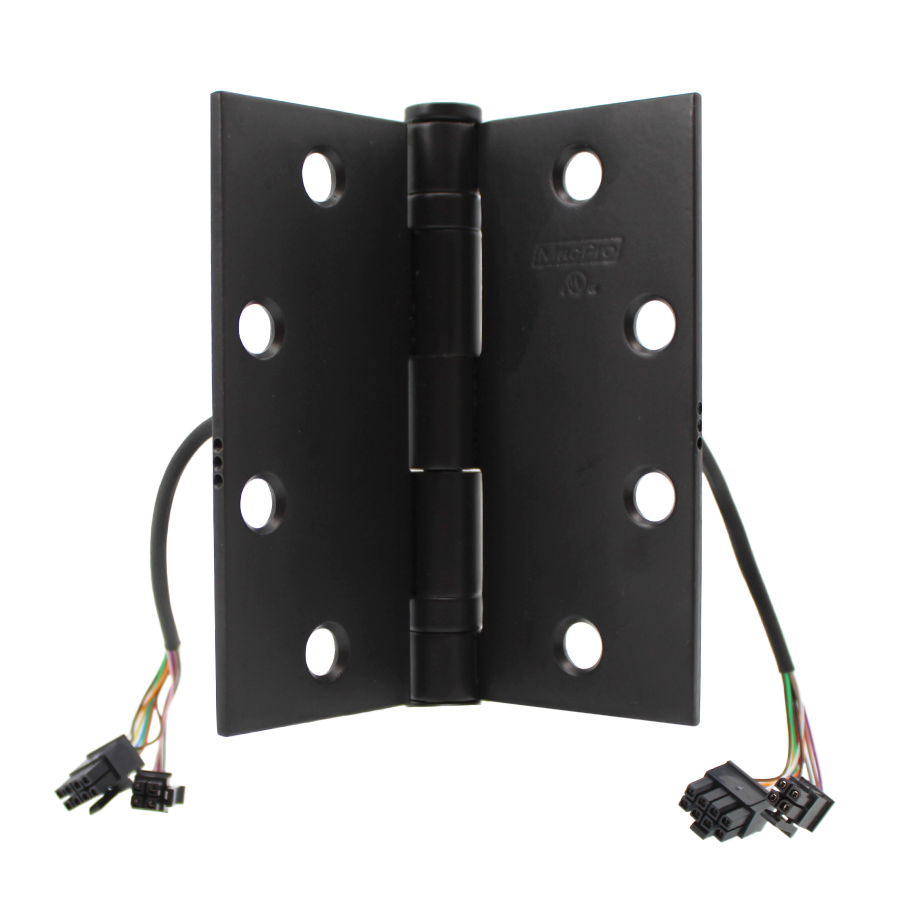

McKinney MPB79 4.5X4.5 BSP QC12 Electrified QC 12 Wire MacPro 5-Knuckle Hinge, 4.5in x 4.5in, Black Suede

Mckinney Products Company MPB79 4.5X4.5 BSP QC12 Electrified Quick Connect hinge is a highly versatile solution for standard weight doors, designed with contractor-grade quality. This full mortise five-knuckle hinge features a robust steel base and is finished in a sleek black suede powder coat, combining durability with aesthetic appeal. Engineered to conform to ANSI/BHMA standards 156.1 and 156.7, the MPB79 is also approved for NFPA 80 fire-rated openings, ensuring safety and compliance in various applications. The hinge's non-removable pin (NRP) option provides added security, preventing unauthorized removal when the door is closed, making it an ideal choice for commercial settings. Compatible with hinge pin door stops, the MPB79 protects both doors and walls from damage, enhancing the longevity of your installations. Whether you require a single hinge or are looking to outfit a larger project, this product offers extraordinary value, particularly when large quantities are needed. With a square corner shape and non-handed design, installation is straightforward and flexible. The MPB79 hinge stands out as a reliable, functional choice for professionals seeking quality and performance in their hardware selections.

Electrified Quick Connect QC 12 Wire, MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, BSP Black Suede Powder Coat

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat
