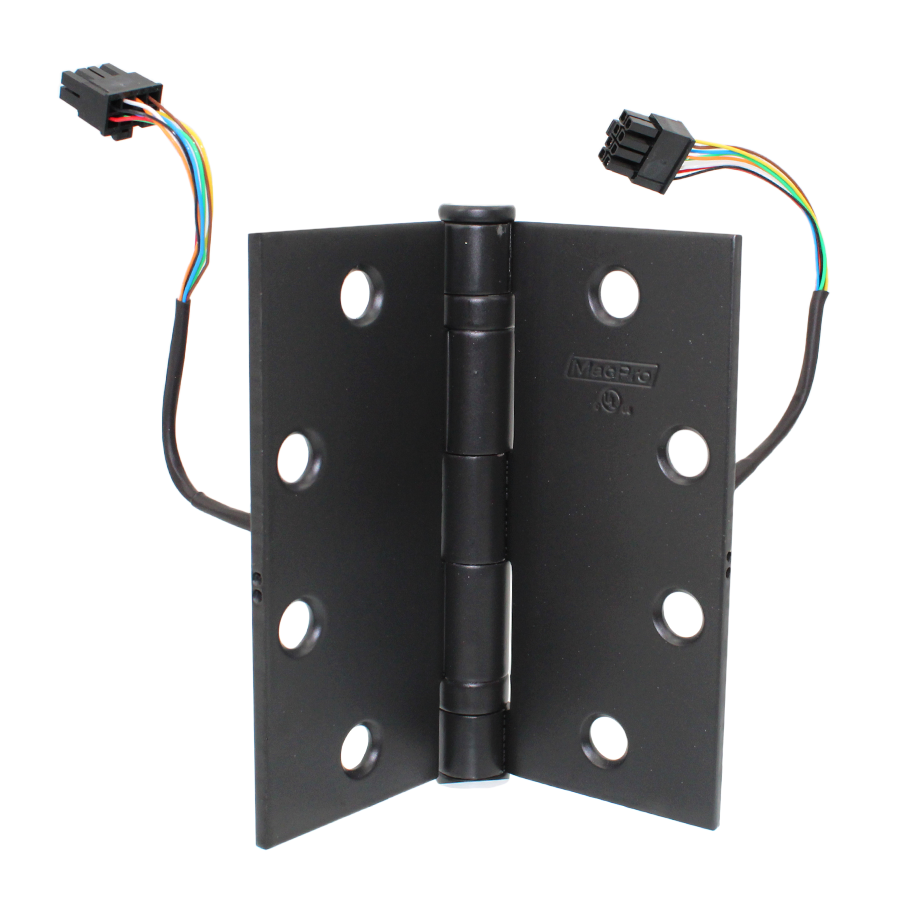

McKinney MPB79 4.5X4.5 BSP QC8 Electrified QC8 Quick Connect 8 Wire MacPro 5-Knuckle Hinge 4.5in x 4.5in

Mckinney Products Company MPB79 4.5X4.5 BSP QC8 Electrified QC8-Quick Connect 8 Wire hinge is an exceptional choice for professionals seeking reliability and performance in standard weight doors. Designed with a robust steel base and finished in a striking black suede powder coat, this full mortise five knuckle hinge ensures durability while enhancing the aesthetic of any door. Conforming to ANSI/BHMA 156.1 and 156.7 standards, the MPB79 is contractor-grade and ideal for large-scale projects requiring consistent quality. Its non-removable pin (NRP) option enhances security by preventing unauthorized removal when the door is closed, making it particularly suitable for fire-rated openings as approved by NFPA 80. This hinge is compatible with the 76305 and 76307 hinge pin door stops, providing additional protection against damage to both doors and walls. The hinge features a square corner shape and is non-handed, simplifying installation for various applications. With a standard weight construction, the MPB79 is perfect for environments that demand performance without compromising on style or functionality. Elevate your projects with Mckinney's MPB79 hinge, where quality meets value, ensuring that your installations are secure and visually appealing.

Electrified QC8-Quick Connect 8 Wire, MacPro 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, BSP Black Suede Powder Coat

Our contractor grade MacPRO standard weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges. Note: MP79 is not available in BSP, only MPB79 is available in BSP.

Features:

• For standard weight doors only, use MPB79 if door has closing device
• Conforms to ANSI/BHMA 156.1, 156.7
• NRP option available
• MPB79 approved for NFPA 80 fire-rated openings
• Extraordinary value, ideal when you need large quantities of hinges
• Contractor grade
• Compatible with 76305 and 76307 hinge pin door stops, which protect against damage to doors and walls
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MP79:
• Description: MacPro standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard Weight
• MPB79:
• Description: MacPro standard weight bearing full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard Weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 640/US10B - Oxidized satin bronze plated over copper plate, oil rubbed
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat
