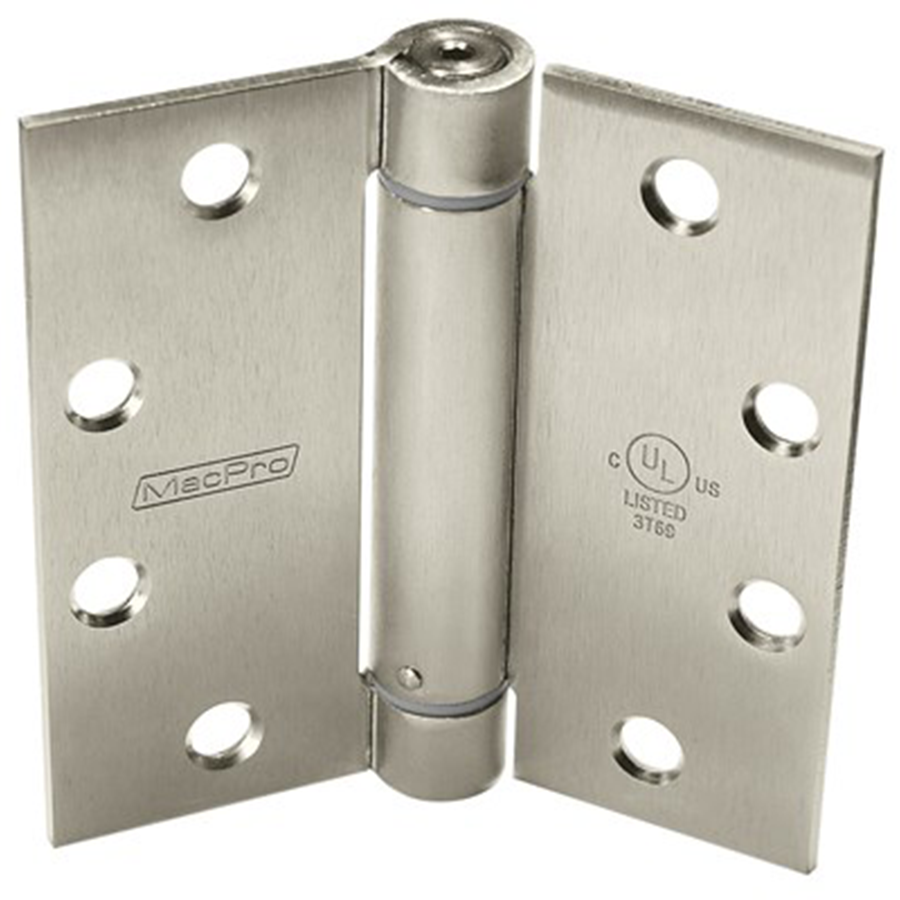

McKinney MPS60 4.5 X 4.5 US15 SPRING MacPro 4.5" Single Acting Spring Hinge, Standard Weight, Satin Nickel

Mckinney Products Company MPS60 4.5 X 4.5 US15 SPRING MacPro Single Acting Spring Hinge combines functionality with robust construction, making it an ideal option for various applications such as apartments, hotels, dormitories, and office buildings. This contractor-grade hinge is designed for standard weight hinge applications, offering self-closing control that eliminates the need to pull the door shut manually. Crafted from durable steel with a satin nickel finish (619/US15), this full mortise hinge measures 4.5 inches by 4.5 inches, ensuring a seamless fit for your doors. It features a non-handed design, allowing for easy installation regardless of door orientation. The MPS60 complies with ANSI/BHMA 156.1, 156.7, and 156.17 standards, emphasizing its reliability and safety. The MPS679 configuration helps prevent excessive tension on self-closing doors, while the UL listing ensures high-quality performance. This hinge is particularly beneficial in conserving energy by preventing doors from being accidentally left open, which can lead to increased heating and cooling costs. For hands-free operation, it can be paired with a Rockwood hands-free door pull, enhancing convenience in any setting. The MPS60 is sold in sets of three, making it a practical choice for projects requiring multiple hinges.

MacPro Single Acting Spring Hinge, Standard Weight, Full Mortise, 4.5in x 4.5in (4545), Steel Base, 619/US15 Satin Nickel

Our contractor grade MacPro adjustable spring hinges are best utilized as a door closing device alternative and are ideal for retrofit applications in apartments, hotels, dormitories, and office buildings.

Features:

• For standard weight hinge applications requiring self-closing control
• Retrofittable
• Contractor grade
• Alternative to door closing device
• NFPA requires a minimum of two hinges on labeled doors
• MPS679 configuration prevents adding too much tension to self-closing doors
• Conforms to ANSI/BHMA 156.1, 156.7, 156.17
• Self-closing eliminates the need to pull the door shut
• UL Listed - MPS60
• Hands-free application when used in conjunction with a Rockwood hands-free door pull
• MPS679 - Set of two MPS60 spring hinges and one MPB79 full mortise butt hinge MPS60 - Set of three per box
• Prevents door from being accidentally left open, saving on heating and cooling costs

Specifications:

• Corner Shape: Square
• Handing: Non-handed

Models:

• MPS60:
• Description: MacPro adjustable spring hinge
• Base Material: Steel
• Weight: Standard weight
• MPS679:
• Description: MacPro adjustable spring hinge
• Base Material: Steel
• Weight: Standard weight

Finishes:

• 646/US15 - Satin nickel plated, clear coated
• 652/US26D - Satin chromium plated over nickel
• BSP - Black suede powder coat
