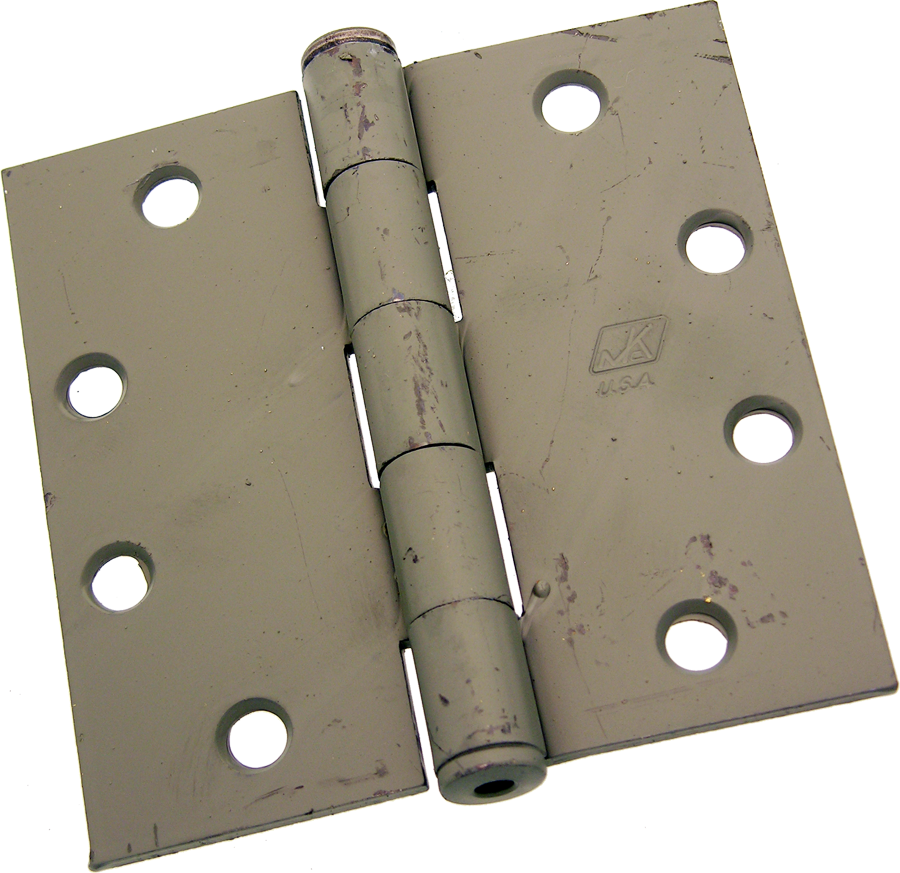

McKinney T2714 4.5 X 4.5 USP 5-Knuckle Hinge, Standard Weight, 4.5in x 4.5in, Steel Base, 600/USP Prime Coat

Mckinney Products Company T2714 4.5 X 4.5 USP 5-Knuckle Hinge is a standard weight, full mortise hinge designed for reliable performance in low-frequency door applications. Crafted from durable steel, this hinge offers a plain bearing mechanism that ensures smooth operation and longevity. With dimensions of 4.5 inches by 4.5 inches, it is suitable for both metal and wood doors, making it a versatile choice for various projects. This hinge features eight mounting holes for easy installation and is non-handed, allowing for flexible use in different configurations. The T2714 is available in multiple finishes, including a 600/USP prime coat that is perfect for painting, allowing you to match it seamlessly to your décor. For enhanced functionality, it is compatible with hinge pin door stops to prevent damage to your doors and walls. Optional features such as a non-removable pin (NRP) and safety stud feature (SSF) further enhance security, while the sloped angle hospital tip option deters unauthorized hanging of objects. Reliable and aesthetically pleasing, the Mckinney T2714 hinge is an excellent choice for professionals seeking top-quality hardware that stands the test of time.

5-Knuckle Hinge, Standard Weight, Full Mortise, Plain Bearing, 4.5in x 4.5in (4545), Steel Base, 600/USP Prime Coat for Painting

The T2314 (stainless steel) and T2714 (steel) five knuckle full mortise plain bearing hinges are recommended for low frequency doors.

Features:

• For common flush door/frame/wall application
• Available on the QuickShip program
• For low frequency doors
• Dependable and long-lasting
• Where doors are beveled edge on hinge side, specify T4314 or T4714
• Compatible with the hinge pin door stop, which protects against damage to doors and walls
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Ball, steeple, and hospital tips available
• Decorative tips add aesthetic appeal to the opening

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Plain bearing

Models:

• T2314:
• Description: Standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A5133
• Base Material: Stainless steel
• Weight: Standard weight
• T2714:
• Description: Standard weight plain bearing full mortise five knuckle hinge
• ANSI No: A8133
• Base Material: Steel
• Weight: Standard weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat

Resources

• Cut Sheet
