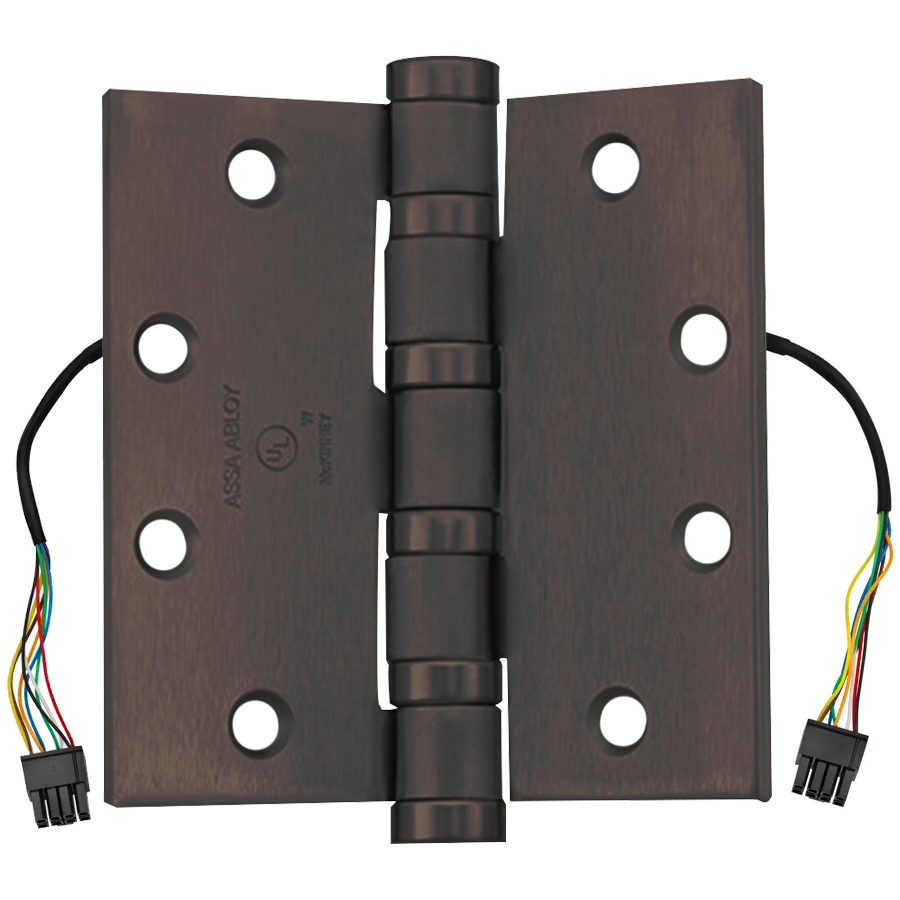

McKinney T4A3386 4.5 X 4.5 US10B QC8 QC Electrified 8 Wire Hinge, 5-Knuckle, 4.5in x 4.5in, Dark Bronze

Mckinney Products Company T4A3386 4.5 X 4.5 US10B QC8 Quick Connect Electrified Hinge is engineered for high-frequency and heavy doors, making it an ideal choice for public buildings with significant traffic. This heavy-weight hinge features a robust five-knuckle design and is constructed from non-ferrous materials, ensuring durability and longevity. The T4A3386 hinge is equipped with a full mortise configuration and ball-bearing structure, which enhances its performance under continuous use. The quick-connect electrification allows for seamless integration of locking hardware and access control systems, making it a versatile solution for modern security needs. Furthermore, the hinge's design includes a dark bronze finish (613/US10B) that adds an appealing aesthetic to any doorway. Noteworthy features include an option for a non-removable pin (NRP), which secures the hinge in place when the door is closed, and a safety stud that interlocks the leaves, preventing door removal even if the pin is compromised. With magnetic monitoring capabilities and multiple bearing choices, the T4A3386 ensures reliable operation while enhancing the security of your space. Whether you’re looking for style or functionality, this hinge is built to meet the demands of sophisticated environments.

Quick Connect Electrified (QC) 8 Wire Hinge, 5-Knuckle, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Non-Ferrous Base, 613/US10B Dark Bronze

The T4A3386 (stainless steel) and T4A3786 (steel) heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features:

• Heavy weight - for use on all extra heavy and/or high frequency doors
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled on hinge side, specify T4A4386 or T4A4786
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Hospital, ball, flat, and steeple tips available. FT tips not offered on 6" and 8" sizes, BT and ST not offered on 8" sizes
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
• Multiple bearing choices provided
• Safety stud option interlocks to leaves together, preventing removal of door even if pin is removed
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Magnetic monitoring permits field replacement of magnet and switch
• 6" x 5" and 6" x 6" Specify T4B3386 or T4B3786
• 8" X 6" and 8" x 8" have six bearings. Specify T6B3386 or T6B3786

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• T4A3786:
• Description: Heavy weight wide throw full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy weight
• T4A3386:
• Description: Heavy weight full mortise five knuckle hinge
• ANSI No: A5111, A2111
• Base Material: Stainless steel
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat

Features

• Heavy weight hinges should be used on all extra heavy doors or those exposed to high frequency use
• T4A3386- Stainless steel base
• T4A3786- Steel base material
• For Beveled Edge, where doors are beveled on hinge side, specify T4A4386 or T4A4786
