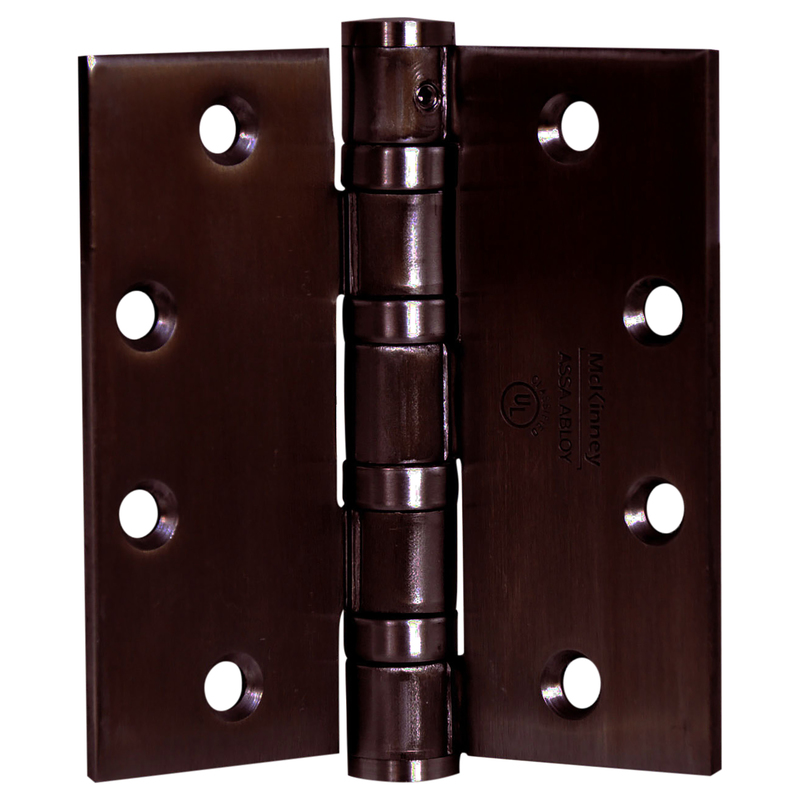

McKinney T4A3786 4-1/2X4-1/2 10B QC12 Heavy-Duty Electric Hinge

McKinney T4A3786 4-1/2X4-1/2 10B QC12 Heavy Weight Hinge - Electric combines robust construction with advanced technology to enhance your door security. Designed as a full mortise hinge, this heavy-weight option measures 4-1/2" by 4-1/2" and features a square corner design that ensures a seamless installation in commercial settings. Constructed from durable steel, the hinge is finished in a dark oxidized satin bronze oil-rubbed style (613/US10B), adding both strength and an elegant touch to any door. The 5-knuckle design provides enhanced stability, making it ideal for high-traffic environments. What sets the McKinney T4A3786 apart is its integration into modern access control systems. It features a 12-wire ElectroLynx connector, allowing for quick and effortless installation via convenient Molex connectors. This hinge not only supports traditional wired connections with both 28 gauge and 18 gauge wires but also addresses contemporary needs for remote monitoring and security. With a weight classification of heavy and a focus on commercial installation, this hinge is perfect for professionals looking for reliable performance and security. Elevate your door hardware with the McKinney T4A3786, designed to meet the demands of today’s security applications.

Heavy Weight Hinge - Electric

Full Mortise Hinge, 5-Knuckle, Heavy Weight, 4-1/2" by 4-1/2", Square Corner, 12-Wire, ElectroLynx Connector, Dark Oxidized Satin Bronze Oil Rubbed Finish

To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.
