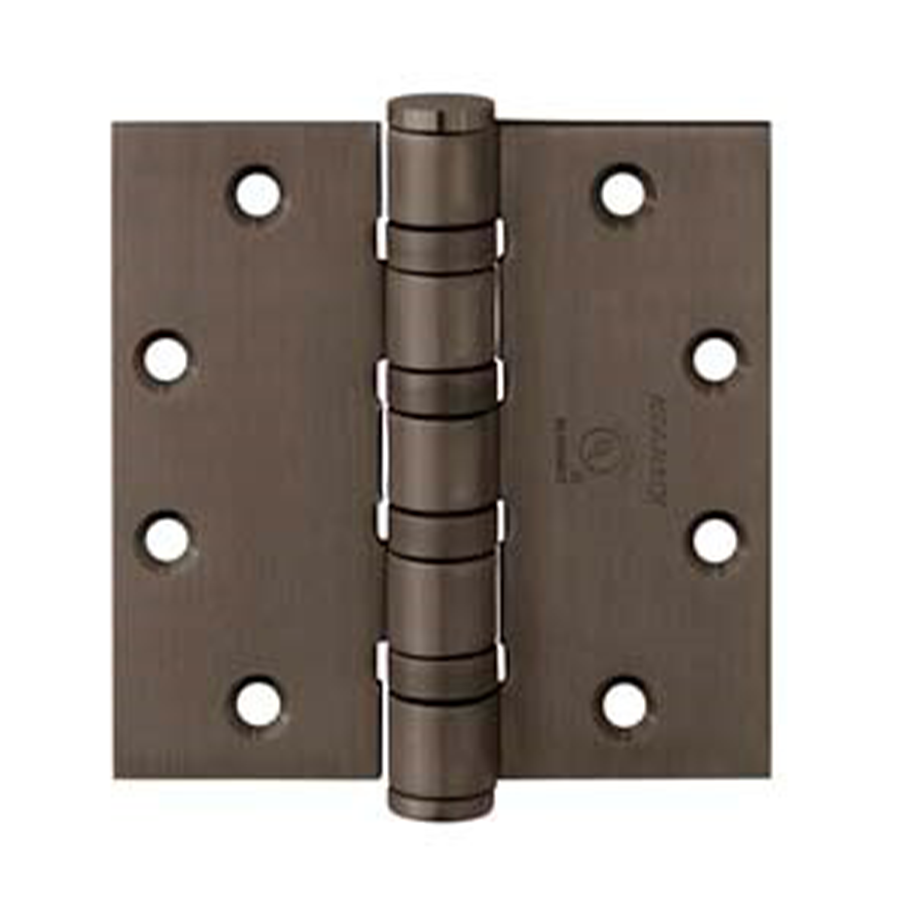

McKinney T4A3786 4.5 X 4.5 US10B NRP 5-Knuckle Heavy Weight Full Mortise Hinge 4.5"x4.5" Steel NRP Dark Bronze

Mckinney Products Company T4A3786 4.5 X 4.5 US10B NRP 5-Knuckle Hinge is designed for heavy-duty applications, making it the ideal choice for high-frequency wood or metal doors in public buildings. With a robust steel base and a dark bronze finish (613/US10B), this heavy weight hinge ensures durability and reliability in demanding environments. The T4A3786 features a non-removable pin (NRP) option, which provides added security by preventing the hinge from being removed when the door is closed. This hinge also boasts decorative tips, elevating the aesthetic appeal of any doorway. Its square corner shape and non-handed design allow for versatile installation, while the oil-impregnated bearings contribute to smooth operation over time. Perfect for institutions where safety is paramount, the hinge is available with various tip options, including hospital tips that discourage unauthorized hanging. Additionally, electrified hinge options are offered, allowing for integration with access control systems while maintaining a sleek appearance by concealing wiring. This heavy weight hinge is a reliable solution for commercial settings, ensuring that your doors function seamlessly while providing the necessary security. Choose the Mckinney T4A3786 for a combination of strength, functionality, and style in your next project.

5-Knuckle Hinge, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, (NRP) Non-Removable Pin, 613/US10B Dark Bronze

The T4A3386 (stainless steel) and T4A3786 (steel) heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features:

• Heavy weight - for use on all extra heavy and/or high frequency doors
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled on hinge side, specify T4A4386 or T4A4786
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Hospital, ball, flat, and steeple tips available. FT tips not offered on 6" and 8" sizes, BT and ST not offered on 8" sizes
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
• Multiple bearing choices provided
• Safety stud option interlocks to leaves together, preventing removal of door even if pin is removed
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Magnetic monitoring permits field replacement of magnet and switch
• 6" x 5" and 6" x 6" Specify T4B3386 or T4B3786
• 8" X 6" and 8" x 8" have six bearings. Specify T6B3386 or T6B3786

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• T4A3786:
• Description: Heavy weight wide throw full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy weight
• T4A3386:
• Description: Heavy weight full mortise five knuckle hinge
• ANSI No: A5111, A2111
• Base Material: Stainless steel
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
