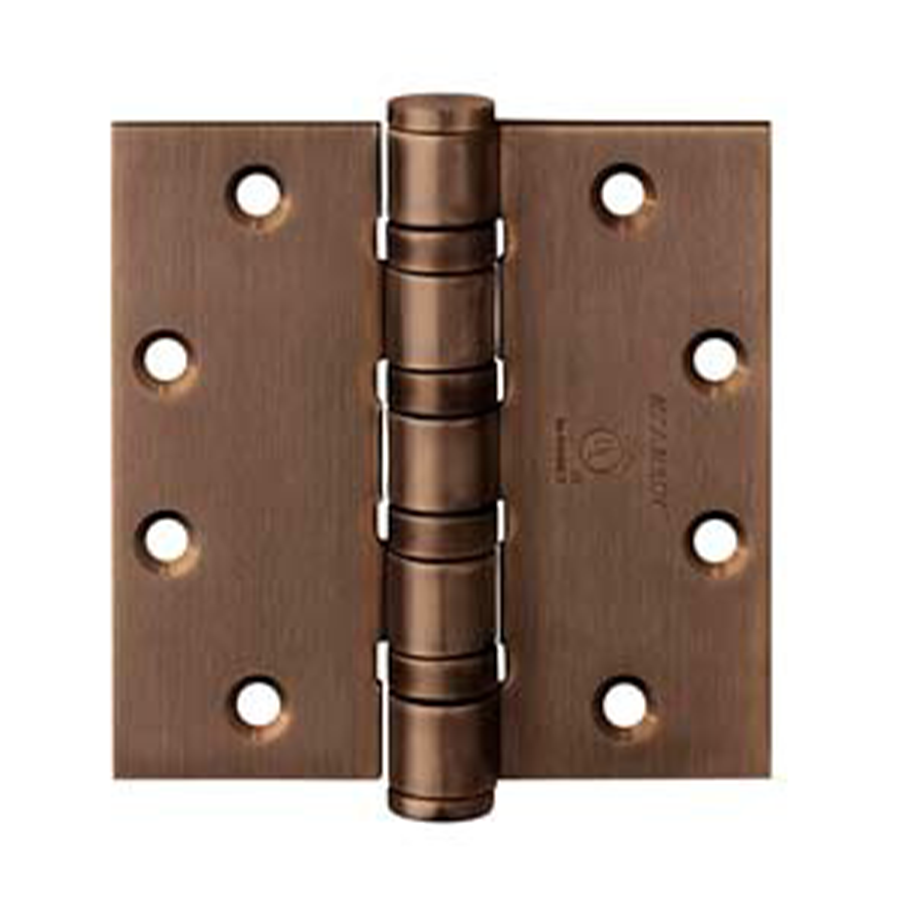

McKinney T4A3786 4.5 X 4.5 US10BE NRP 5-Knuckle Heavy Weight Full Mortise Hinge, 4.5in, NRP, Oil Rubbed Bronze

Mckinney Products Company T4A3786 4.5 X 4.5 US10BE NRP 5-Knuckle Hinge is engineered for durability and functionality, making it an ideal choice for high-traffic public buildings. This heavy-weight, full mortise hinge measures 4.5 inches by 4.5 inches and features five knuckles, ensuring superior strength for extra heavy and high-frequency doors, whether they are made of wood or metal. Constructed from ferrous steel, the T4A3786 hinge is designed with a non-removable pin (NRP) option, which secures the hinge in place, preventing unauthorized removal when the door is closed. Its oil-impregnated bearing type enhances performance and longevity, allowing for smooth operation even under demanding conditions. The decorative tips not only add an aesthetic touch but also contribute to the overall functionality. Options, such as electrified versions, provide enhanced security and ease of access control. Additionally, the hinge is available in a sophisticated oil-rubbed bronze finish (613E/US10BE), seamlessly blending with various architectural styles. With its square corner shape and non-handed design, the T4A3786 is versatile for a range of installations. Trust Mckinney Products Company to deliver exceptional quality and reliability in your security hardware solutions.

5-Knuckle Hinge, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Ferrous Steel Base, (NRP) Non-Removable Pin, 613E/US10BE Oil Rubbed Bronze

The T4A3386 (stainless steel) and T4A3786 (steel) heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features:

• Heavy weight - for use on all extra heavy and/or high frequency doors
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled on hinge side, specify T4A4386 or T4A4786
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Hospital, ball, flat, and steeple tips available. FT tips not offered on 6" and 8" sizes, BT and ST not offered on 8" sizes
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
• Multiple bearing choices provided
• Safety stud option interlocks to leaves together, preventing removal of door even if pin is removed
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Magnetic monitoring permits field replacement of magnet and switch
• 6" x 5" and 6" x 6" Specify T4B3386 or T4B3786
• 8" X 6" and 8" x 8" have six bearings. Specify T6B3386 or T6B3786

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• T4A3786:
• Description: Heavy weight wide throw full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy weight
• T4A3386:
• Description: Heavy weight full mortise five knuckle hinge
• ANSI No: A5111, A2111
• Base Material: Stainless steel
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
