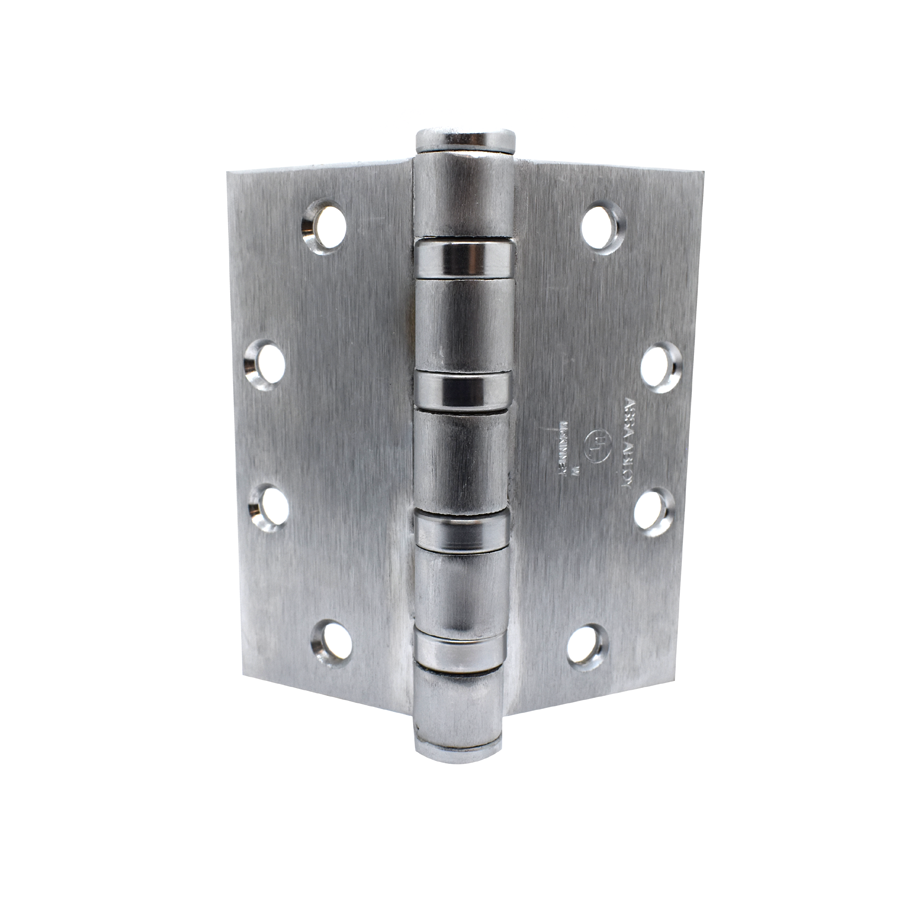

McKinney T4A3786 4.5 X 4.5 US26D QC12 QC Electrified 12 Wire 5-Knuckle Hinge, 4.5in x 4.5in, Satin Chrome

Mckinney Products Company T4A3786 4.5 X 4.5 US26D QC12 Quick Connect Electrified Hinge is engineered to provide exceptional security and functionality for high-traffic areas, making it an ideal choice for public buildings with heavy wood or metal doors. This heavy-weight, full mortise hinge features a robust five-knuckle design and ball bearings, ensuring smooth operation even under demanding conditions. The T4A3786 hinge is crafted from durable steel and comes finished in a sleek satin chrome (652/US26D) that enhances any door aesthetic. Its electrified capabilities allow for seamless integration with locking hardware and access control systems, minimizing tampering risks thanks to the absence of external wires. The quick connect 12-wire configuration simplifies installation while maintaining a secure connection. With non-removable pin (NRP) and safety stud options available, this hinge ensures that your doors remain securely in place and resistant to unauthorized removal. The hinge is non-handed, features an oil-impregnated bearing type, and is designed to accommodate beveled doors with optional sloped tips to deter object hanging. Upgrade your security infrastructure with the Mckinney T4A3786 hinge, where strength meets innovation for reliable performance in any setting.

Quick Connect Electrified (QC) 12 Wire Hinge, 5-Knuckle, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 8 4 Pin Connector, 652/US26D Satin Chrome

The T4A3386 (stainless steel) and T4A3786 (steel) heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features:

• Heavy weight - for use on all extra heavy and/or high frequency doors
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled on hinge side, specify T4A4386 or T4A4786
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Hospital, ball, flat, and steeple tips available. FT tips not offered on 6" and 8" sizes, BT and ST not offered on 8" sizes

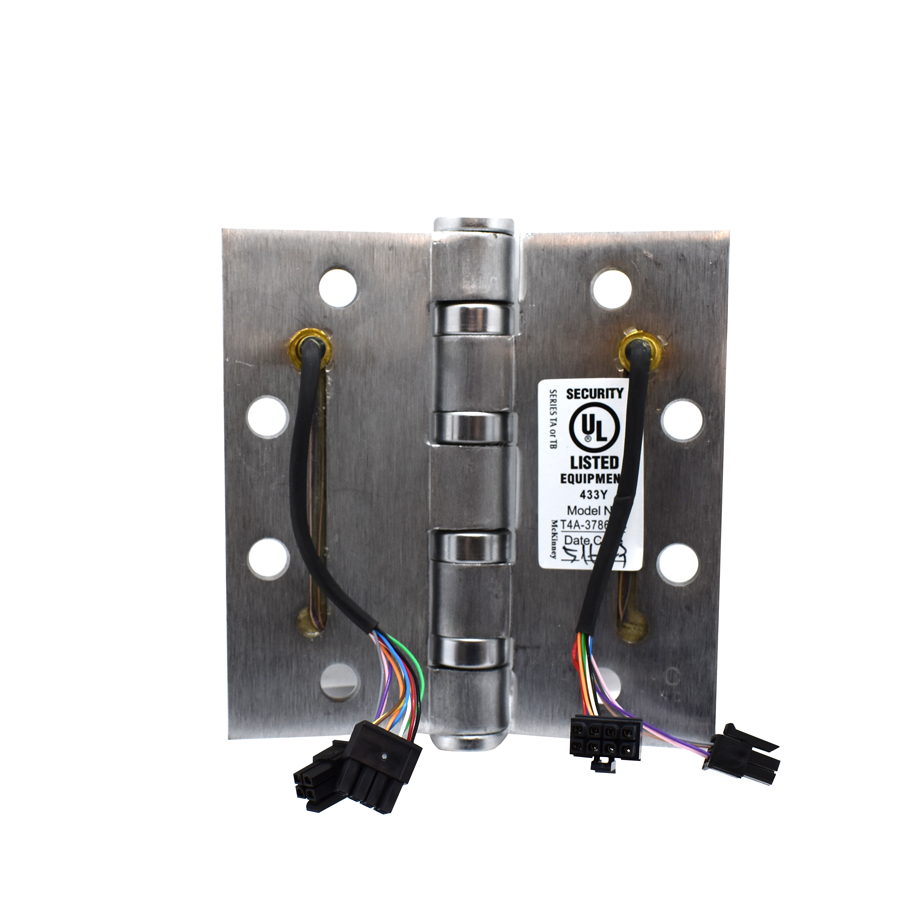

• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
• Multiple bearing choices provided
• Safety stud option interlocks to leaves together, preventing removal of door even if pin is removed
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Magnetic monitoring permits field replacement of magnet and switch
• 6" x 5" and 6" x 6" Specify T4B3386 or T4B3786
• 8" X 6" and 8" x 8" have six bearings. Specify T6B3386 or T6B3786

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• T4A3786:
• Description: Heavy weight wide throw full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy weight
• T4A3386:
• Description: Heavy weight full mortise five knuckle hinge
• ANSI No: A5111, A2111
• Base Material: Stainless steel
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
