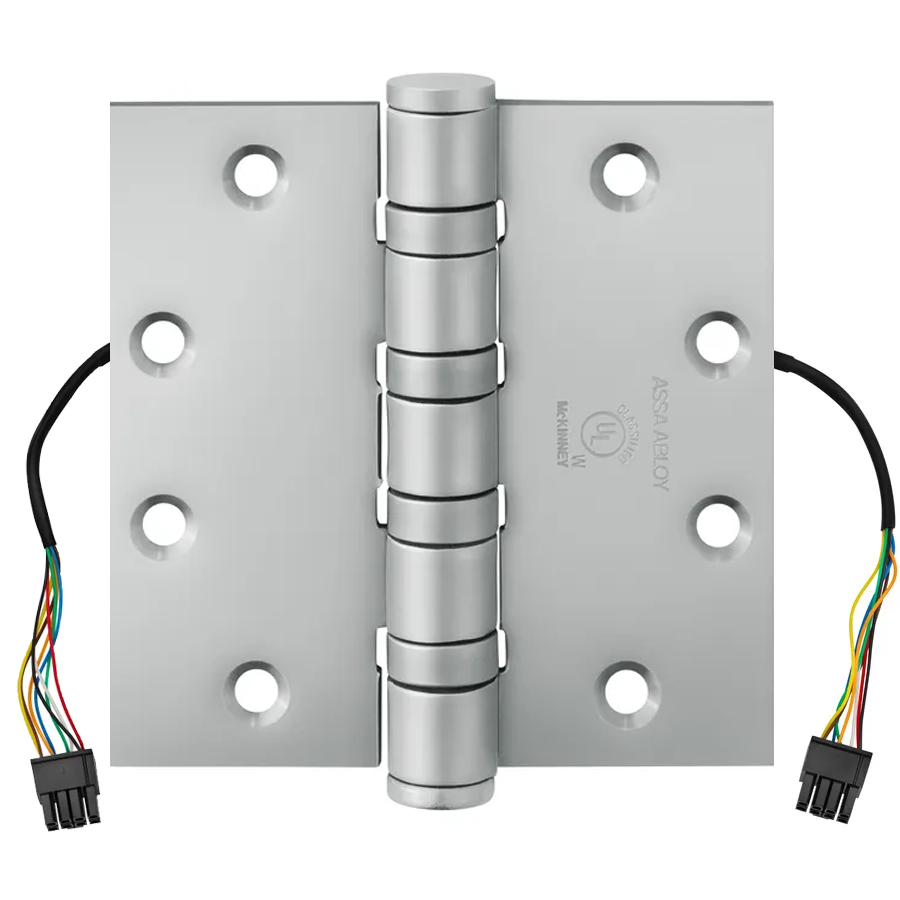

Mckinney Products Company T4A3786 4.5 x 4.5 US26D QC8 Quick Connect Electrified Hinge combines durability and advanced technology to meet the demands of high-traffic environments. This heavy-weight, full mortise, five-knuckle hinge is designed specifically for use on heavy wood or metal doors, making it ideal for public buildings where reliability is paramount. The T4A3786 features a robust steel base with a satin chrome finish (652/US26D), offering both aesthetic appeal and resilience. Its electrified design allows for secure powering of locking hardware and access control systems, with quick connect options that streamline installation. The hinge's non-removable pin option adds an extra layer of security, ensuring it remains firmly in place, while the safety stud feature interlocks the leaves together, preventing door removal even if the pin is taken out. Engineered to handle high frequency use, this hinge boasts oil-impregnated bearings for smooth operation. The decorative tips enhance the overall look, while the hospital tip option helps deter unauthorized hanging. With versatile applications and multiple bearing choices, the T4A3786 is an essential component for enhancing both security and functionality in any facility.

Quick Connect Electrified (QC) 8 Wire Hinge, 5-Knuckle Hinge, Heavy Weight, Full Mortise, Ball Bearing, 4.5in x 4.5in (4545), Steel Base, 652/US26D Satin Chrome

The T4A3386 (stainless steel) and T4A3786 (steel) heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features:

• Heavy weight - for use on all extra heavy and/or high frequency doors
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled on hinge side, specify T4A4386 or T4A4786
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Hospital, ball, flat, and steeple tips available. FT tips not offered on 6" and 8" sizes, BT and ST not offered on 8" sizes
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Non-removable pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
• Multiple bearing choices provided
• Safety stud option interlocks to leaves together, preventing removal of door even if pin is removed
• Optional non-removable pin (NRP) and safety stud feature (SSF)
• Magnetic monitoring permits field replacement of magnet and switch
• 6" x 5" and 6" x 6" Specify T4B3386 or T4B3786
• 8" X 6" and 8" x 8" have six bearings. Specify T6B3386 or T6B3786

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• T4A3786:
• Description: Heavy weight wide throw full mortise five knuckle hinge
• ANSI No: A8111
• Base Material: Steel
• Weight: Heavy weight
• T4A3386:
• Description: Heavy weight full mortise five knuckle hinge
• ANSI No: A5111, A2111
• Base Material: Stainless steel
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
